CFS125 Linear Direct Drive Motor

CFS125 Linear Direct Drive Motor

Features

  • Iron Core Technology
  • Low Cogging Torque
  • High Acceleration
  • Economical

Applicable Industries

Display Panel Industry Solar PV Industry Lithium Battery New Energy Industry SMT Industry Healthcare Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Online Conversation
Movers order number rules
CFS
Series
  • CFS
125
Armature Width
  • 035: 35mm 045: 45mm
  • 055: 55mm 065: 65mm
  • 075: 75mm 095: 95mm
  • 125: 125mm
A
Armature Length
  • A: 87.1mm D: 281.5mm
  • B: 151.9mm E: 346.3mm
  • C: 216.7mm F: 411.1mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
L05
Armature lead
  • L05:0.5m lead(4x20AWG)，
    with 16M-4K connector
  • LF05:0.5m lead(4x16AWG),
    with WS20J4ZQ connector
Stator Order No.
MFS
Series
  • MFS
125
Stator Width
  • 125: 120mm
L128
Stator Length
  • L128: 128mm
  • L192: 192mm
Motor ModelLength (LC)WidthHeightAZMagnetic Pole PitchMass
UnitmmmmmmPCSPCSmmkg/m
MFS125-L1281281209.514327.1
MFS125-L1921921209.526327.1
Parameter configuration
Product ModelCFS125ACFS125BCFS125CCFS125DCFS125ECFS125F
Armature Length(mm)87.1151.9216.7281.5346.3411.1
Continuous Thrust(N)22044166188211021322
Peak Thrust(N)51710361552207125873104

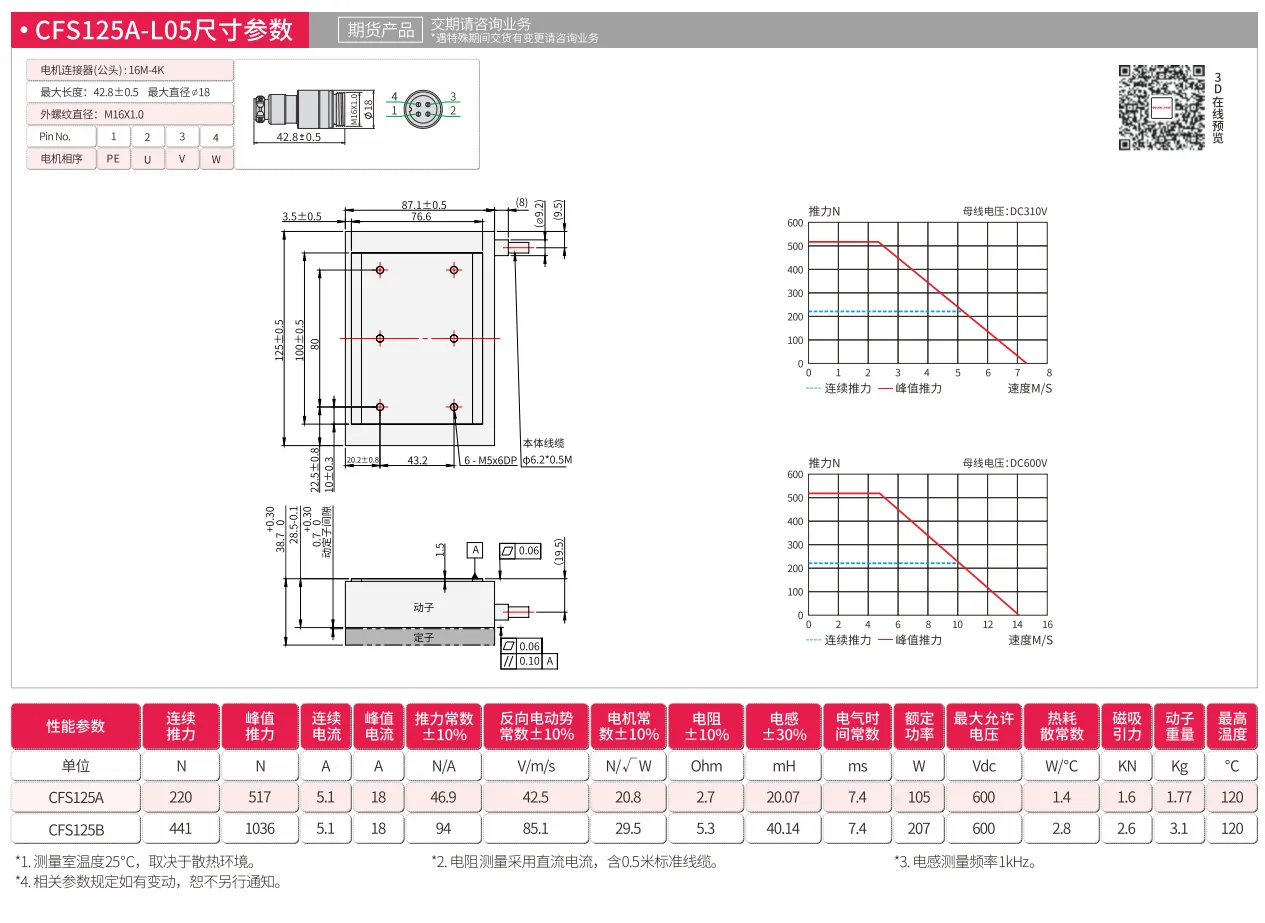

CFS125A

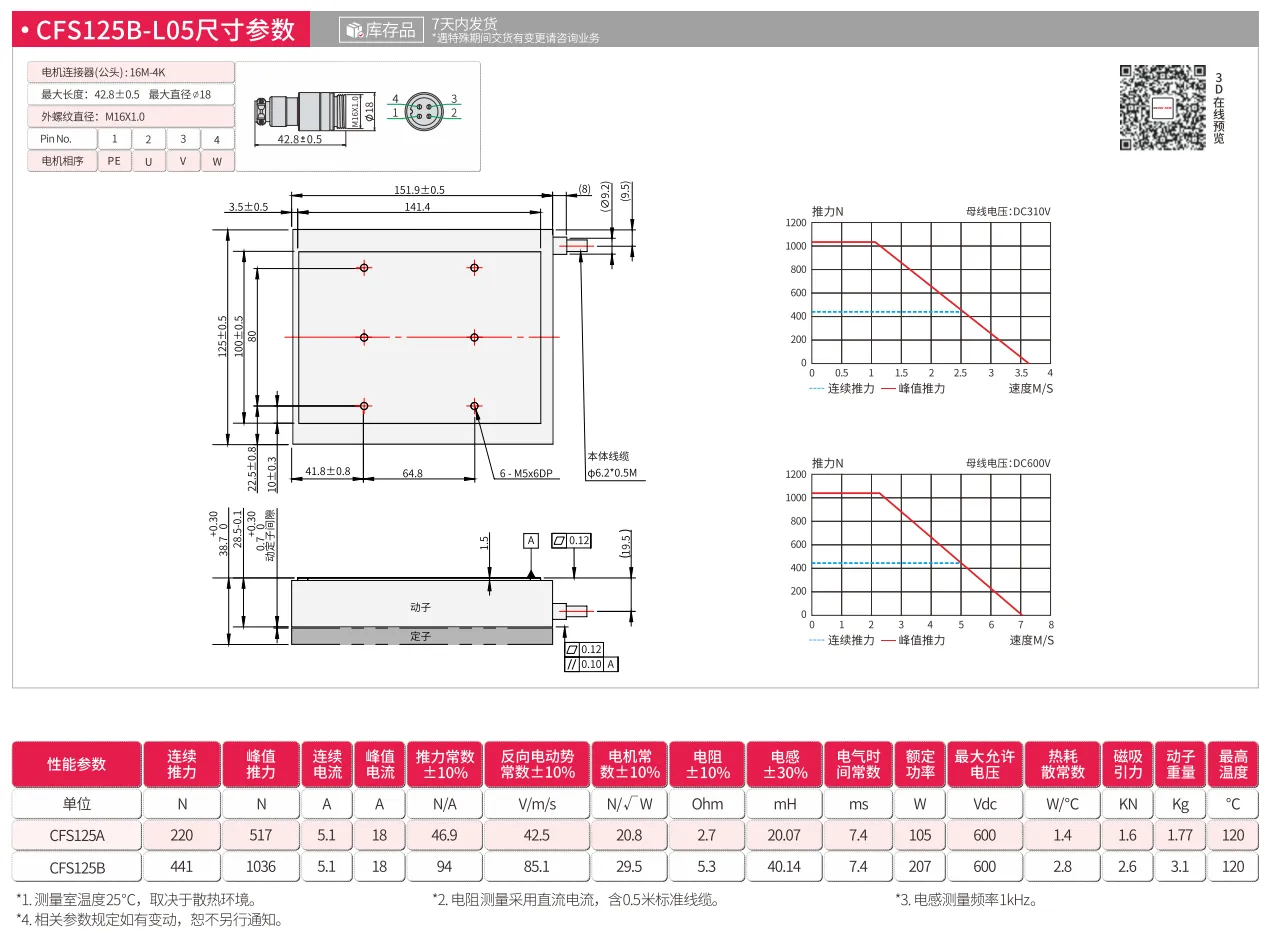

CFS125B

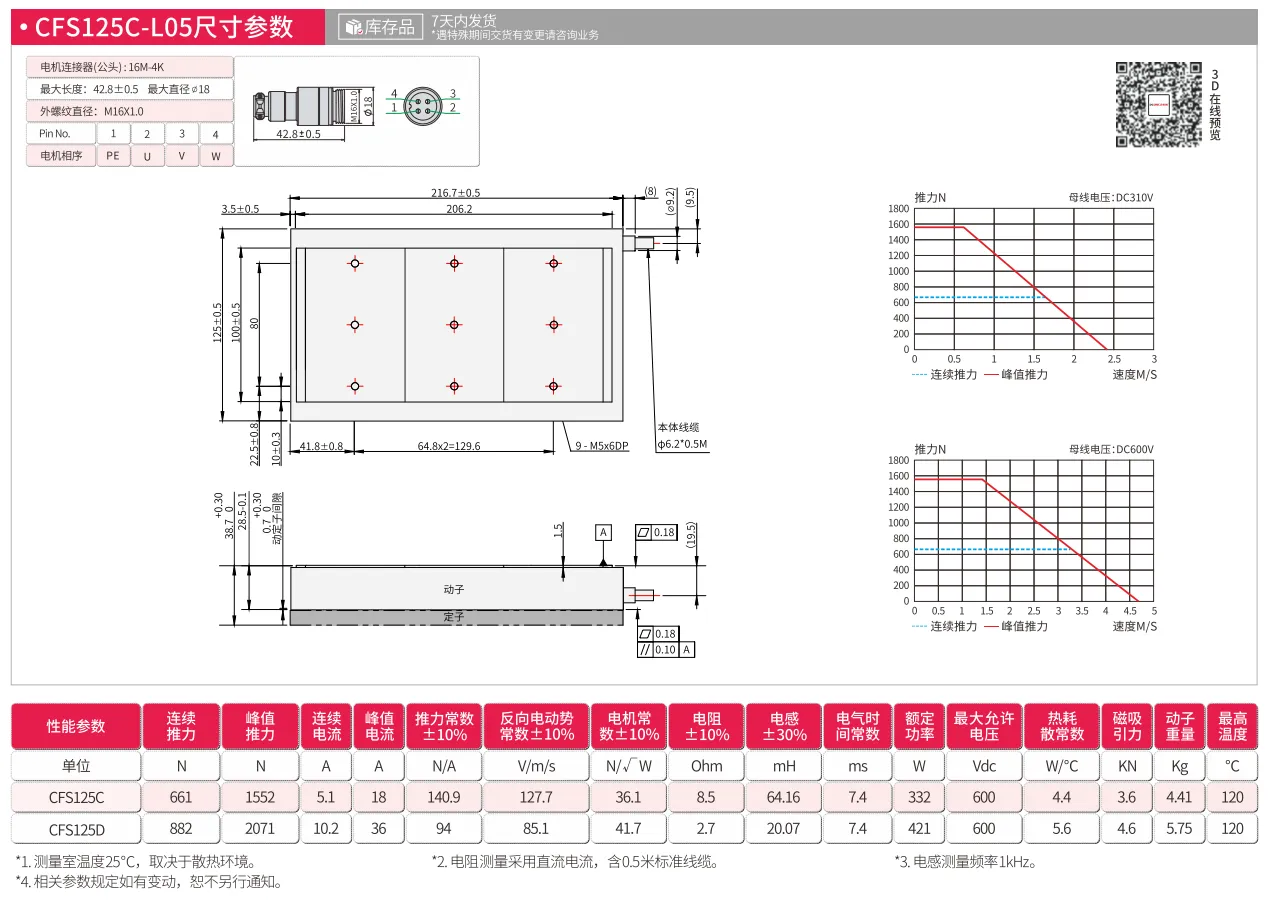

CFS125C

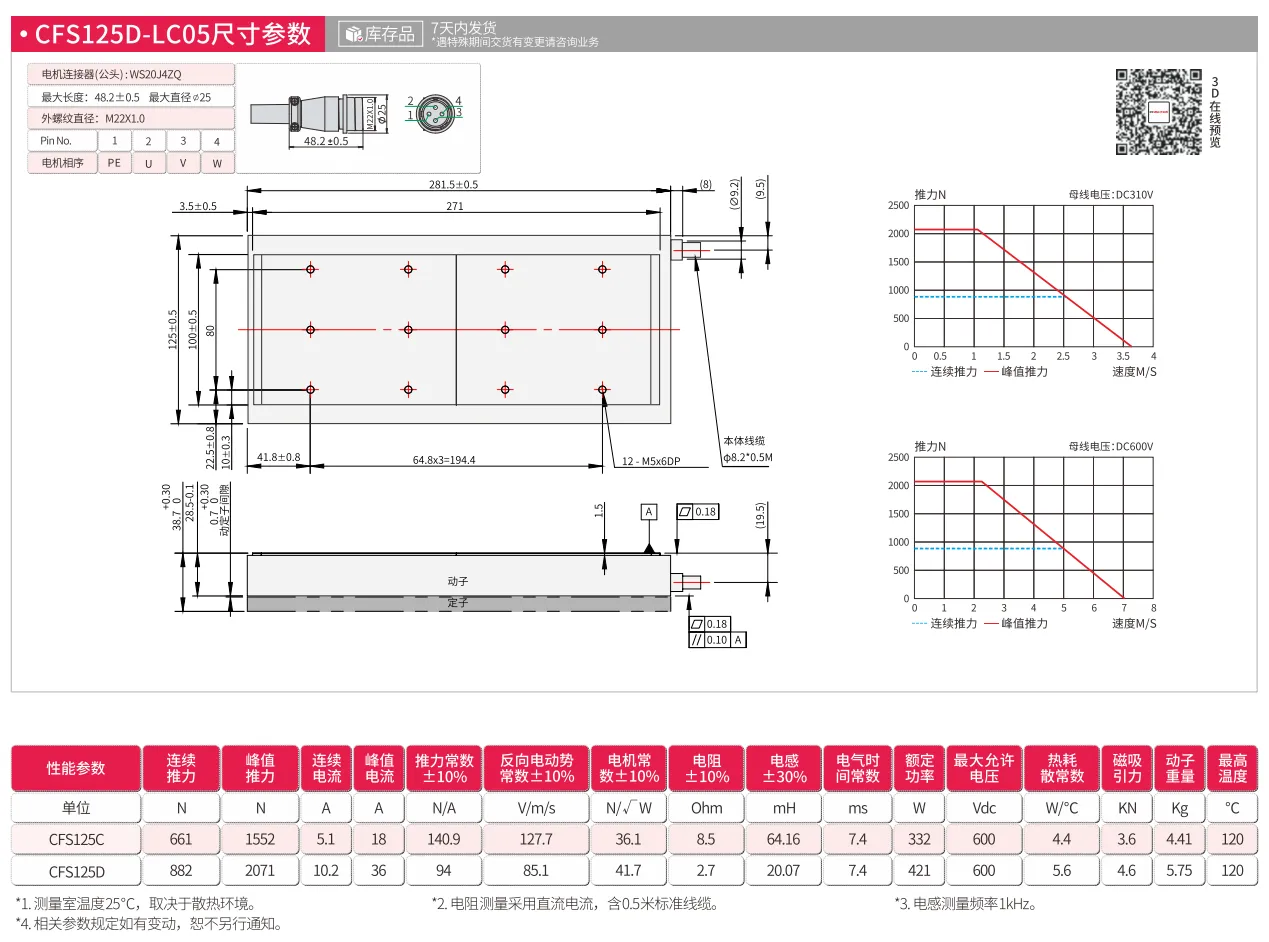

CFS125D
CFS125E

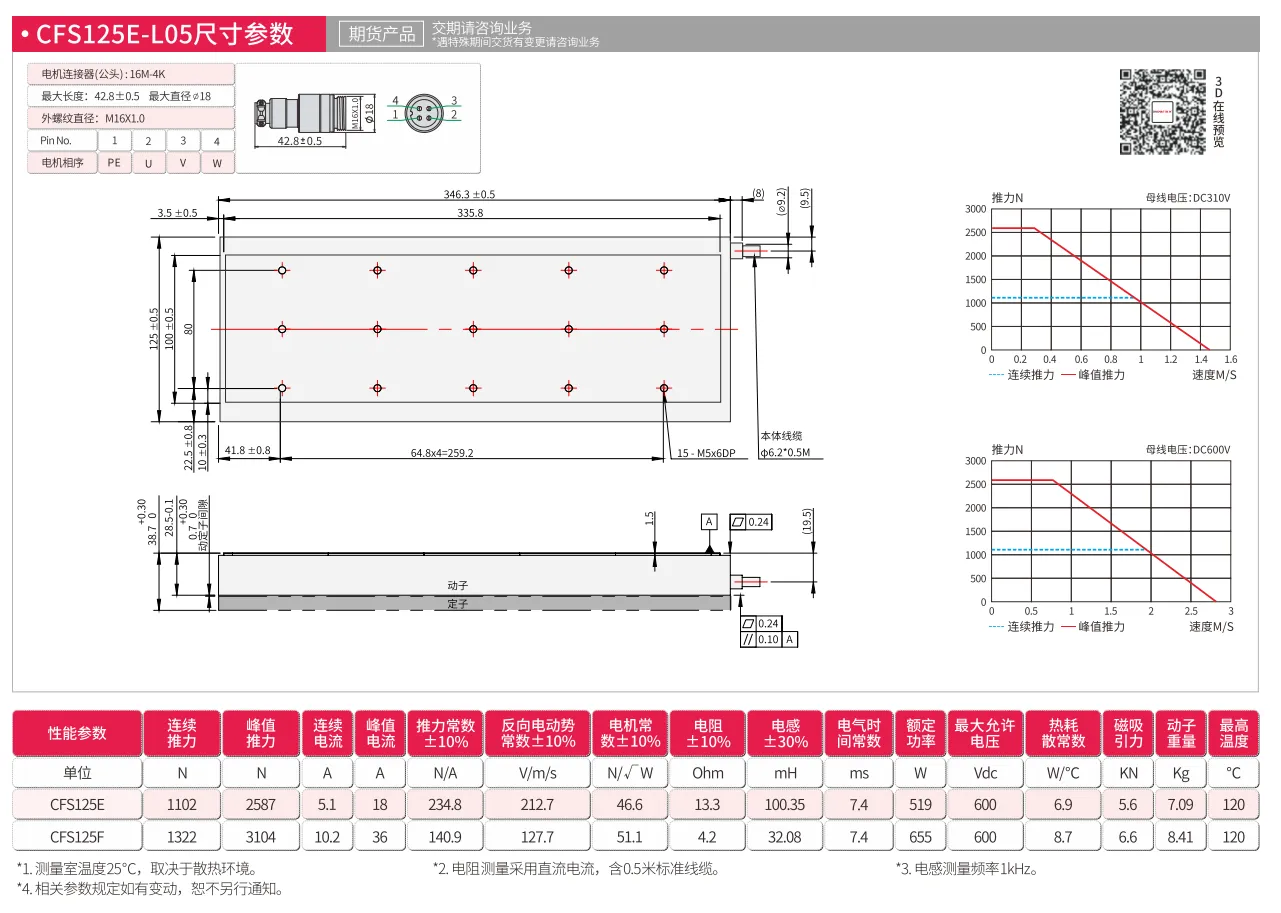

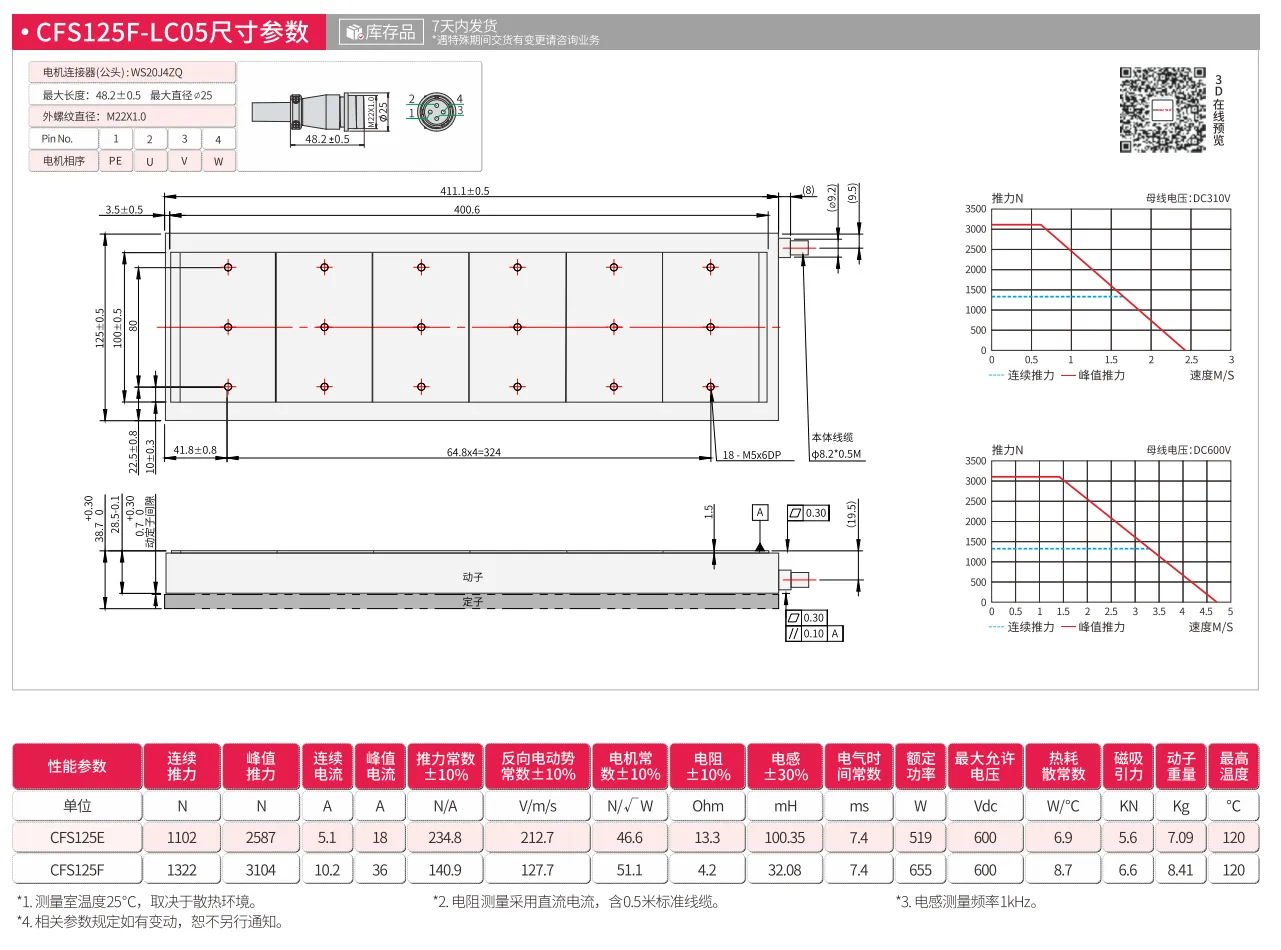

CFS125F
CFS125A
CFS125B
CFS125C
CFS125D
CFS125E
CFS125F
