CKM150

CKM150

Features

  • Iron Core Technology
  • Ultra-Low Cogging Torque
  • High Acceleration
  • High Stiffness

Applicable Industries

Semiconductor Industry Display Panel Industry Solar PV Industry SMT Industry Healthcare Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CKM
Series
  • CKM
150
Armature Width
  • 030: 51mm  050: 71mm
  • 100:121mm 150: 171mm
  • 200: 221mm
D
Armature Length
  • D: 364mm  H: 700mm
  •
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
LF05
Armature lead
  • L05:0.5m lead(4x20AWG)，
    with WS20J4ZQ connecto
  • L05:0.5m lead(4x16AWG)，
    with WS20J4ZQ connecto
  • L05:0.5m lead(4x13AWG)，
    with WS20J4ZQ connecto
Stators order number rules
MKM
Series
  • MKM
150
Stator Width
  • 150: 180mm
L168
Stator Lead
  • L168: 168mm
  • L252: 252mm
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MKM150-L168 168 180 13.8 1 4 42 17.4
MKM150-L252 252 180 13.8 2 6 42 17.4
Parameter configuration
Product Model CKM150A CKM150B CKM150C CKM150D CKM150E CKM150H
Armature Length(mm) 364 700
Continuous Thrust(N) 2146 4293
Peak Thrust(N) 4777 9553

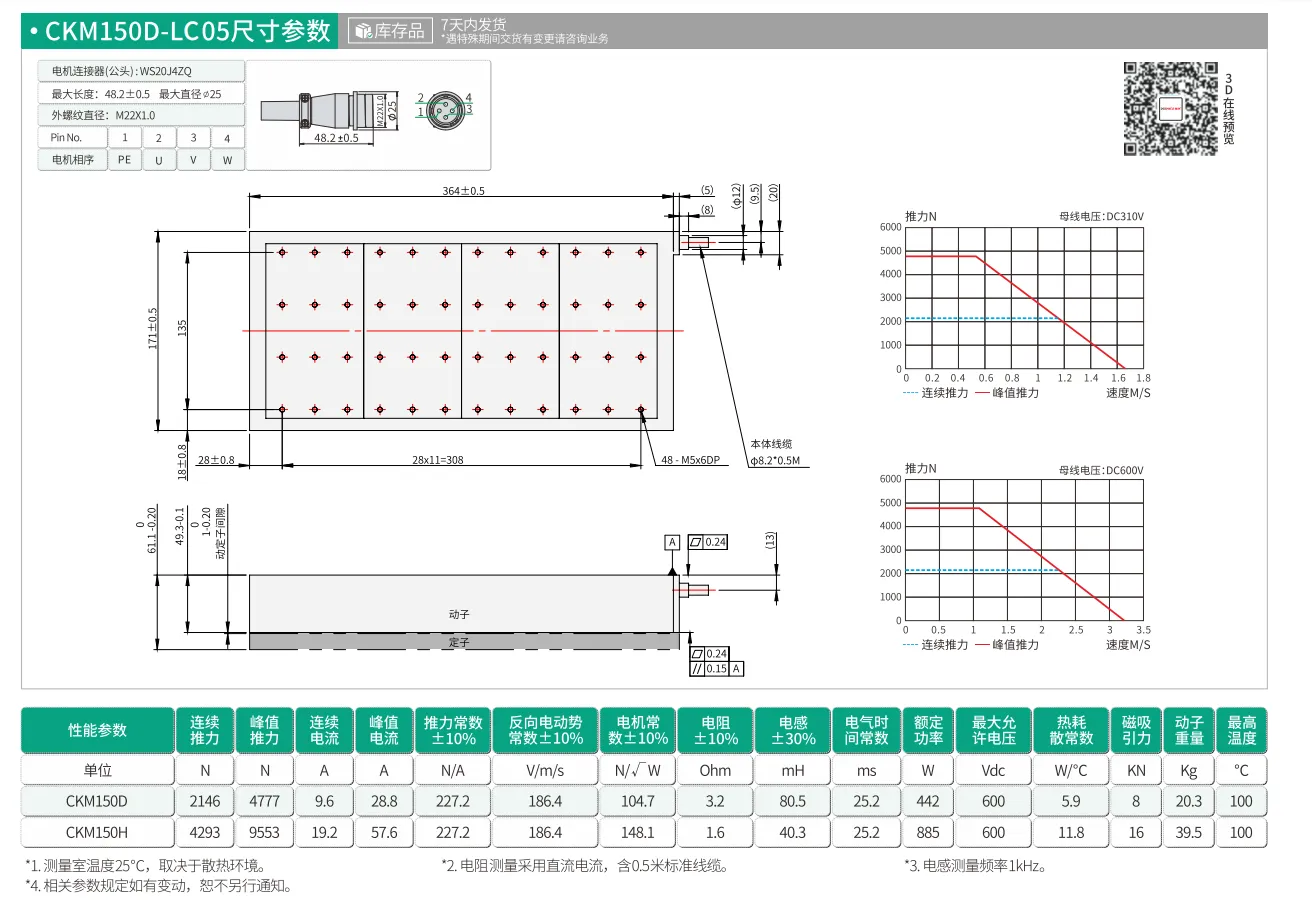

CKM150D

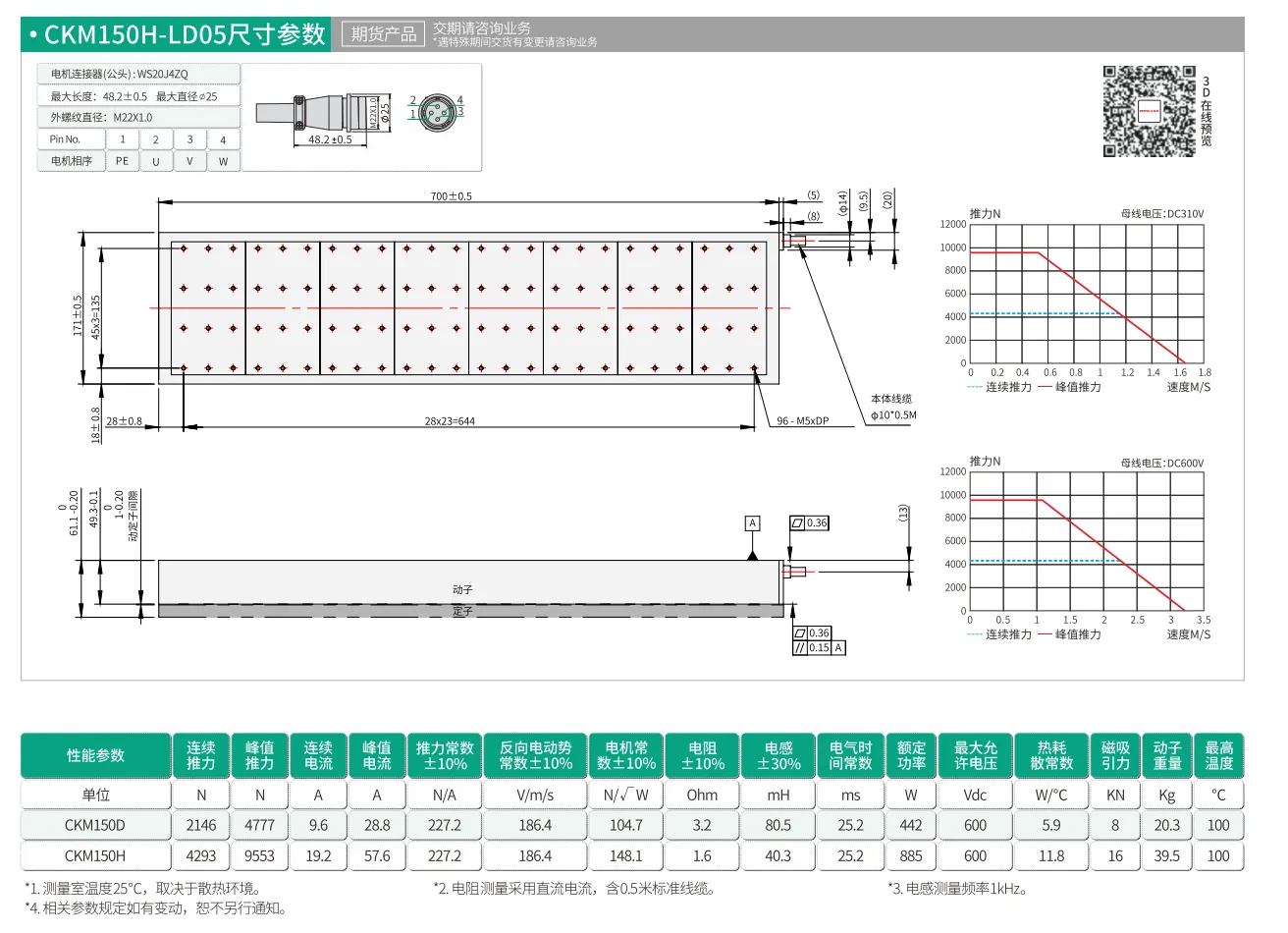

CKM150H
CKM150D
CKM150H
