CFS055 Iron Core Linear Motor

CFS055 Iron Core Linear Motor

Features

  • Iron Core Technology
  • Low Cogging Torque
  • High Acceleration
  • Economical

Applicable Industries

Display Panel Industry Solar PV Industry SMT Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CFS
Series
  • CFS
055
Armature Width
  • 035: 35mm 045: 45mm
  • 055: 55mm 065: 65mm
  • 075: 75mm 095: 95mm
  • 125: 125mm
A
Armature Length
  • A: 87.1mm D: 281.5mm
  • B: 151.9mm E: 346.3mm
  • C: 216.7mm F: 411.1mm
A
Winding Code
  • **standard winding
    "unmarked"
  • A, B, C, D, etc.
L05
Armature lead
  • L05:0.5m lead(4x20AWG)，
    with 16M-4K connector
Stators order number rules
MFS
Series
  • MFS
055
Stator Width
  • 055: 50mm
L128
Stator Length
  • L128: 128mm
  • L192: 192mm
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MFS055-L128 128 50 9.5 1 4 32 2.5
MFS055-L192 192 50 9.5 1 6 32 2.5
Parameter configuration
Product Model CFS055A CFS055B CFS055C CFS055D CFS055E CFS055F
Armature Length(mm) 87.1 151.9 216.7 281.5 346.3 411.1
Continuous Thrust(N) 73 145 218 291 363 436
Peak Thrust(N) 171 341 512 683 853 1024

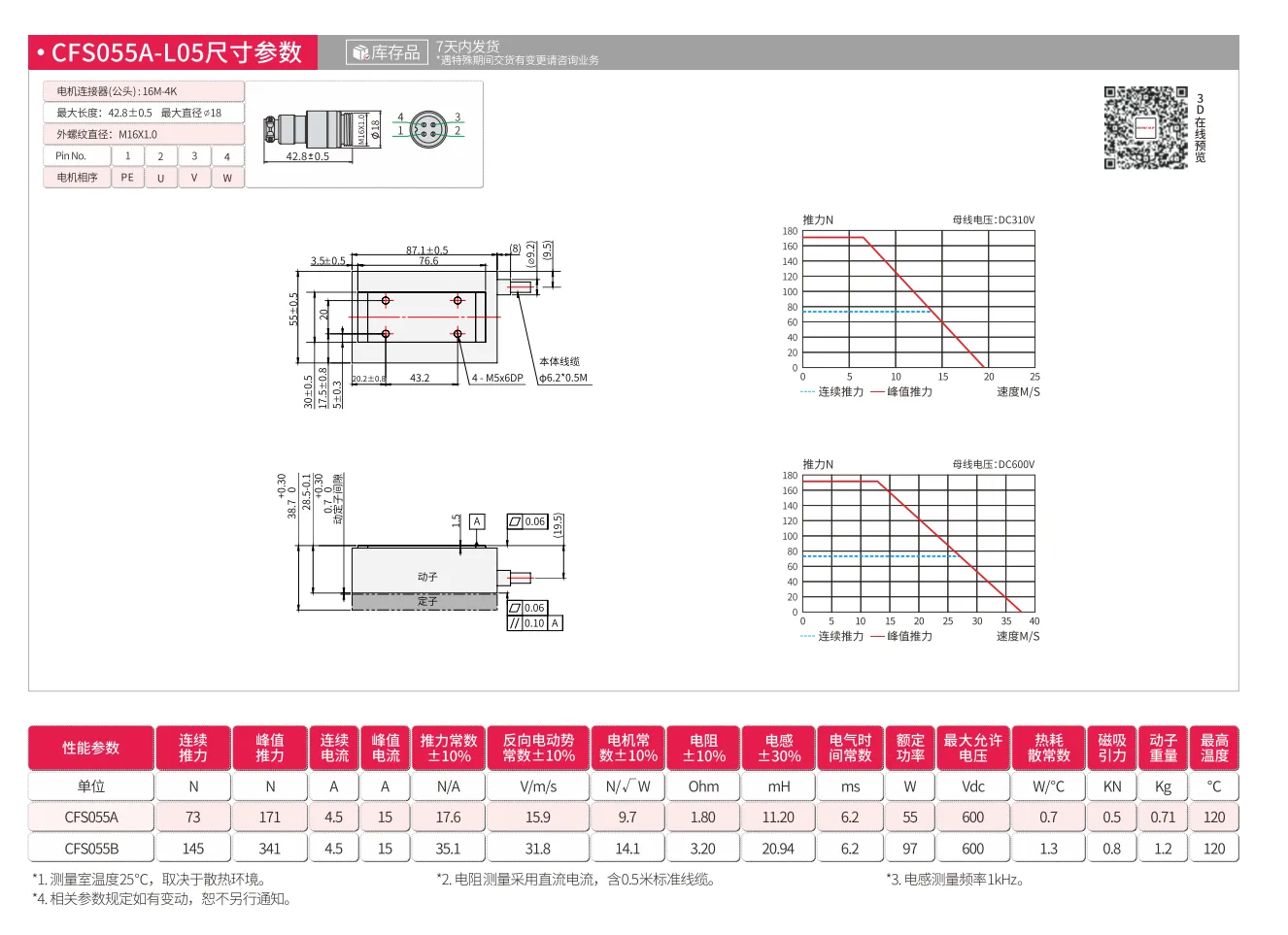

CFS055A

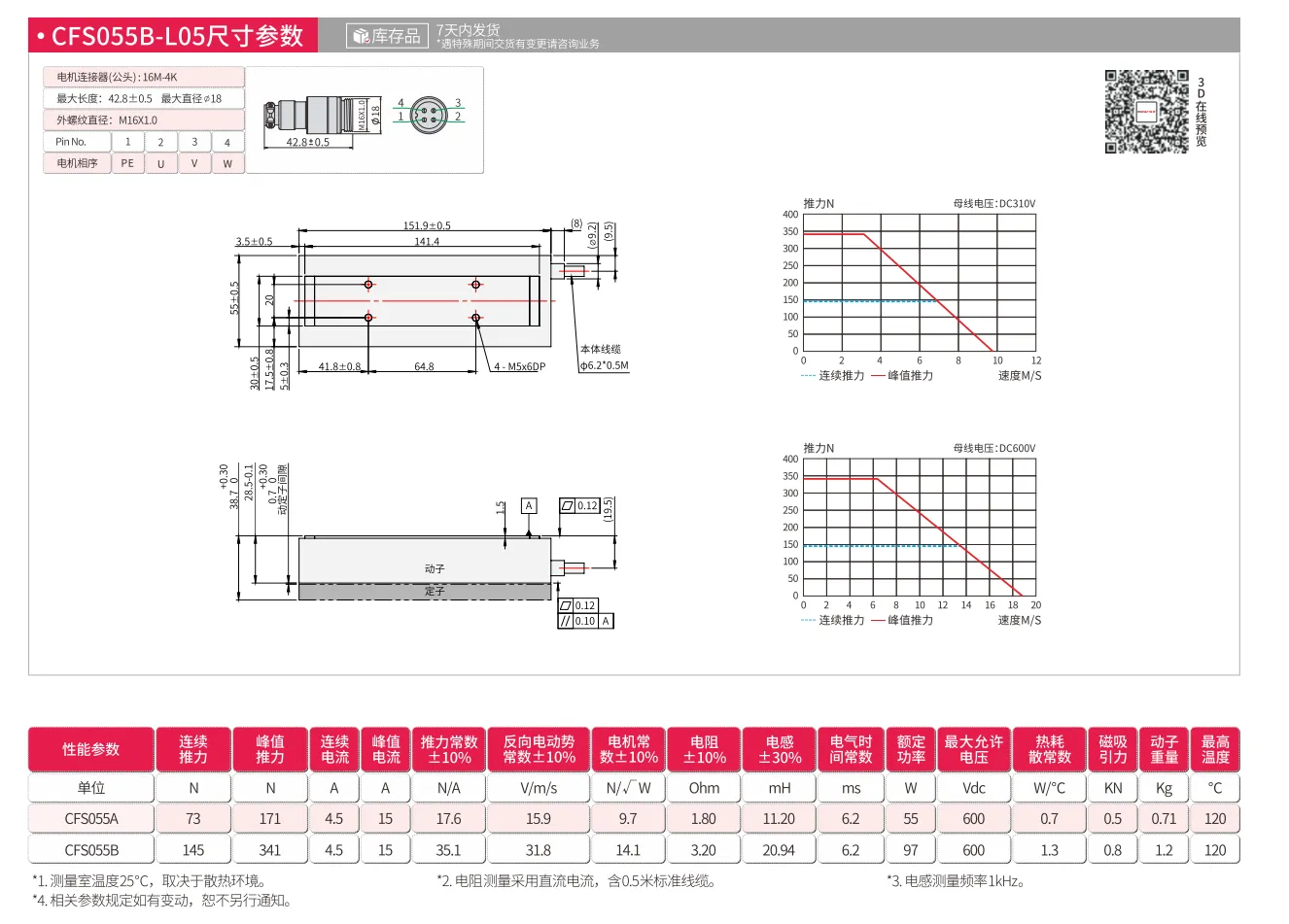

CFS055B

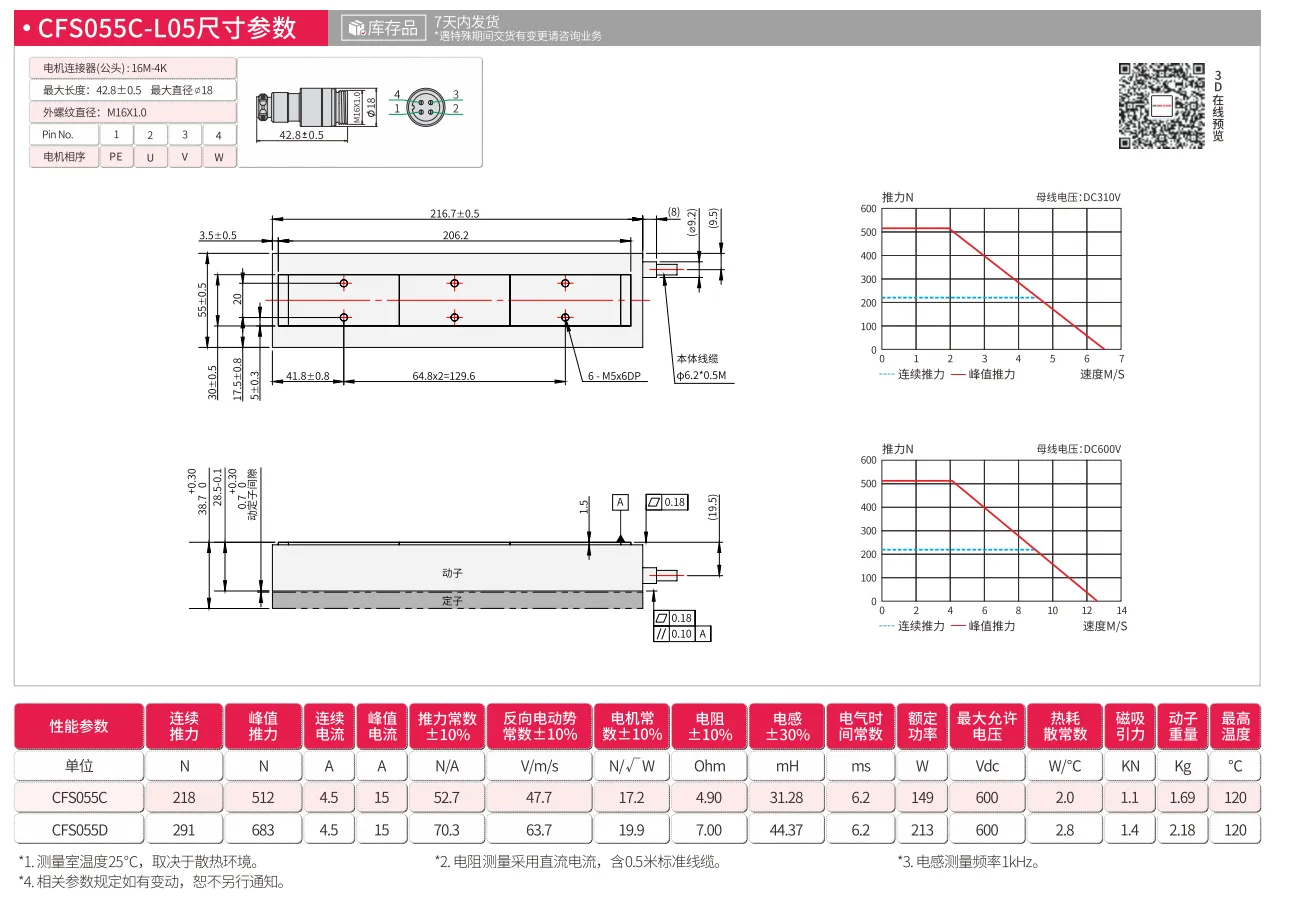

CFS055C

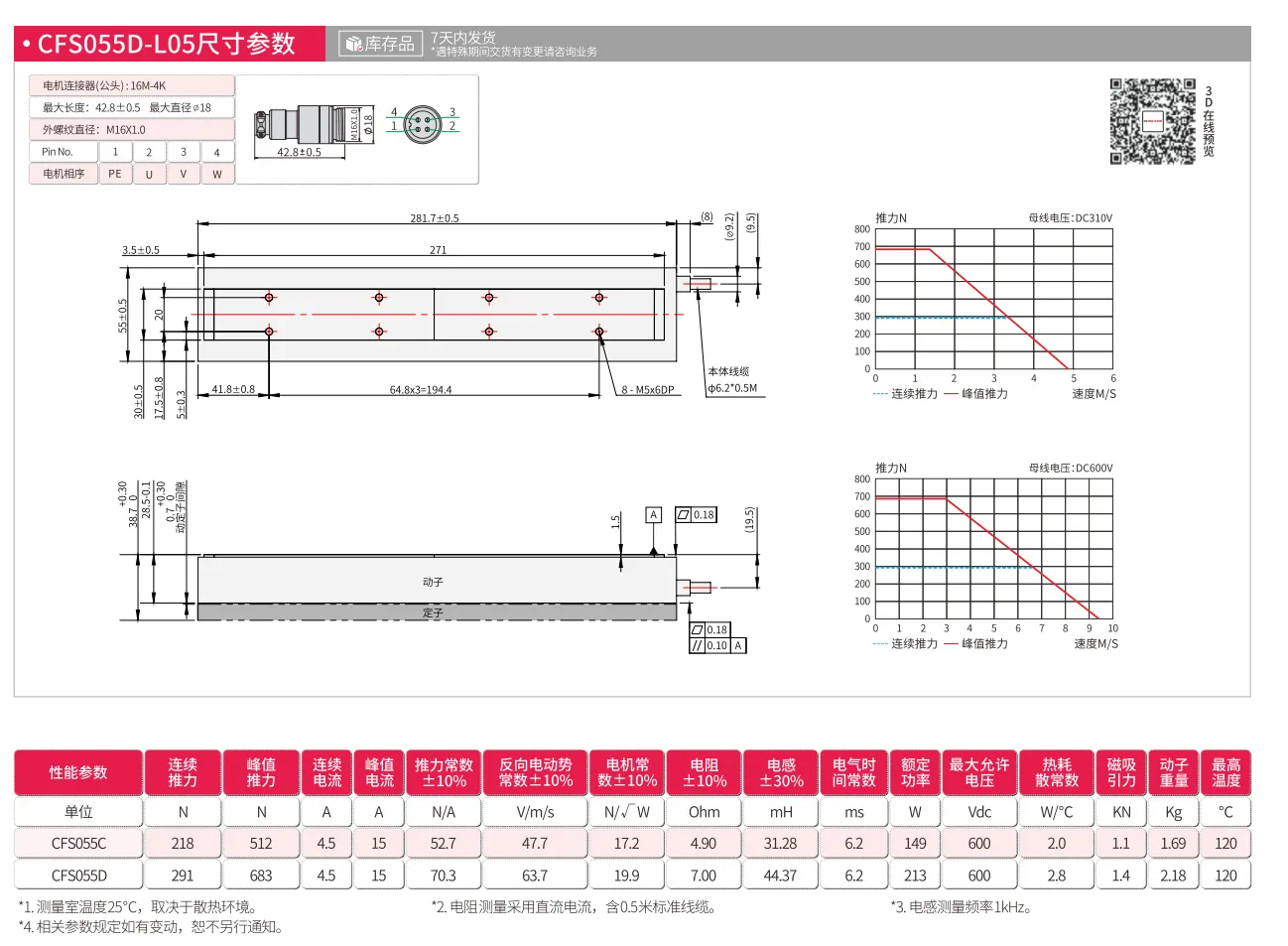

CFS055D

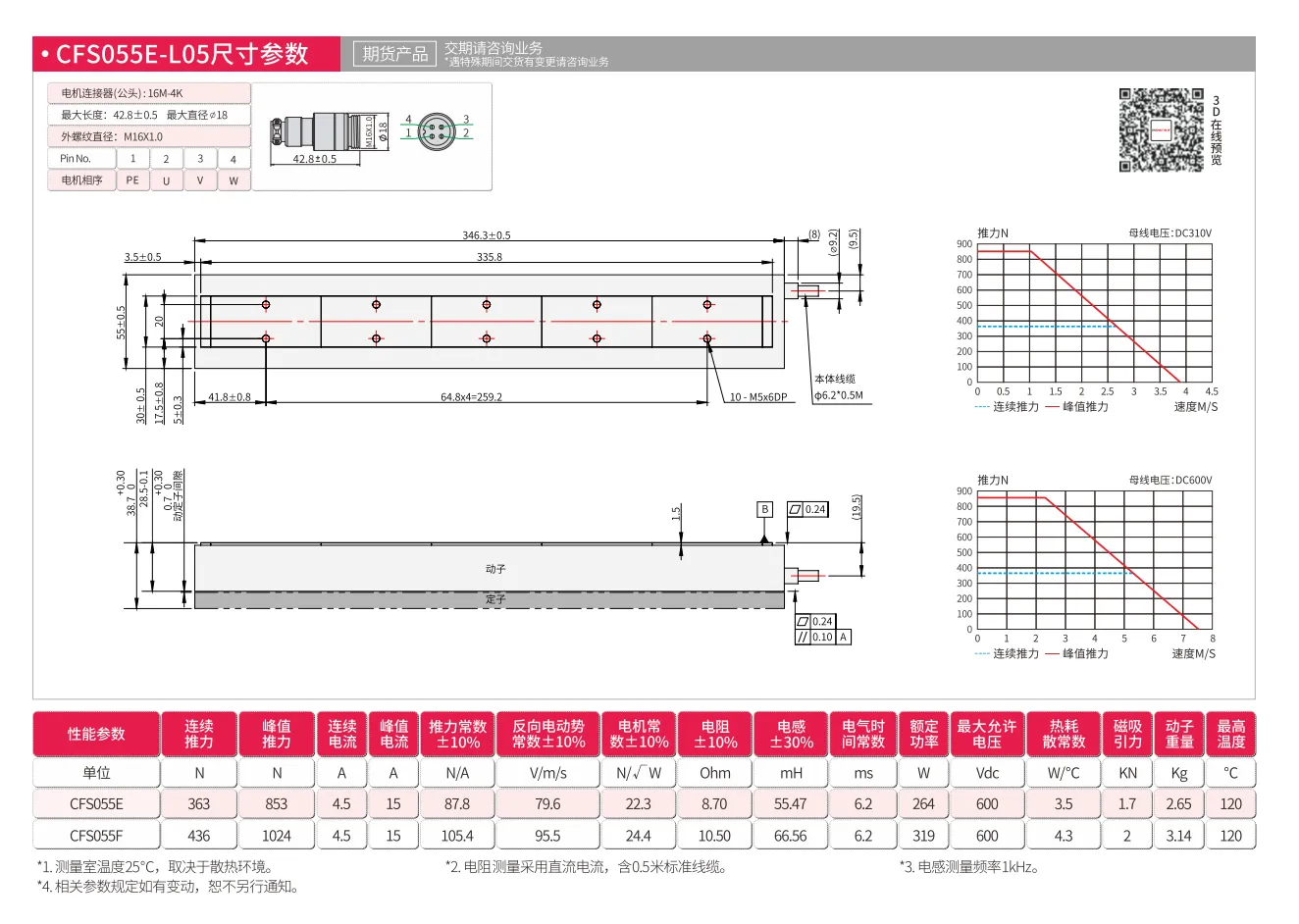

CFS055E

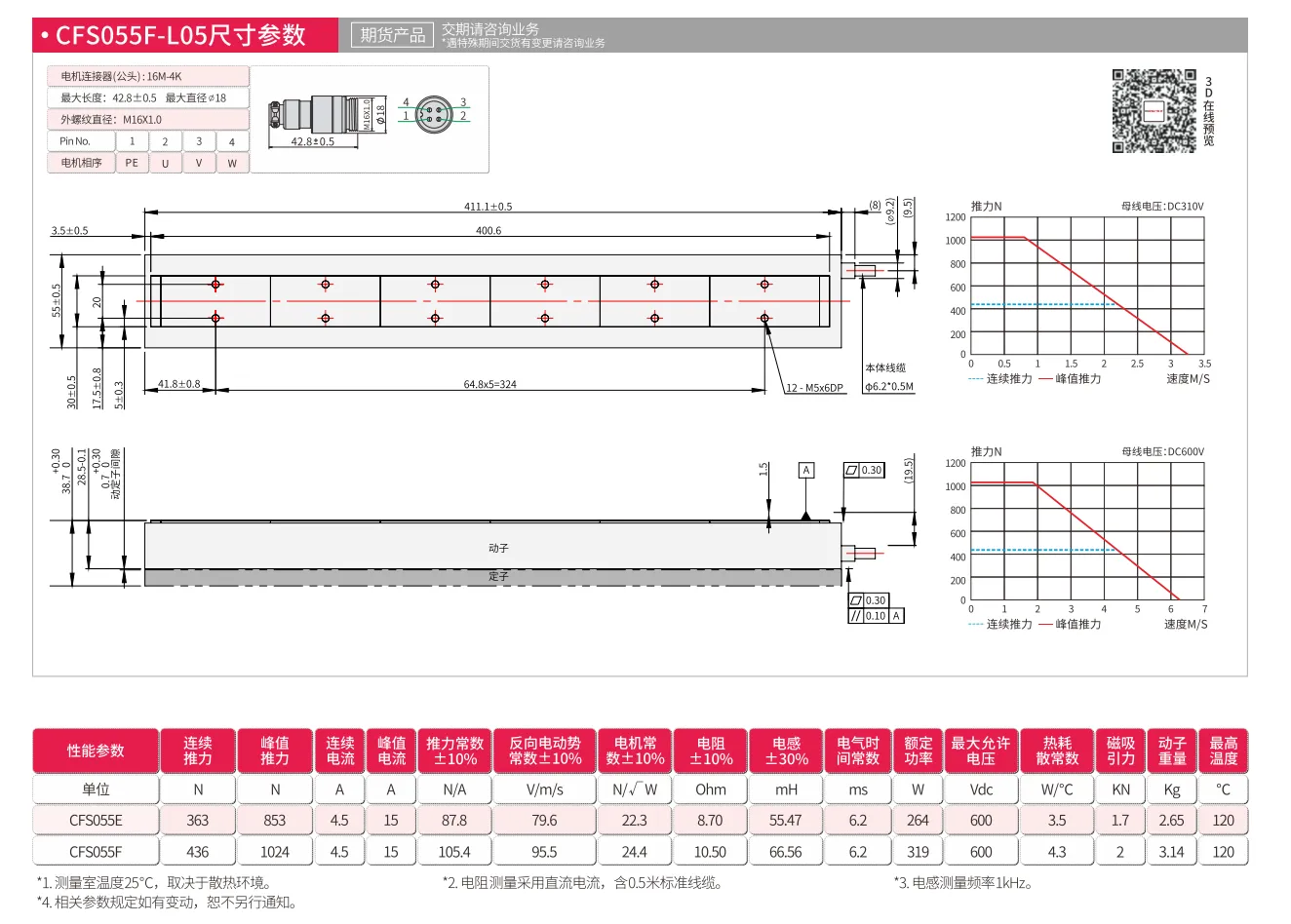

CFS055F
CFS055A
CFS055B
CFS055C
CFS055D
CFS055E
CFS055F
