CFS075 Linear Direct Drive Motor

CFS075 Linear Direct Drive Motor

Features

  • Iron Core Technology
  • Low Cogging Torque
  • High Acceleration
  • EconomicalCogging Torque
  • High Acceleration
  • Economical

Applicable Industries

Semiconductor Industry Display Panel Industry Solar PV Industry SMT Industry Healthcare Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Online Conversation
Movers order number rules
CFS
Series
  • CFS
075
Armature Width
  • 035: 35mm 045: 45mm
  • 055: 55mm 065: 65mm
  • 075: 75mm 095: 95mm
  • 125: 125mm
A
Armature Length
  • A: 87.1mm D: 281.5mm
  • B: 151.9mm E: 346.3mm
  • C: 216.7mm F: 411.1mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
L05
Armature lead
  • L05:0.5m lead(4x20AWG)，
    with 16M-4K connector
  • LF05:0.5m lead(4x16AWG),
    with WS20J4ZQ connector
Stator Order No.
MFS
Series
  • MFS
075
Stator Width
  • 075: 70mm
L128
Stator Length
  • L128: 128mm
  • L192: 192mm
Motor ModelLength (LC)WidthHeightAZMagnetic Pole PitchMass
UnitmmmmmmPCSPCSmmkg/m
MFS075-L128128709.514323.8
MFS075-L192192709.526323.8
Parameter configuration
Product ModelCFS075ACFS075BCFS075CCFS075DCFS075ECFS075F

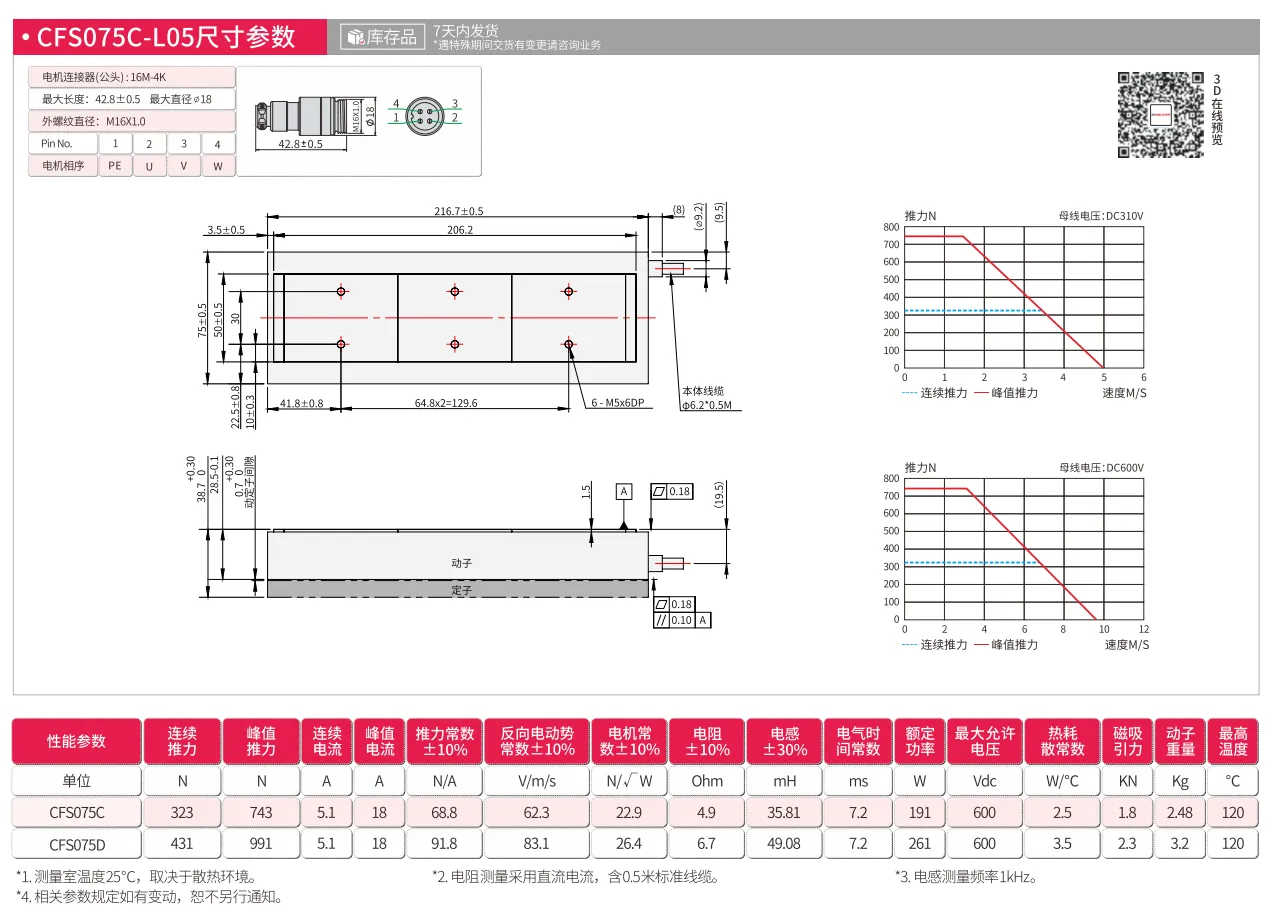

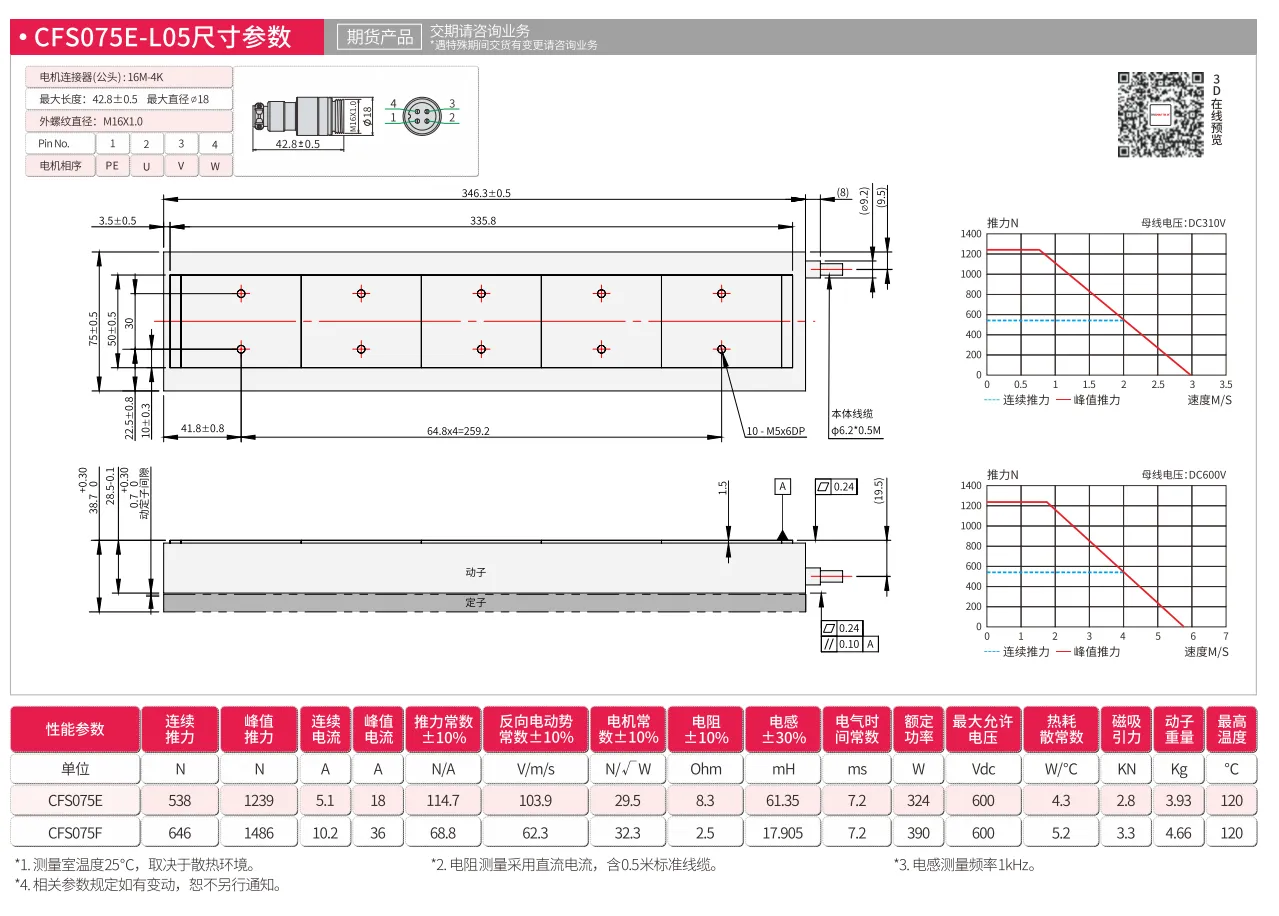

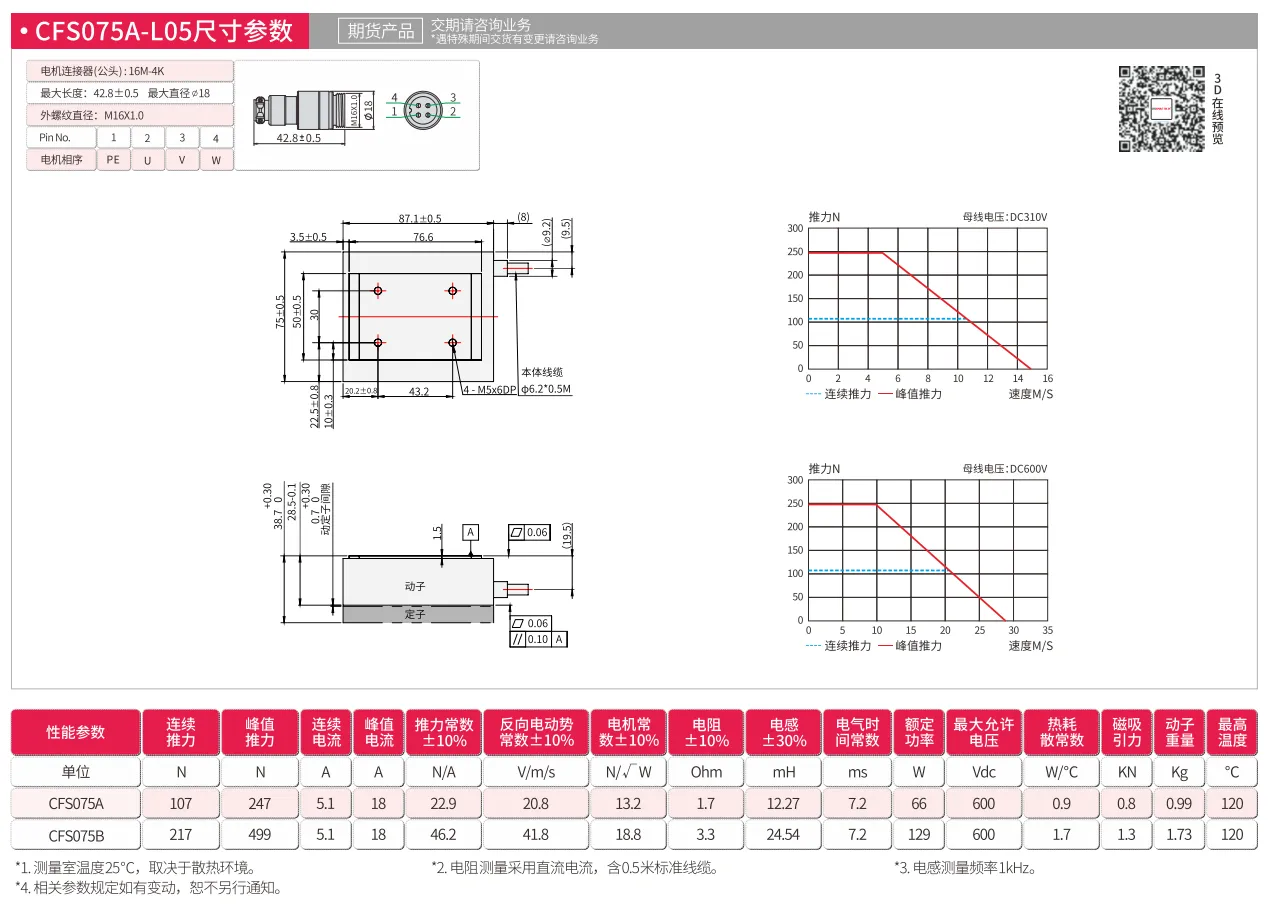

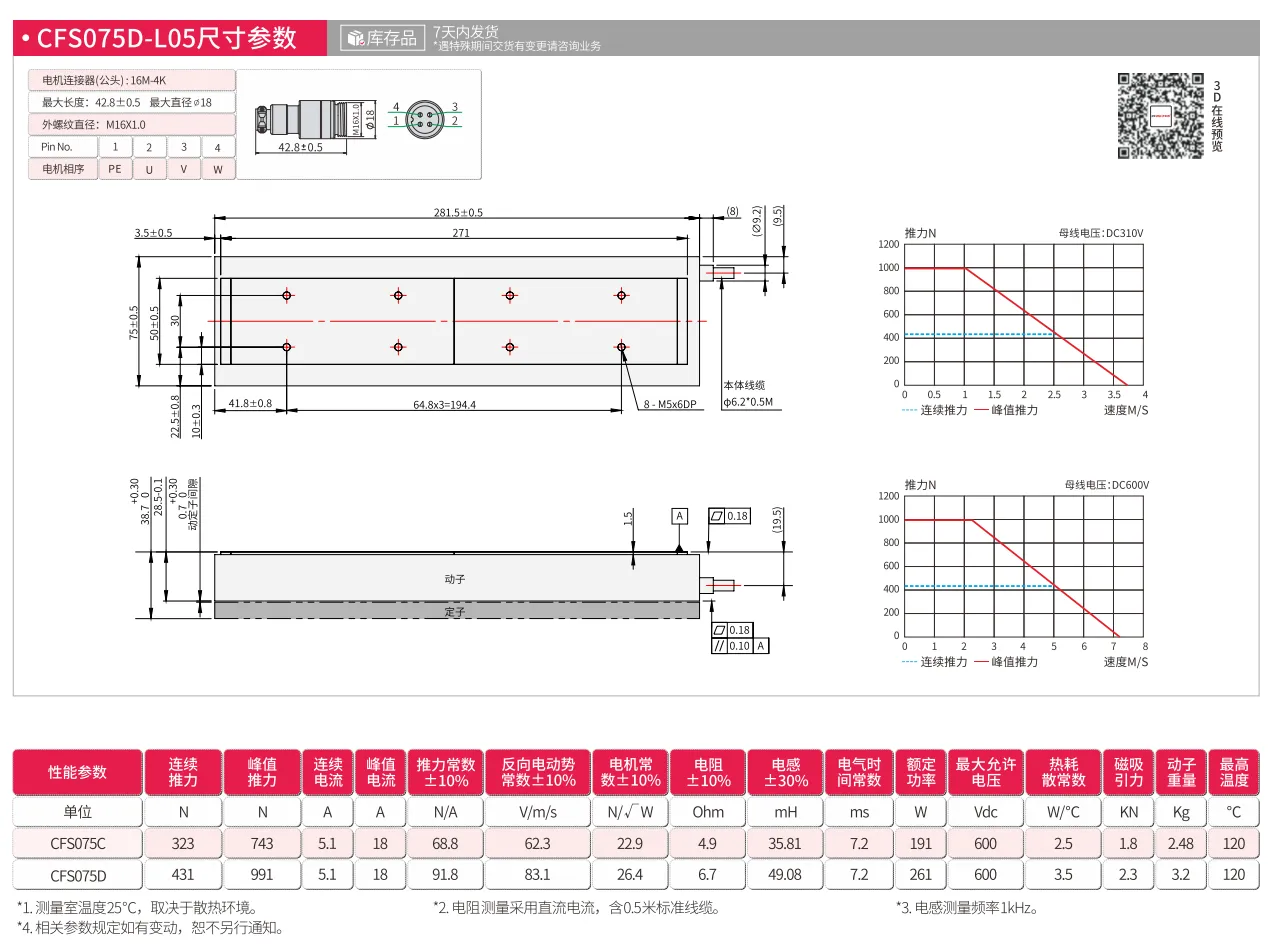

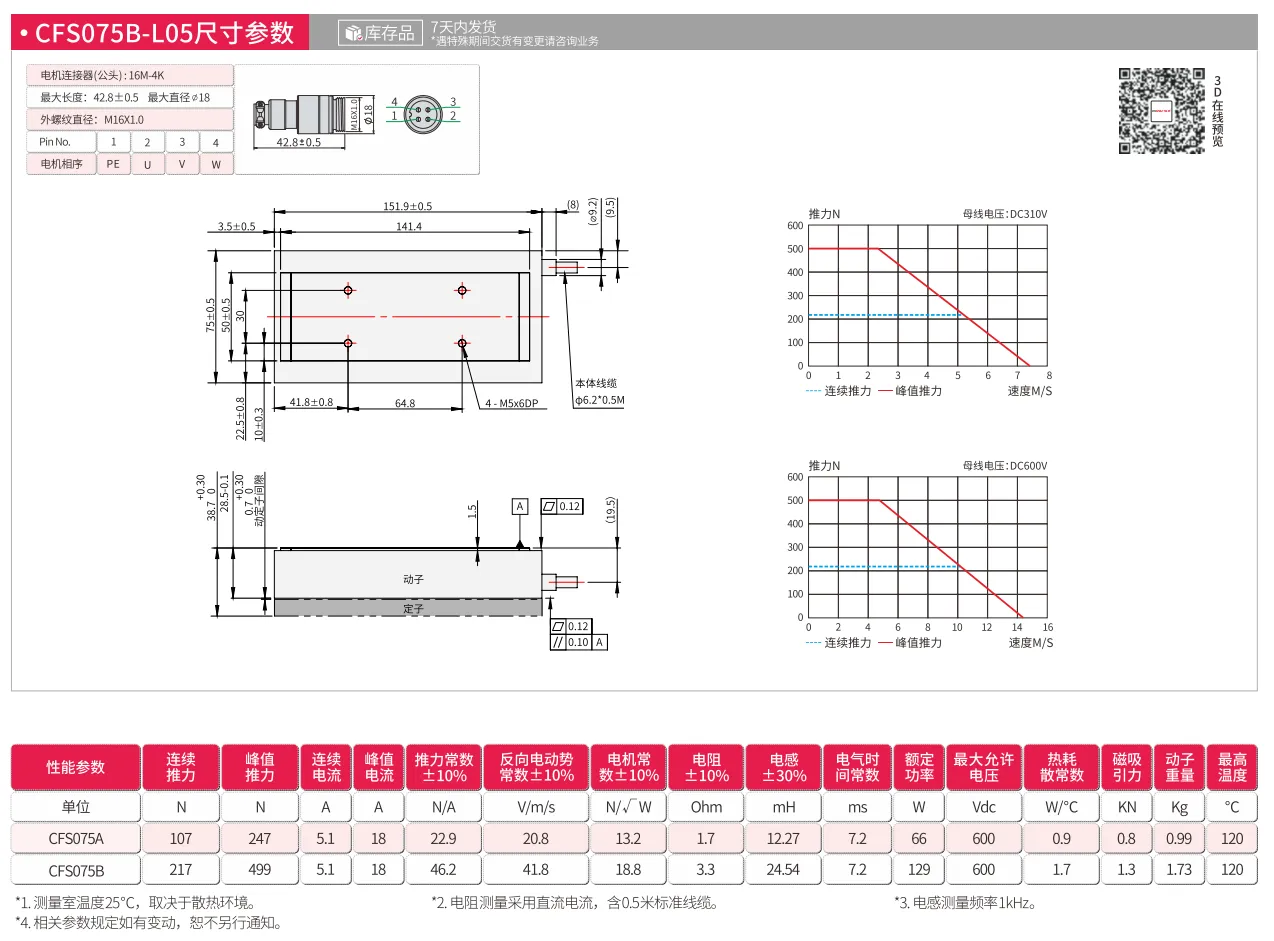

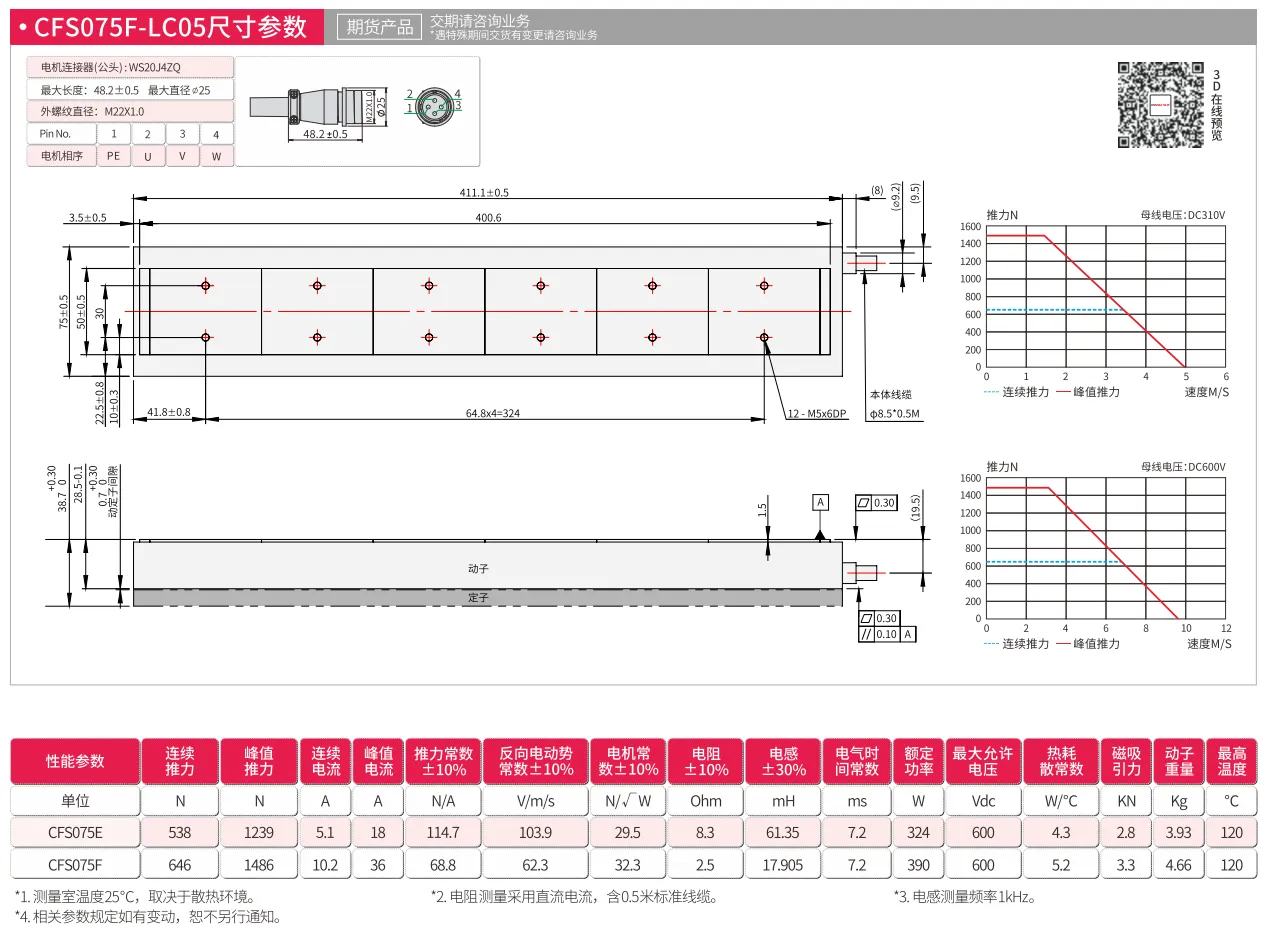

Armature Length(mm)87.1151.9216.7281.5346.3411.1
Continuous Thrust(N)107217323431538646
Peak Thrust(N)247499743991

1239

1486
CFS075A
CFS075B
CFS075C
CFS075D
CFS075E
CFS075F
CFS075A
CFS075B
CFS075C
CFS075D
CFS075E
CFS075F
