CFW090 High Speed Linear Motor

CFW090 High Speed Linear Motor

Features

  • Iron Core Technology
  • Ultra-Low Cogging Torque
  • High Acceleration
  • High Speed

Applicable Industries

Semiconductor Industry Display Panel Industry Solar PV Industry Lithium Battery New Energy Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Online Conversation
Movers order number rules
CFW
Series
  • CFW
090
Armature Width
  • 045:69.5mm 090:114.5mm
  • 135:160mm
B
Armature Length
  • B: 205mm  D: 384mm
  • F:563mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
LD05
Armature Lead
  • LF05:0.5m lead(4x13AWG),
    with WS20J4ZQ connector
Stators order number rules
MFW
Series
  • MFW
090
Stator Width
  • 090: 120mm
L204
Stator Length
  • L204: 204mm
  • L306:306mm
P
Version
  • P：High-Performance Version,
    No Marking, Default Standard Version
Motor ModelLength (LC)WidthHeightAZMagnetic Pole PitchMass
UnitmmmmmmPCSPCSmmkg/m
MFW090-L20420412011.214517.84
MFW090-L30630612011.226517.84
Parameter configuration
Product ModelCFW090ACFW090BCFW090CCFW090DCFW090ECFW090F
Armature Length(mm)205384563
Continuous Thrust(N)56011201680
Peak Thrust(N)168033605040

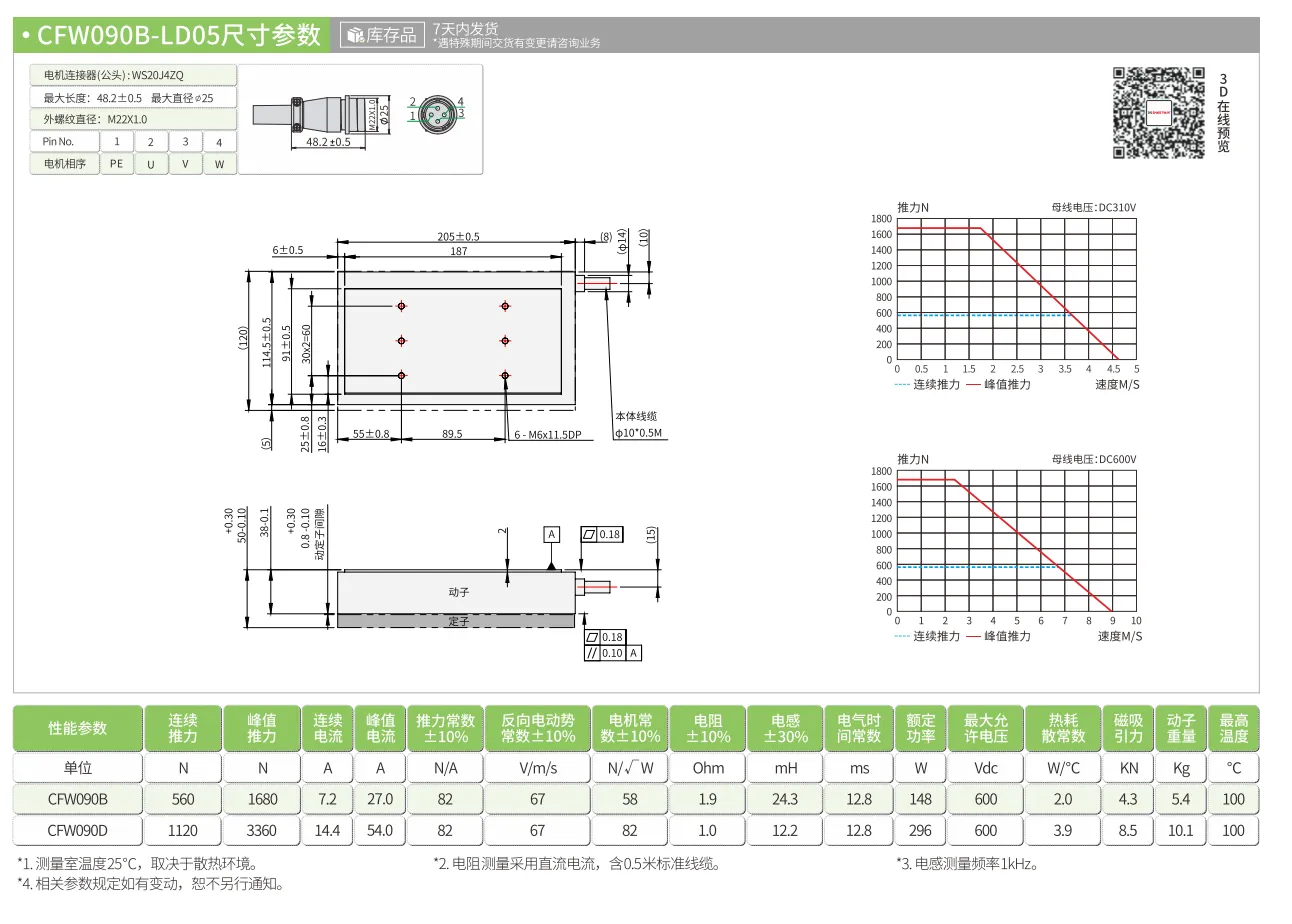

CFW090B

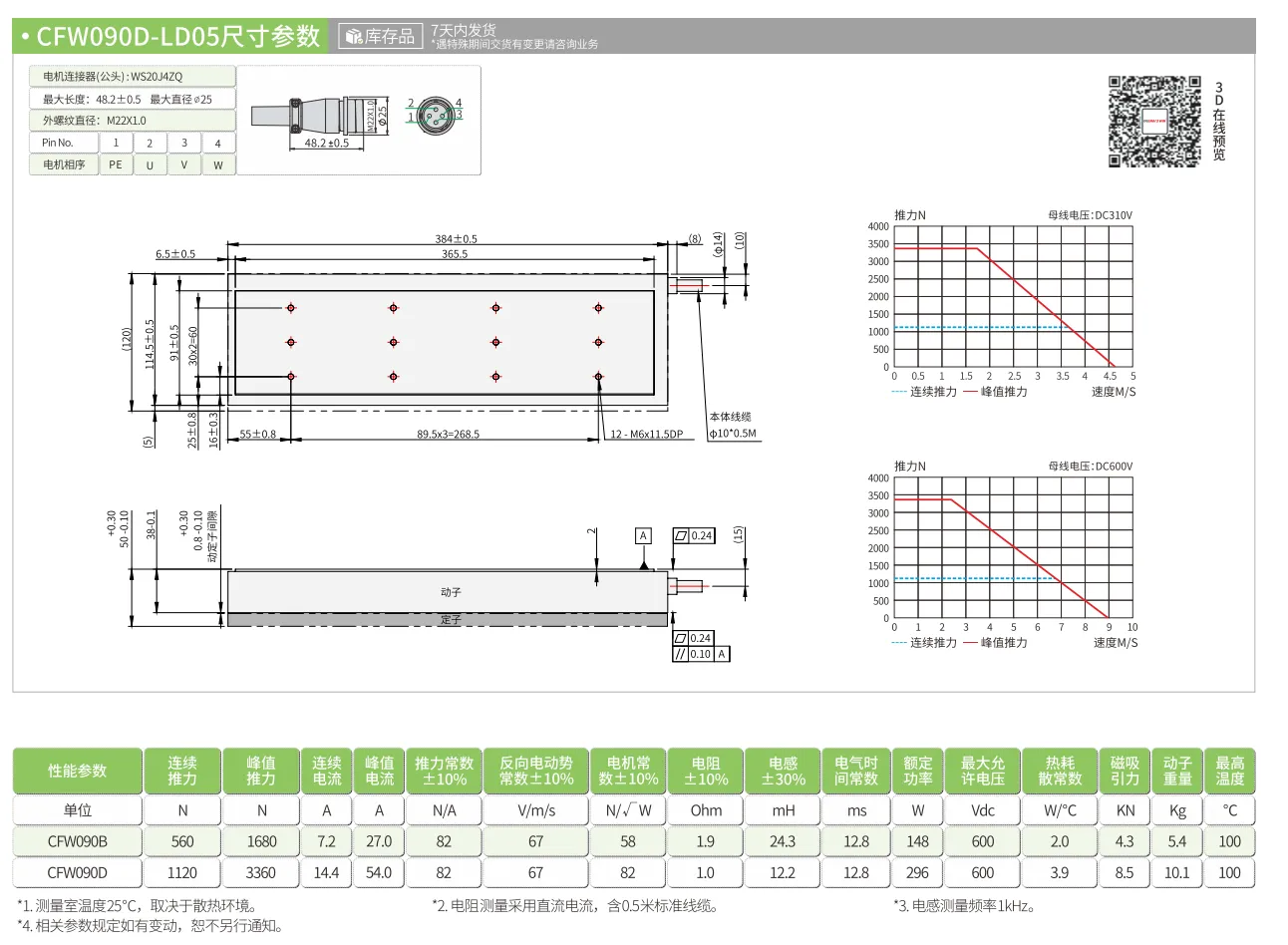

CFW090D

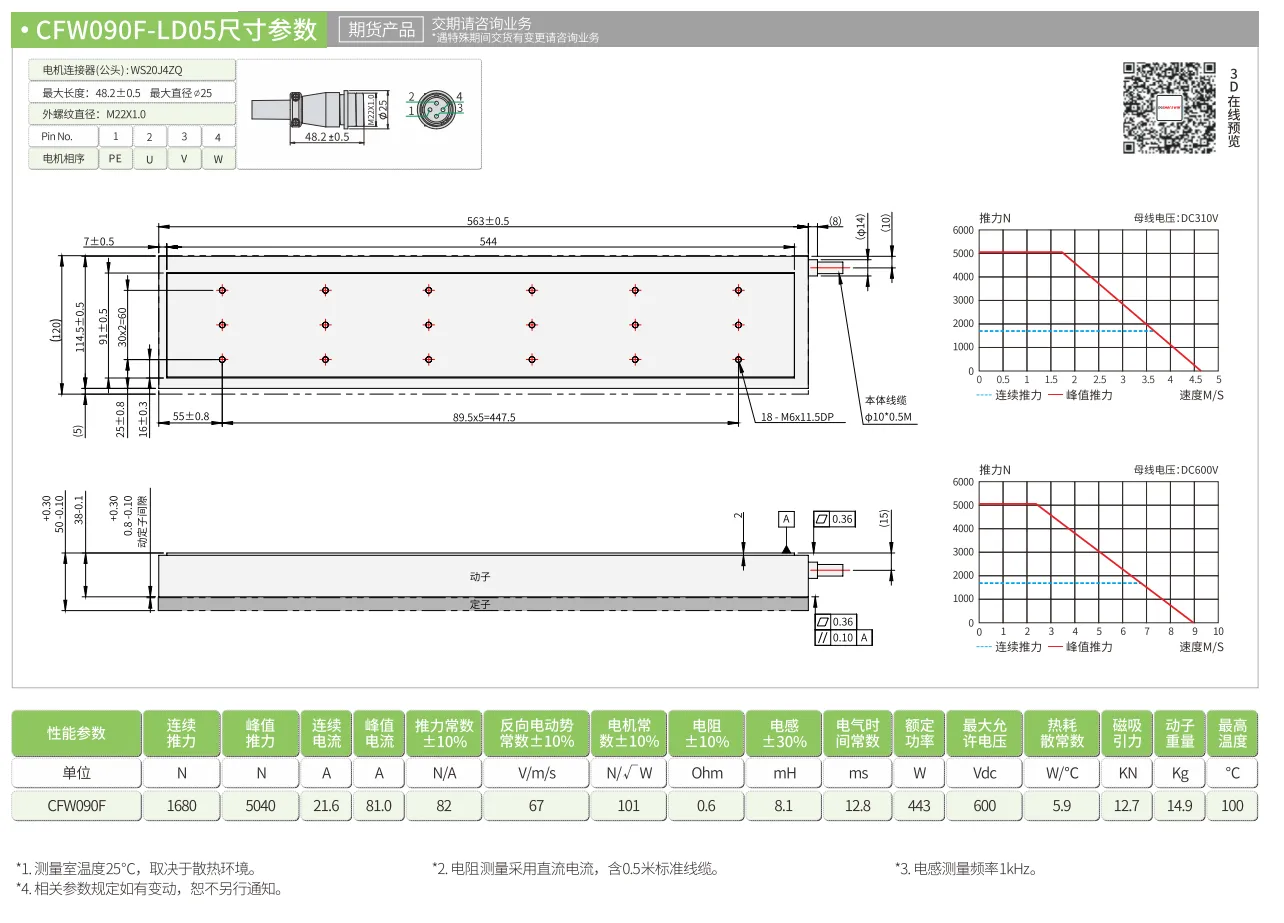

CFW090F
CFW090B
CFW090D
CFW090F
