Home Iron-Core Linear Motor CMW CMW095
CMW095

CMW095

Features

  • Core technology
  • Low cogging torque
  • High acceleration
  • Compact size

Applicable Industries

Solar PV Industry Lithium Battery New Energy Industry Precision Laser Processing Industry Healthcare Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CMW
Series
  • CMW
095
Armature Width
  • 060: 60mm.075: 75mm
  • 095:95mm 120: 120mm
B
Armature Length
  • B: 102mm  D: 188mm
  • F: 270mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A、B、C、D etc.
L05
Stator Lead-out
  • L05:0.5m lead-out (4x20AWG)，
    compatible with 16M-4K connector
Stators order number rules
MMW
Series
  • MMW
095
Armature Width
  • 095: 95mm
L96
Armature Length
  • L96: 96mm
  • L144: 144mm
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MMW095-L96 96 95 8.8 1 4 24 5.5
MMW095-L144 144 95 8.8 2 6 24 5.5
Parameter configuration
Product Model CMW095A CMW095B CMW095C CMW095D CMW095E CMW095F
Armature Length(mm) 102 188 270
Continuous Thrust(N) 212 409 613
Peak Thrust(N) 697 1393 1858

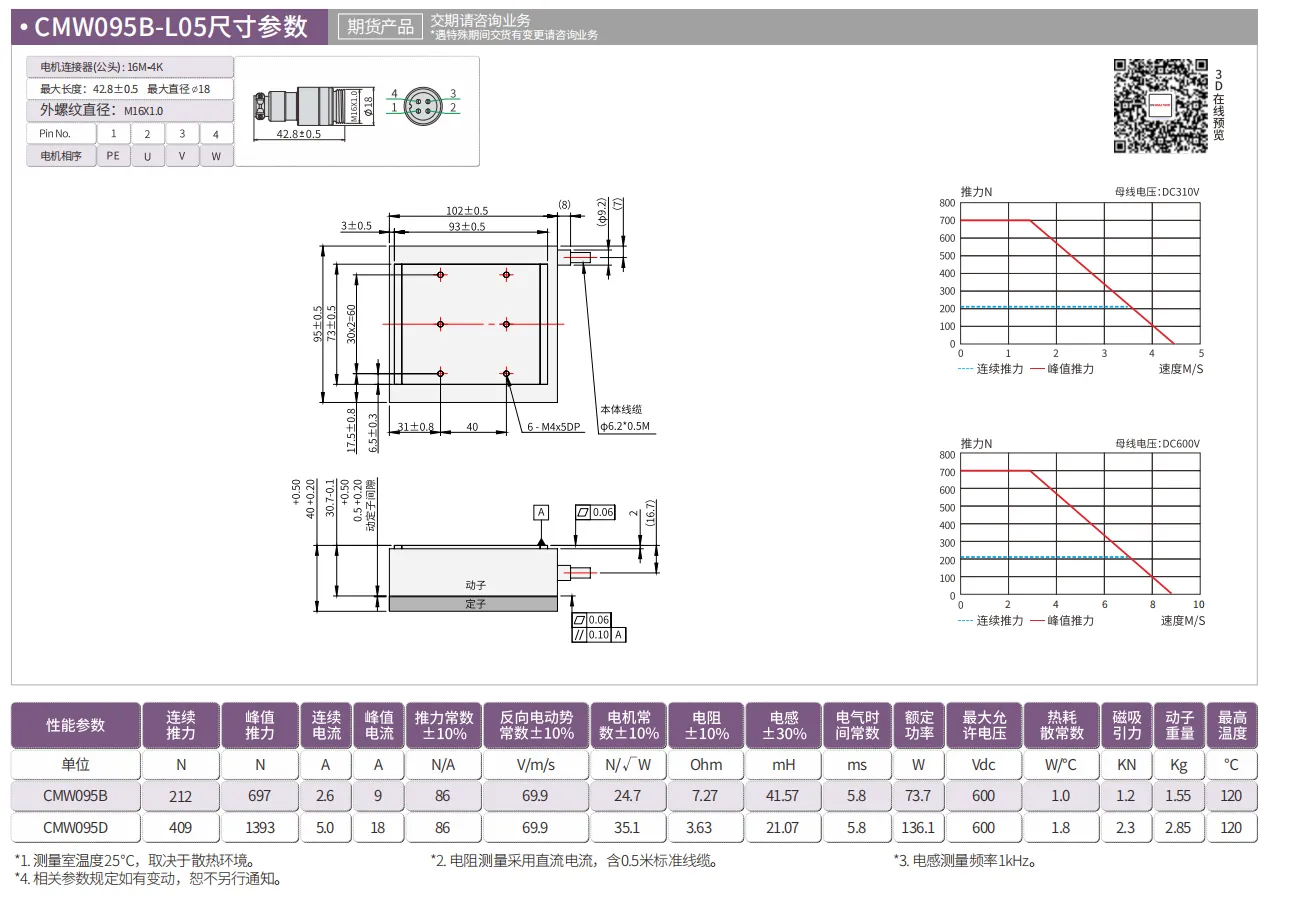

CMW095B

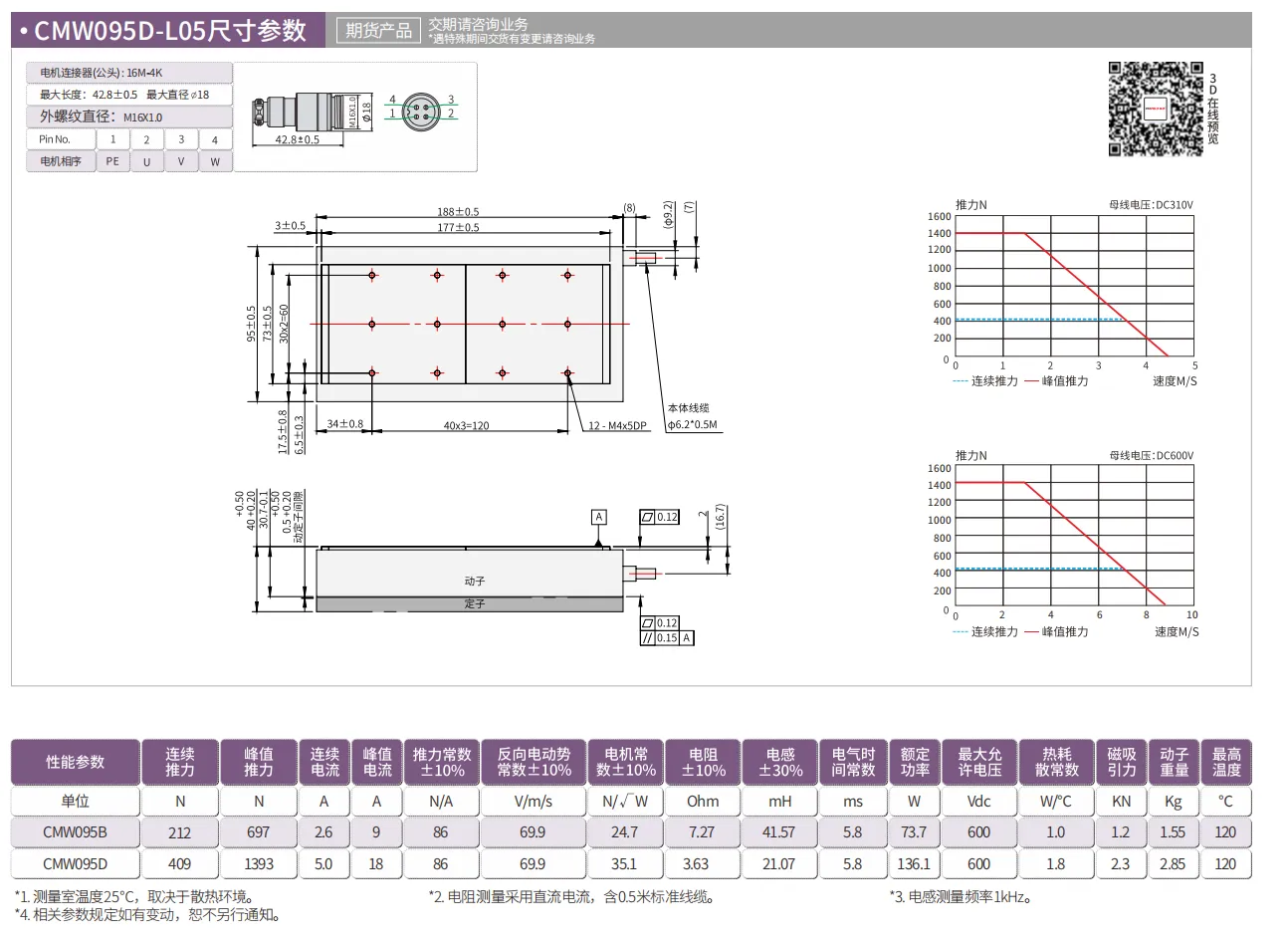

CMW095D

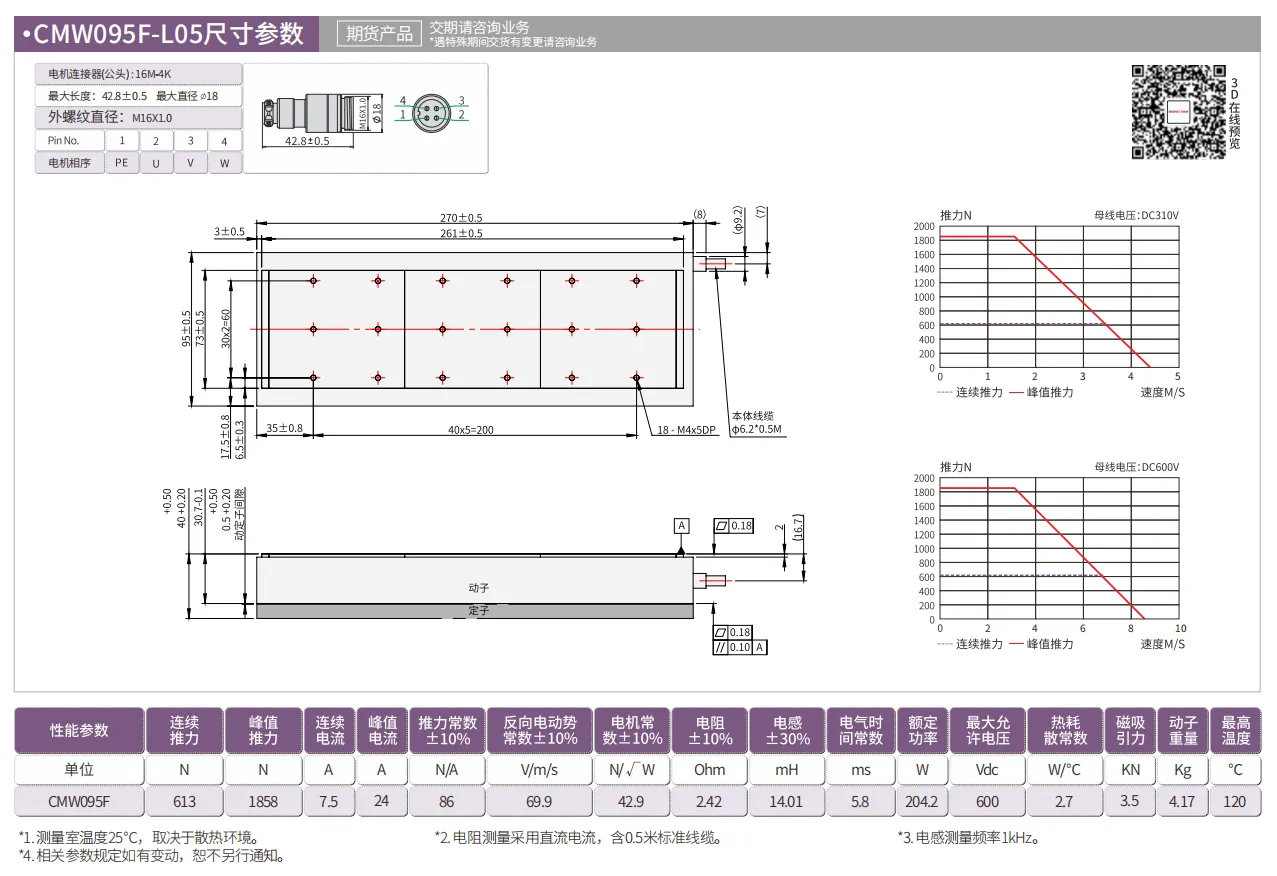

CMW095F
CMW095B
CMW095D
CMW095F
