CFW030

CFW030

Features

  • Iron Core Technology
  • Ultra-Low Cogging Torque
  • High Acceleration
  • High Speed

Applicable Industries

Display Panel Industry Precision Laser Processing Industry SMT Industry Healthcare Industry Digital Printing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CFW
Series
  • CFW
030
Armature Width
  • 030: 50mm
B
Armature Length
  • B: 125mm  D: 230mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
L05
Armature Lead
  • L05:0.5m lead(4x20AWG)，
    with 16M-4K connector
Stator Order No.
MFW
Series
  • MFW
030
Stator Width
  • 030: 55mm
L180
Stator Length
  • L180: 180mm
  • L270: 270mm
P
Version
  • P：High-Performance Version
    No Marking, Default Standard Version
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MFW030-L180 180 55 10.2 3 8 30 3.4
MFW030-L270 270 55 10.2 5 12 30 3.4
Parameter configuration
Product Model CFW030A CFW030B CFW030C CFW030D CFW030E CFW030F
Armature Length(mm) 125 230
Continuous Thrust(N) 90 180
Peak Thrust(N) 270 540

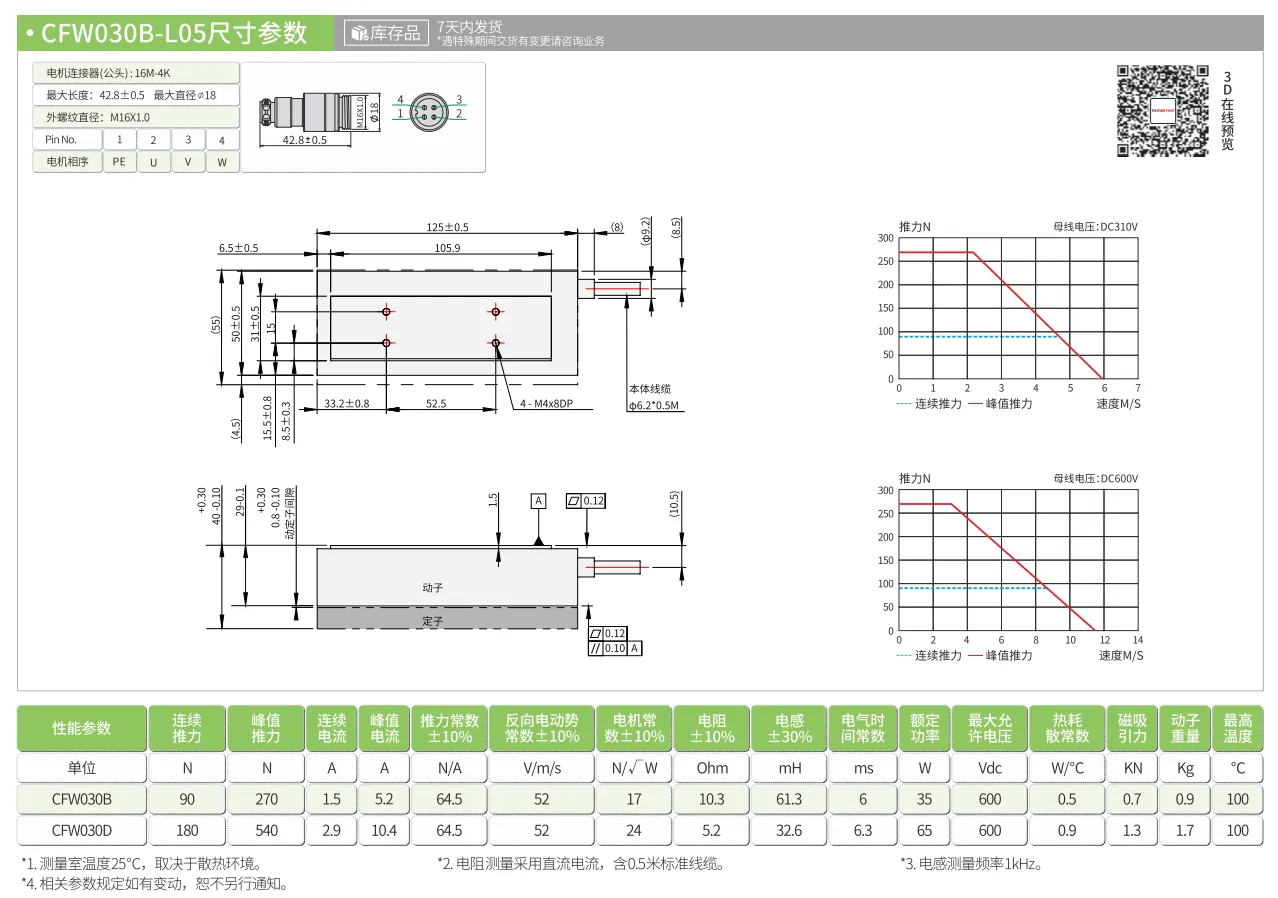

CFW030B

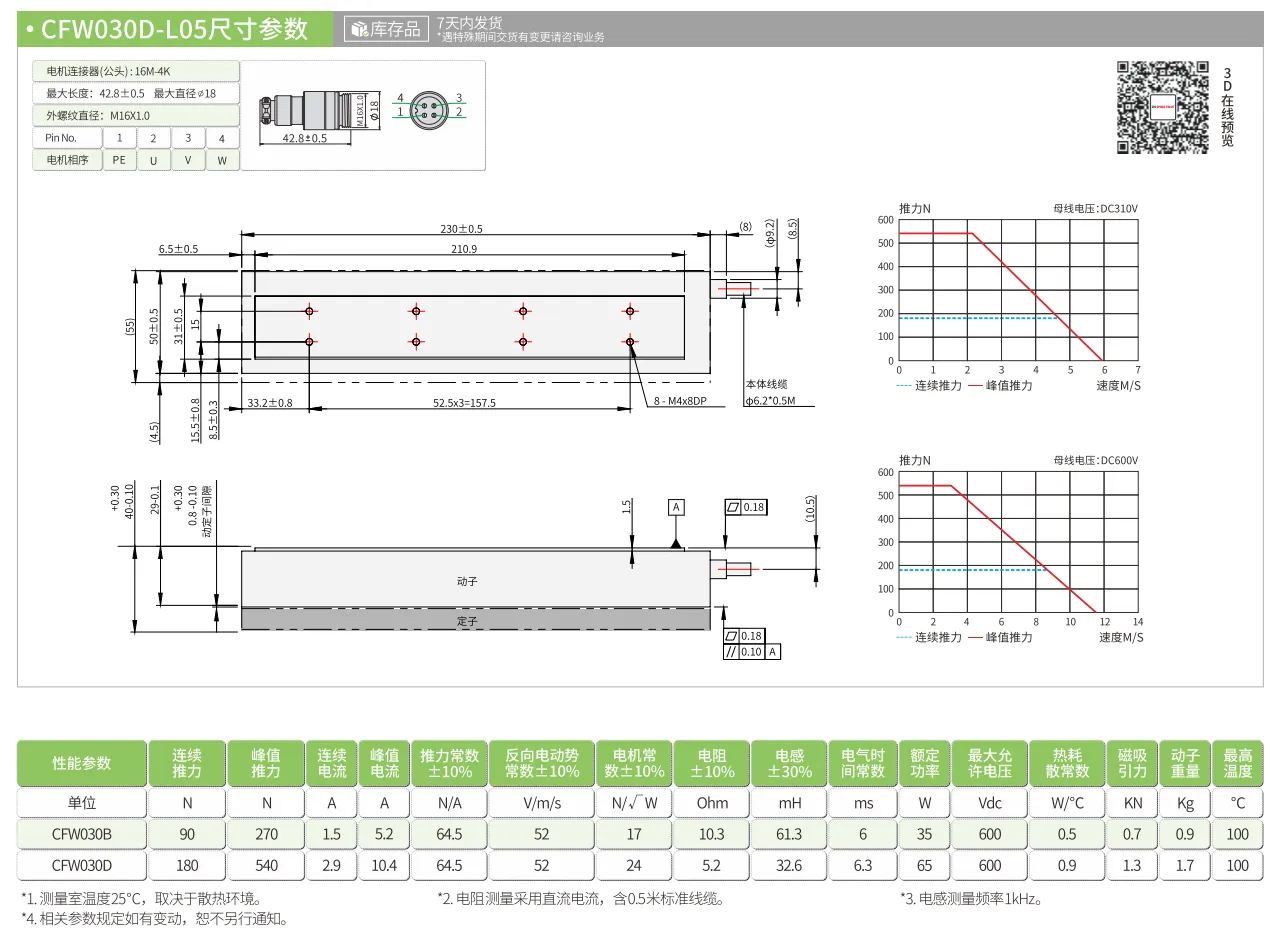

CFW030D
CFW030B
CFW030D
