Home Iron-Core Linear Motor CJM CJM050
CJM050

CJM050

Features

  • Iron Core Technology
  • Low Cogging Torque
  • High Acceleration
  • Compact Size

Applicable Industries

Semiconductor Industry Precision Laser Processing Industry SMT Industry Healthcare Industry Digital Printing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CJM
Series
  • CJM
050
Armature Width
  • 030:50mm 050:75mm
  • 080:100mm 100:125mm
B
Armature Length
  • B: 96mm  D: 176mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
LA05
Temperature Senso
  • L05: 0.5-meter lead (4x20AWG)
    with 16M-4K connector
Stators order number rules
MJM
Series
  • MJM
050
Armature Width
  • 030: 75mm
L80
Armature Length
  • L80: 80mm
  • L200: 200mm
Motor model Length LC Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MJM050-L80 80 75 10.3 1 4 20 4.88
MJM050-L200 200 75 10.3 4 10 20 4.88
Parameter configuration
Product Model CJM050A CJM050B CJM050C CJM050D CJM050E CJM050F
Armature Length(mm) 96 176
Continuous Thrust(N) 117.1 234.1
Peak Thrust(N) 370 740

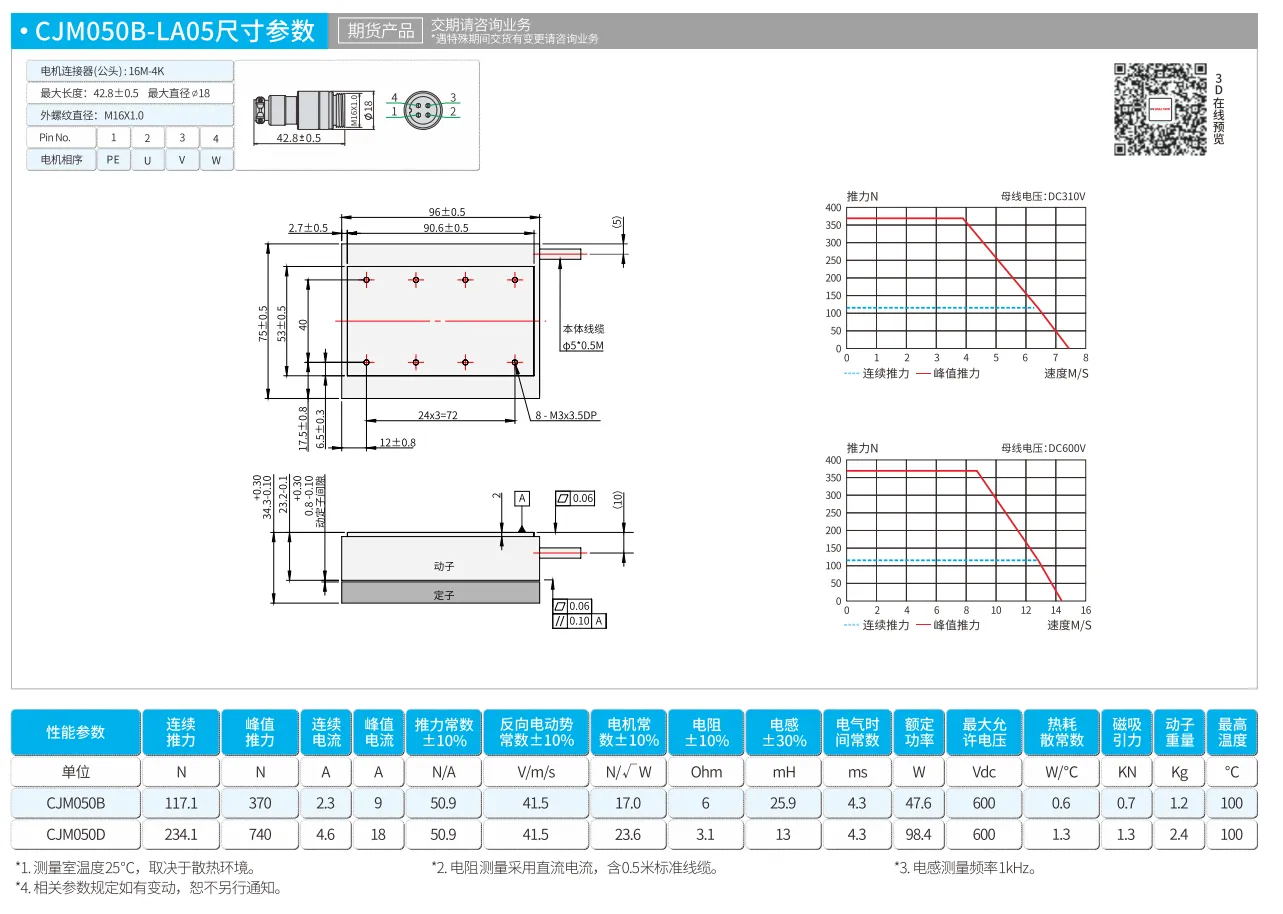

CJM050B

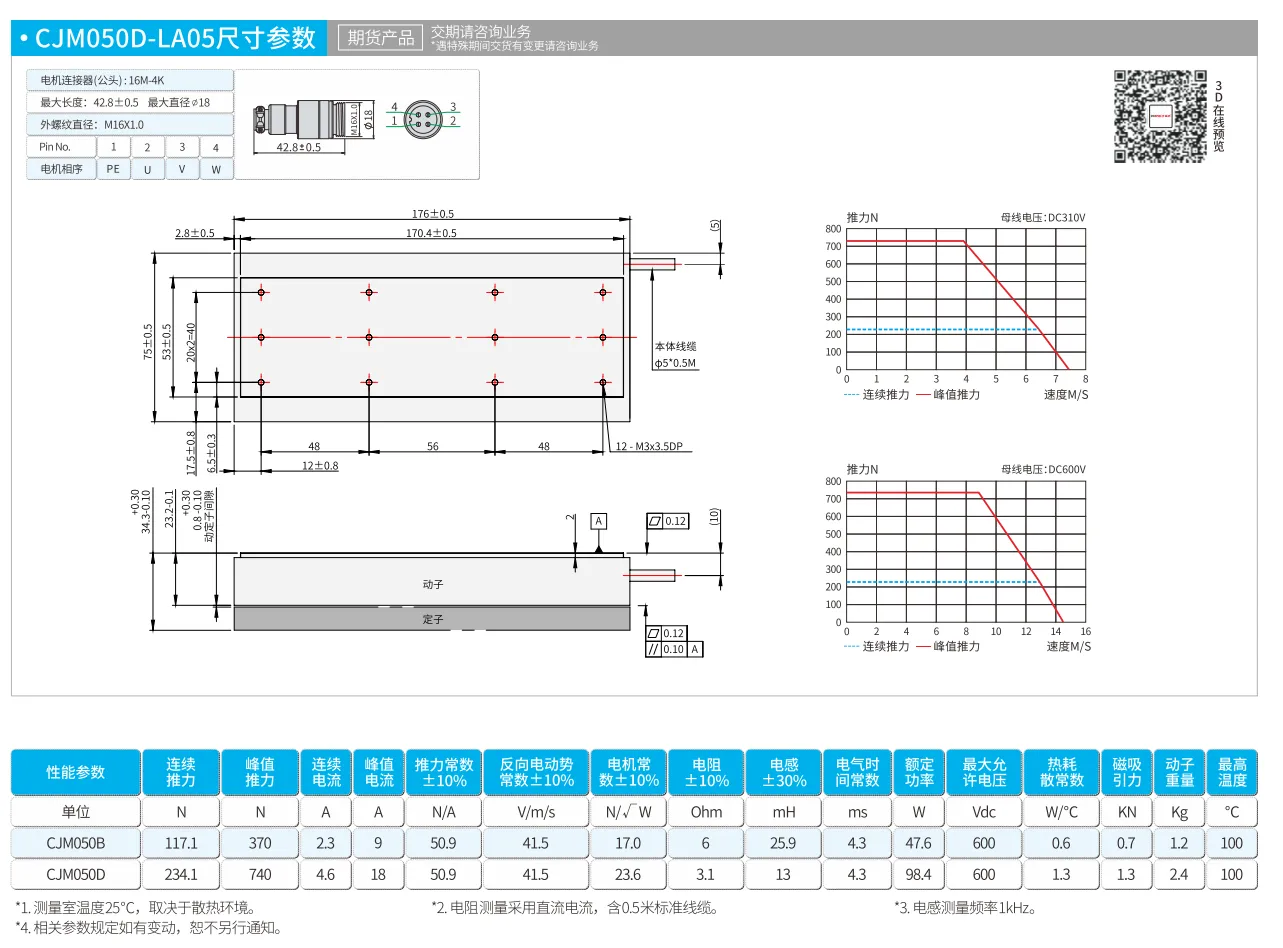

CJM050D
CJM050B
CJM050D
