CKM200

CKM200

Features

  • Iron Core Technology
  • Ultra-Low Cogging Torque
  • High Acceleration
  • High Rigidity

Applicable Industries

Solar PV Industry Lithium Battery New Energy Industry SMT Industry Healthcare Industry Digital Printing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CKM
Series
  • CKM
200
Armature Width
  • 030: 51mm  050: 71mm
  • 100:121mm 150: 171mm
  • 200: 221mm
D
Armature Length
  • D: 364mm  H: 700mm
  •
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
LF05
Armature lead
  • L05:0.5m lead(4x20AWG)，
    with WS20J4ZQ connecto
  • L05:0.5m lead(4x16AWG)，
    with WS20J4ZQ connecto
  • L05:0.5m lead(4x13AWG)，
    with WS20J4ZQ connecto
Stators order number rules
MKM
Series
  • MKM
200
Stator Width
  • 200: 250mm
L168
Stator Length
  • L168: 168mm
  • L252: 252mm
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MKM200-L168 168 250 13.8 1 4 42 23.9
MKM200-L252 252 250 13.8 2 6 42 23.9
Parameter configuration
Product Model CKM200A CKM200B CKM200C CKM200D CKM200E CKM200H
Armature Length(mm) 364 700
Continuous Thrust(N) 2862 5722
Peak Thrust(N) 6368 12736

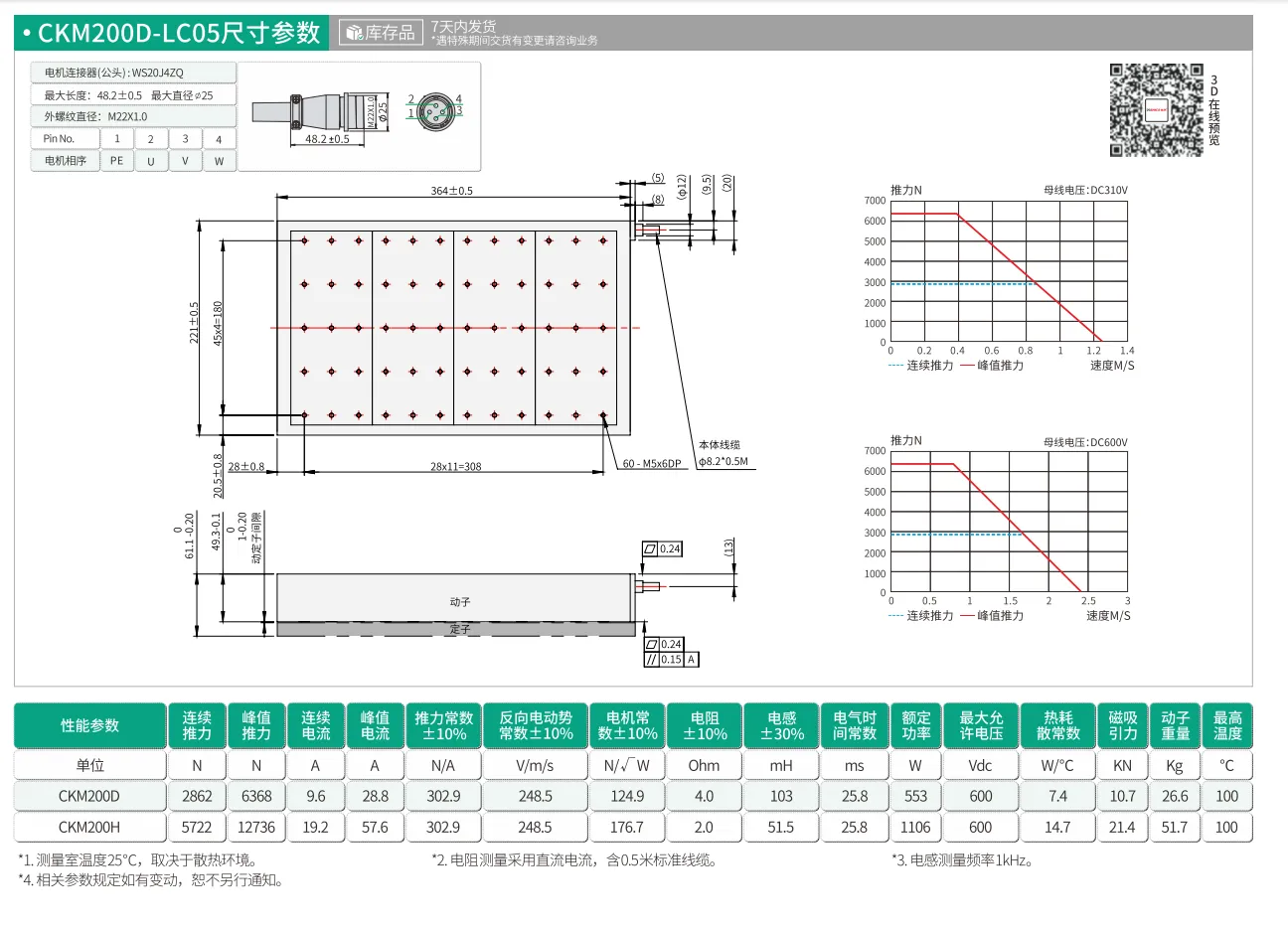

CKM200D

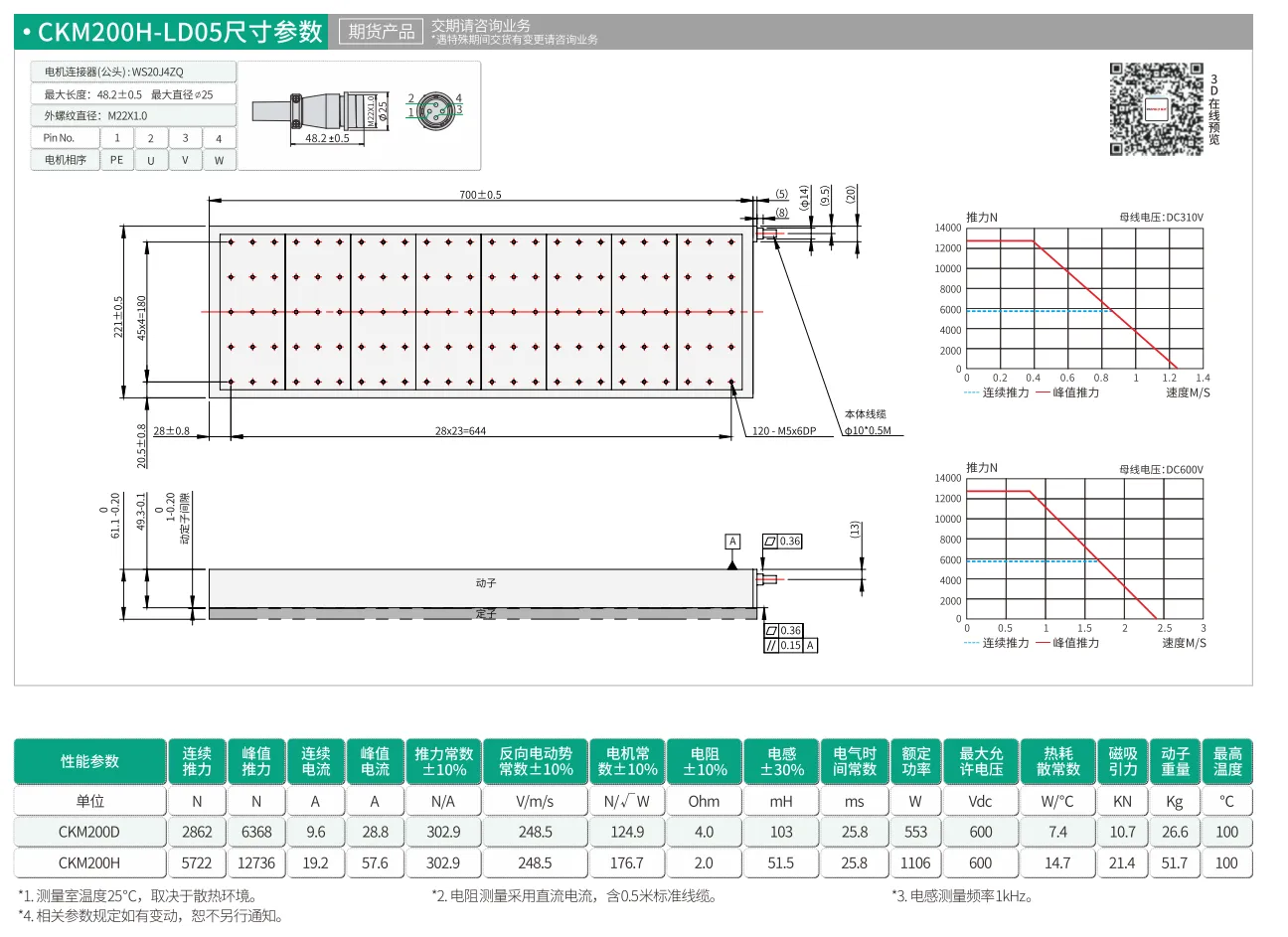

CKM200H
CKM200D
CKM200H
