Home Iron-Core Linear Motor CJM CJM030
CJM030

CJM030

Features

  • Iron Core Technology
  • Low Cogging Torque
  • High Acceleration
  • Compact Size

Applicable Industries

Precision Laser Processing Industry SMT Industry Healthcare Industry Digital Printing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CJM
Series
  • CJM
030
Armature Width
  • 030:50mm 050:75mm
  • 080:100mm 100:125mm
B
Armature Length
  • B: 96mm  D: 176mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
LA05
Temperature Senso
  • L05: 0.5-meter lead (4x20AWG)
    with 16M-4K connector
Stators order number rules
MJM
Series
  • MJM
030
Armature Width
  • 030: 50mm
L80
Armature Length
  • L80: 80mm
  • L200: 200mm
Motor model Length LC Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MJM030-L80 80 50 10.3 1 4 20 3.25
MJM030-L200 200 50 10.3 4 10 20 3.25
Parameter configuration
Product Model CJM030A CJM030B CJM030C CJM030D CJM030E CJM030F
Armature Length(mm) 96 176
Continuous Thrust(N) 68.1 136.2
Peak Thrust(N) 215 430

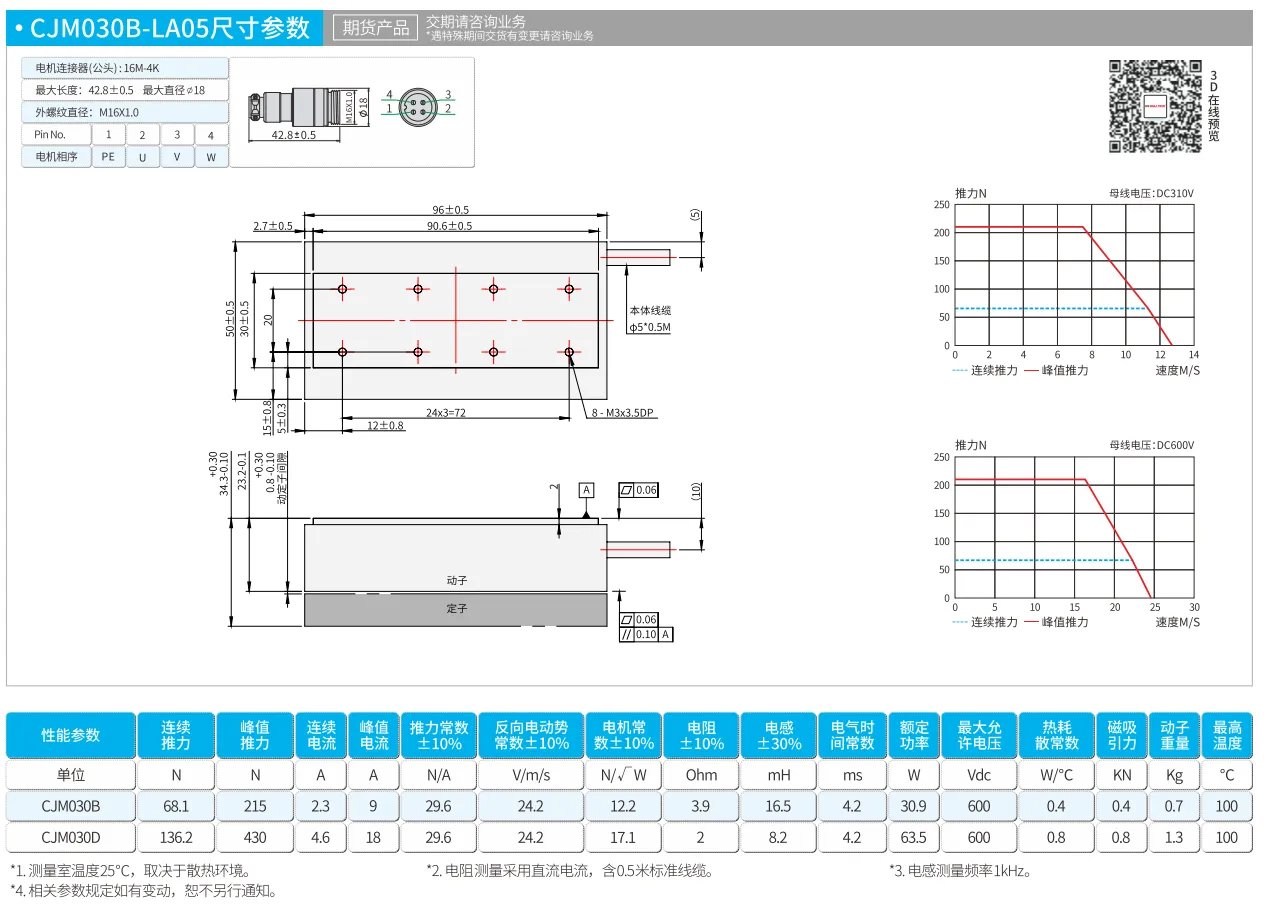

CJM030B

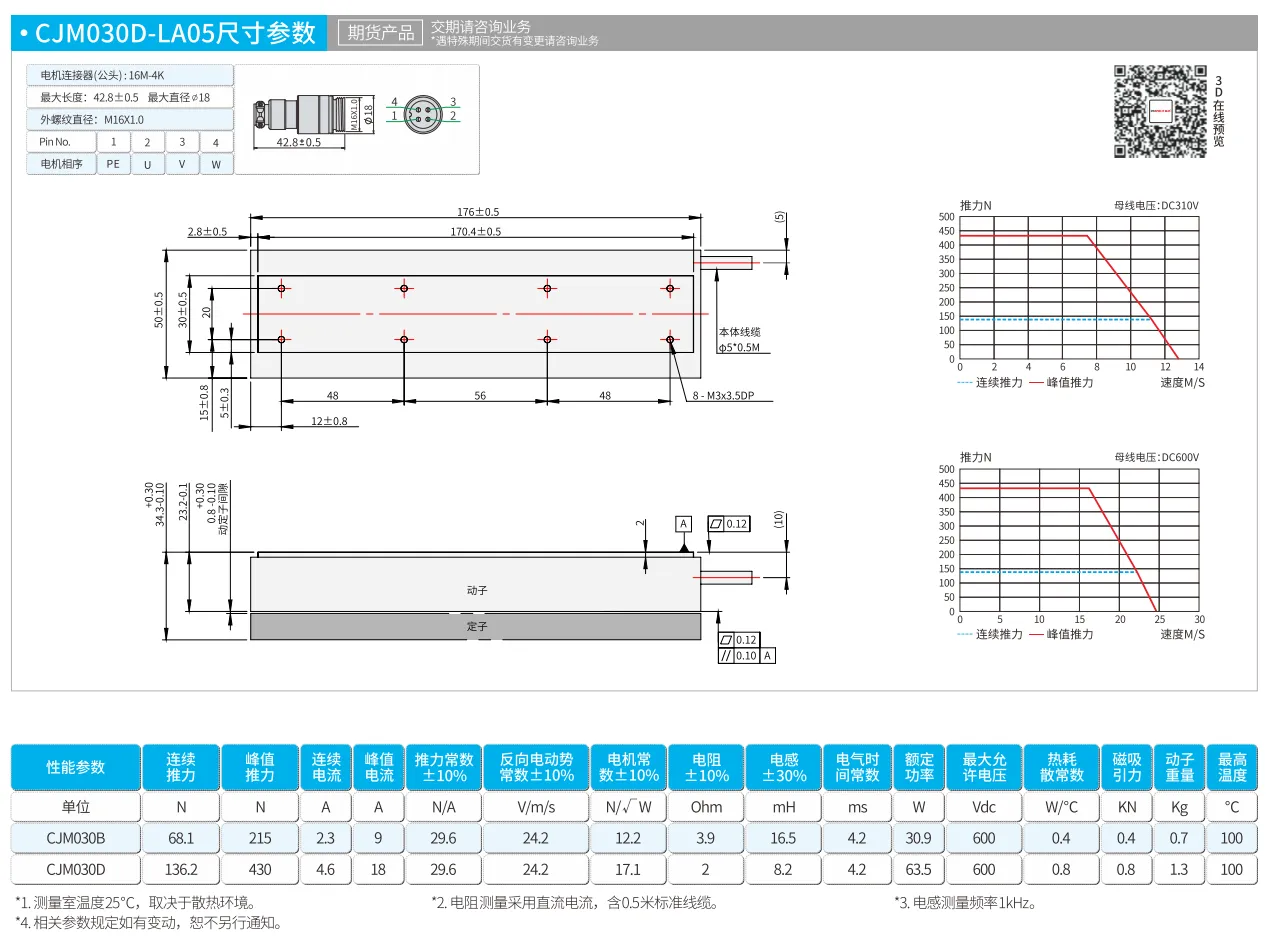

CJM030D
CJM030B
CJM030D
