Home Iron-Core Linear Motor CJM CJM080
CJM080

CJM080

Features

  • Iron Core Technology
  • Low Cogging Torque
  • High Acceleration
  • Compact Size

Applicable Industries

Display Panel Industry Solar PV Industry Lithium Battery New Energy Industry SMT Industry Healthcare Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CJM
Series
  • CJM
080
Armature Width
  • 030:50mm 050:75mm
  • 080:100mm 100:125mm
B
Armature Length
  • B: 96mm  D: 176mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A,B,C,D etc.
LA05
stator lead-out
  • L05:0.5m lead-out (4x20AWG)，
    compatible with 16M-4K connector
Stators order number rules
MJM
Series
  • MJM
080
Armature width
  • 080: 100mm
L80
Armature length
  • L80: 80mm
  • L200: 200mm
Motor model  Length (LC) Width Height A Z Magnetic pole pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MJM080-L80 80 100 10.3 1 4 20 6.5
MJM080-L200 200 100 10.3 4 10 20 6.5
Parameter configuration
Product Model CJM080A CJM080B CJM080C CJM080D CJM080E CJM080F
Armature Length(mm) 96 176
Continuous Thrust(N) 174.6 349.1
Peak Thrust(N) 550 1100

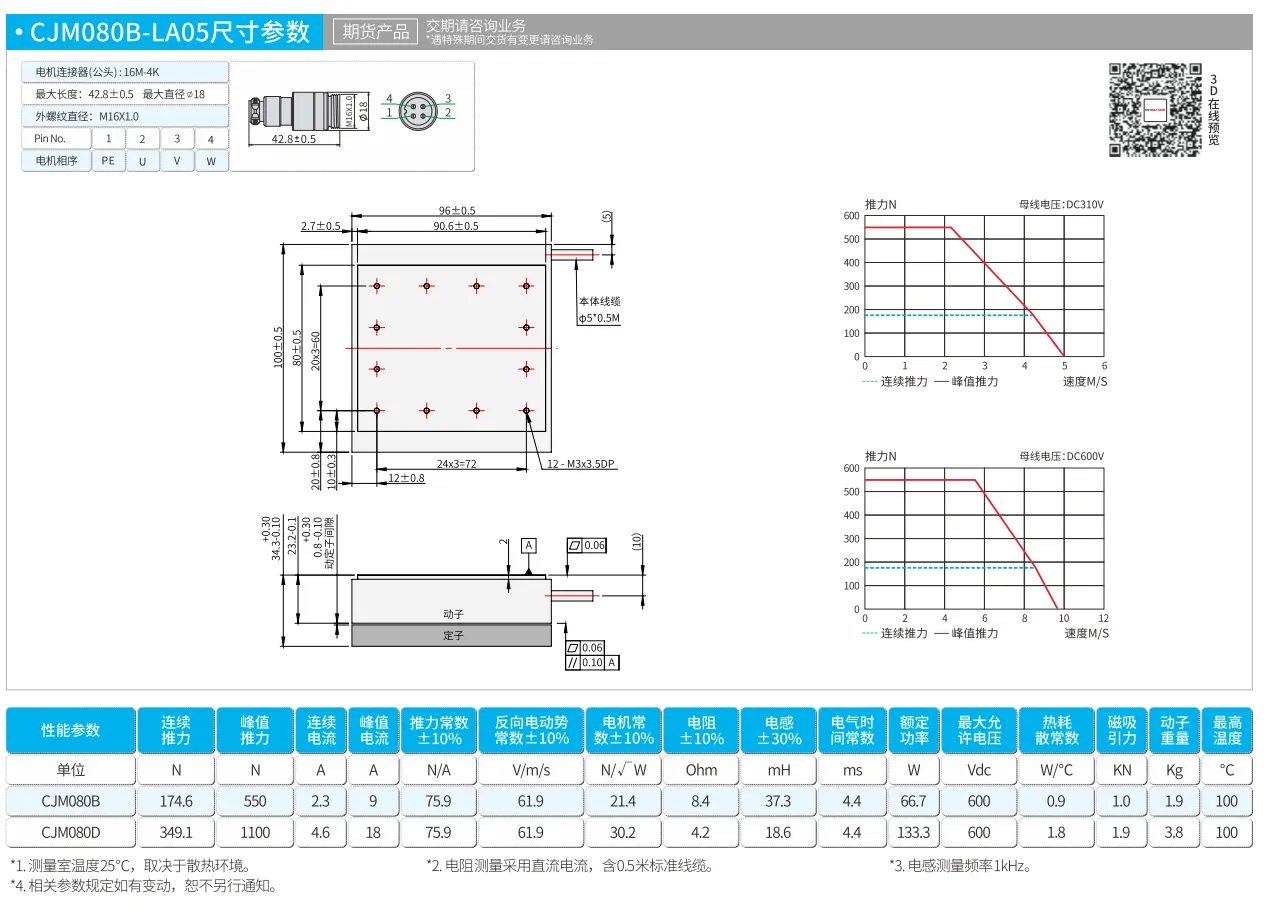

CJM080B

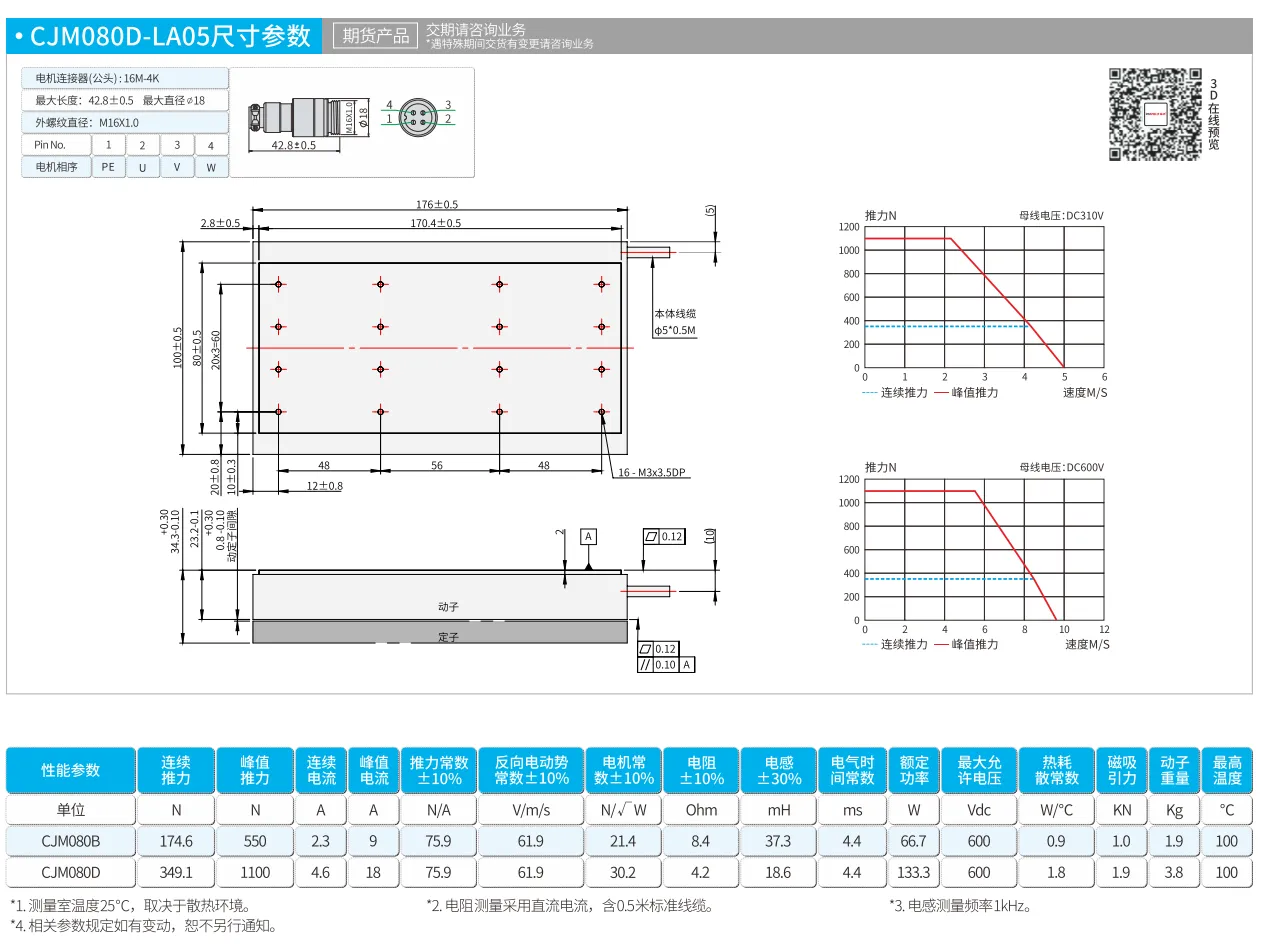

CJM080D
CJM080B
CJM080D
