Home Linear encoder SH04 SH04 Incremental optical encoder
SH04 Incremental optical encoder

SH04 Incremental optical encoder

Features

  • Small and compact
  • High response speed
  • Insensitive to temperature changes
  • LED status indicator light
  • Easy to disassemble and install

Applicable Industries

Display Panel Industry SMT Industry Precision Testing Industry Dispensing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Readhead ordering rules
SH
Series
  • SH: Incremental optical grating ruler
04
grating pitch
  • 04:40μm
A
output
  • A: ABZ
Z
resolution
  • X:1.0μm
  • Z:0.5μm
  • Y:0.1μm
05
Cable length
  • 05:0.5m
A
Connector
  • A: 9-pin D-type
    Connector
QT
Type

Rules for Order Numbers of Optical Grating Rulers
SH
Series
  • SH: Incremental optical grating ruler
04
grating pitch
  • 04:40μm
L500
Length
  • L500:500mm
QT
type
Parameter configuration
Reading head Communication protocol The fastest response speed Operating temperature Magnetic Grid type Positional accuracy Repeatability accuracy RDetect the effective length Coefficient of thermal expansio
SH Series ABZ differential output

0.1μm:1.6m/s

0.5μm:8m/s

1μm:16m/s

 0℃至+65°C linear

±2.5μm/m(25°C after position compensation)，
0.1μm:±0.5μm,
0.5μm:±1μm,
1μm:±5μm,
(Ideal assemblyrelationship)
 10m 10.1±0.2μm/m/℃

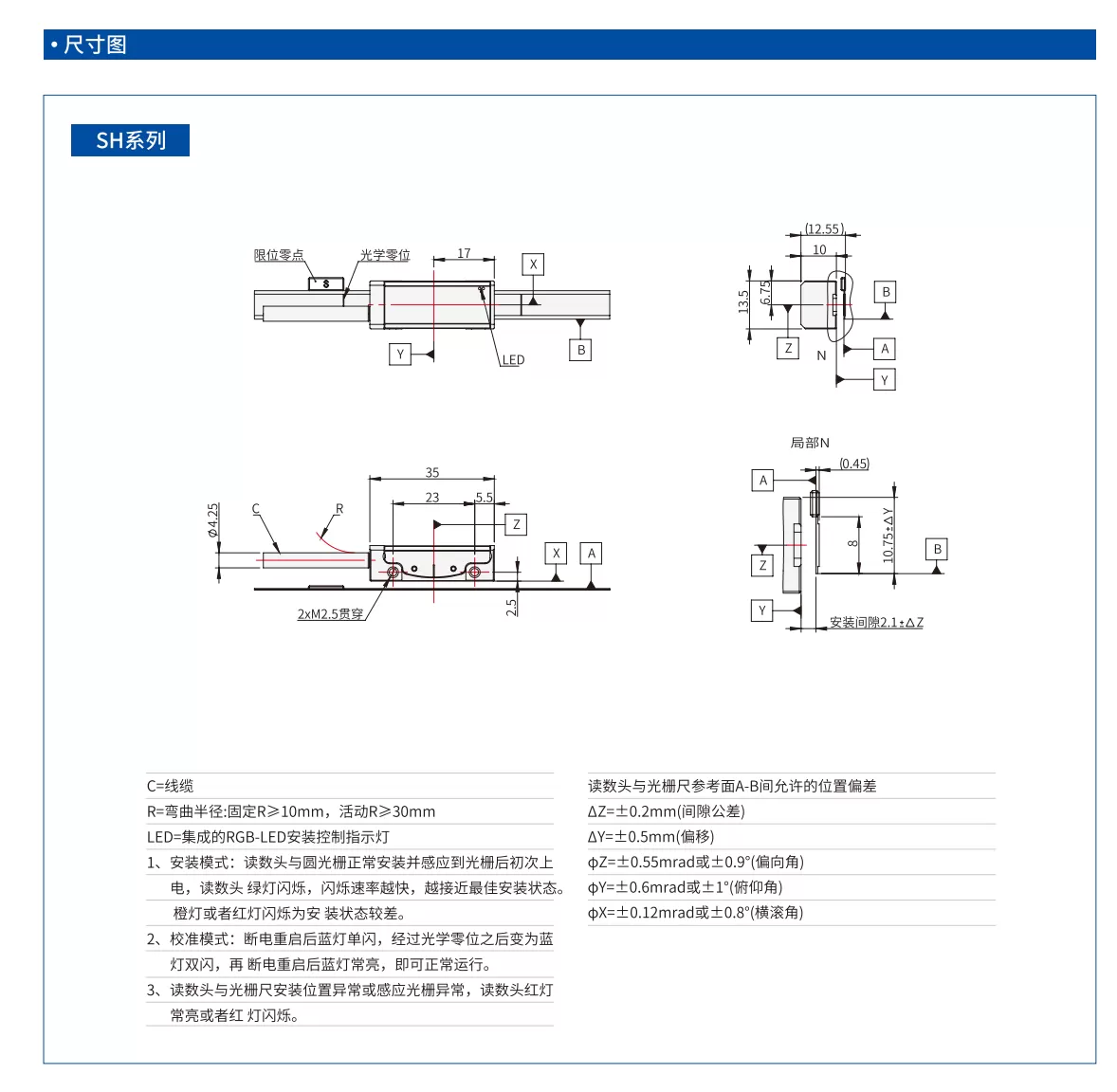

SH04 Dimension diagram

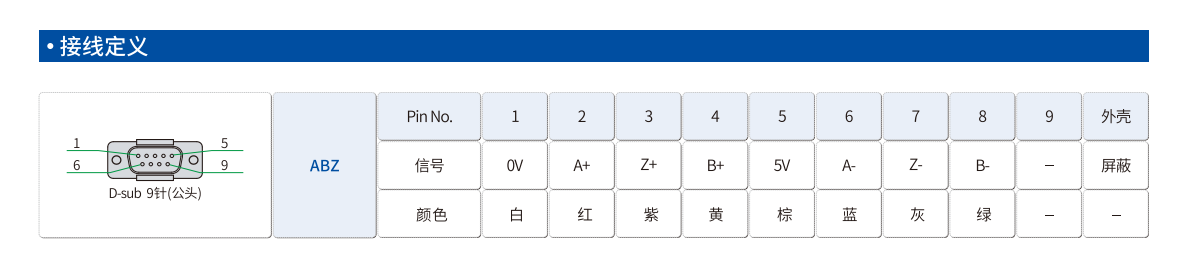

SH04 Wiring definition
SH04 Dimension diagram
SH04 Wiring definition
