SA32 absolute value optical grating

SA32 absolute value optical grating

Features

  • Small and compact
  • High response speed
  • Insensitive to temperature changes
  • Insensitive to pollution

Applicable Industries

Display Panel Industry Solar PV Industry SMT Industry Digital Printing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Readhead ordering rules
SA32
Series
  • SA: Absolute value optical grating
E
Communication protocol
  • E:EnDat2.2
H
Resolution
  • H: 0.005μm
  • Y: 0.01μm
05
Cable length
  • 05:0.5m
A
Connector
  • A: 9-pin D-type
    Connector
MC
Type

Rules for Order Numbers of Optical Grating Rulers
SA32
Series
  • SA: absolute value optical grating
L500
Length
  • L500:500mm
MC
type
Parameter configuration
Reading head Communication protocol Voltage and current The fastest response speed Operating temperature Magnetic Grid type Positional accuracy Repeatability accuracy RDetect the effective length Coefficient of thermal expansio
SA Series EnDat 2.2

5V±10%，200mA(No-load)

 10m/s 0℃至+65°C linear

±2.5μm/m(25°C after position compensation)，
±0.5μm (Ideal assembly relationship)
 10m 10.1±0.2μm/m/℃
SA32 Dimension diagram
SA32 Wiring definition

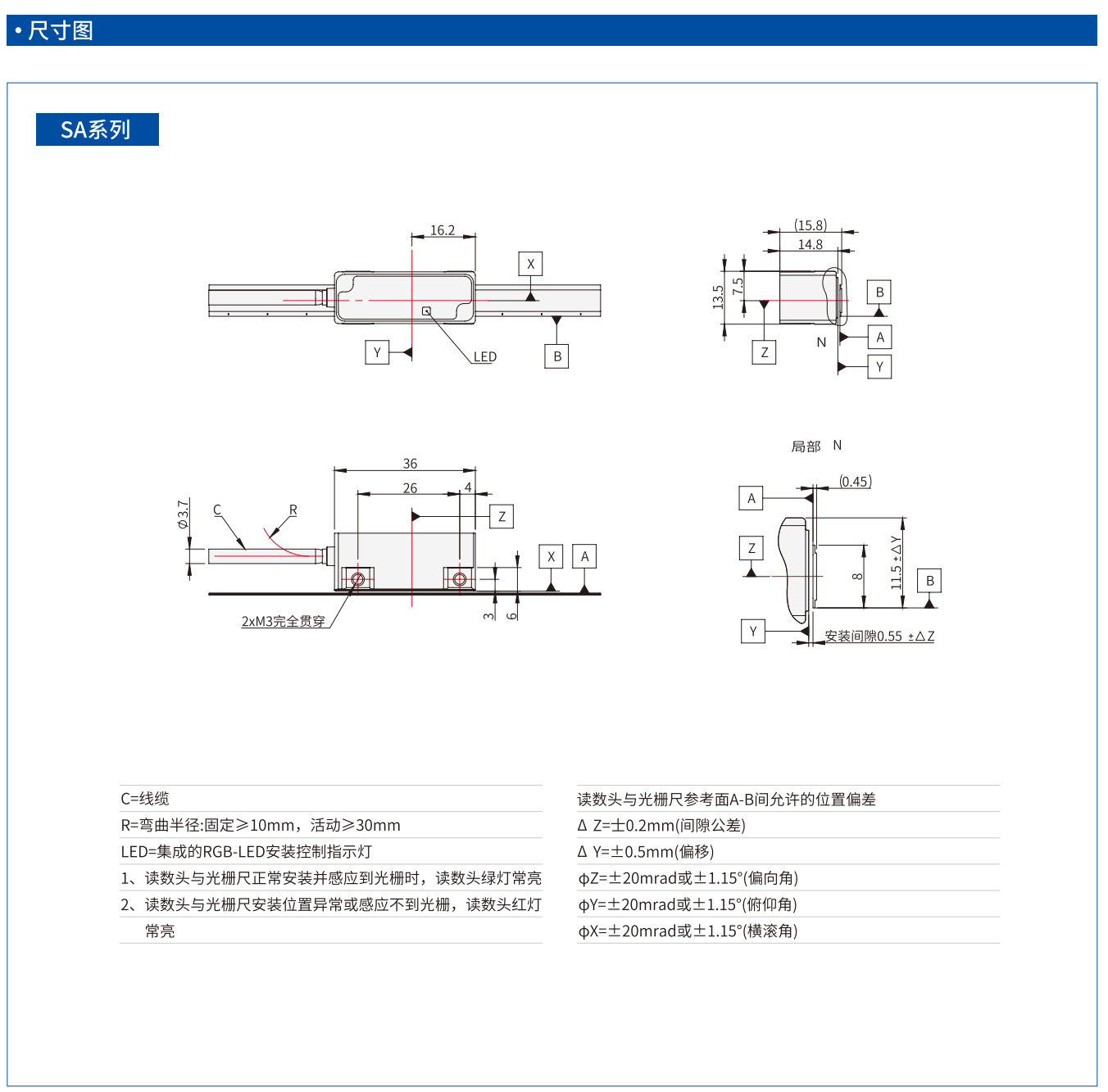

SA32 Dimension diagram

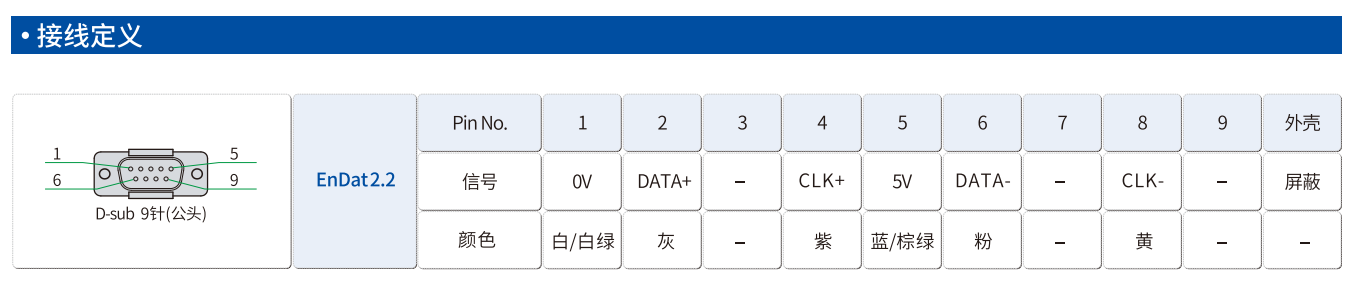

SA32 Wiring definition
