CFS045 Ironcore Linear Motor

CFS045 Ironcore Linear Motor

Features

  • Iron Core Technology
  • Low Cogging Torque
  • High Acceleration
  • Economical

Applicable Industries

Display Panel Industry Lithium Battery New Energy Industry SMT Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CFS
Series
  • CFS
045
Armature Width
  • 035: 35mm 045: 45mm
  • 055: 55mm 065: 65mm
  • 075: 75mm 095: 95mm
  • 125: 125mm
A
Armature Length
  • A: 87.1mm D: 281.5mm
  • B: 151.9mm E: 346.3mm
  • C: 216.7mm F: 411.1mm
A
Winding Code
  • **standard winding
    "unmarked"
  • A, B, C, D, etc.
L05
Armature lead
  • L05:0.5m lead(4x20AWG)，
    with 16M-4K connector
Stators order number rules
MFS
Series
  • MFS
045
Stator Width
  • 045: 40mm
L128
Stator Length
  • L128: 128mm
  • L192: 192mm
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MFS045-L128 128 40 9.5 1 4 32 1.9
MFS045-L192 192 40 9.5 1 6 32 1.9
Parameter configuration

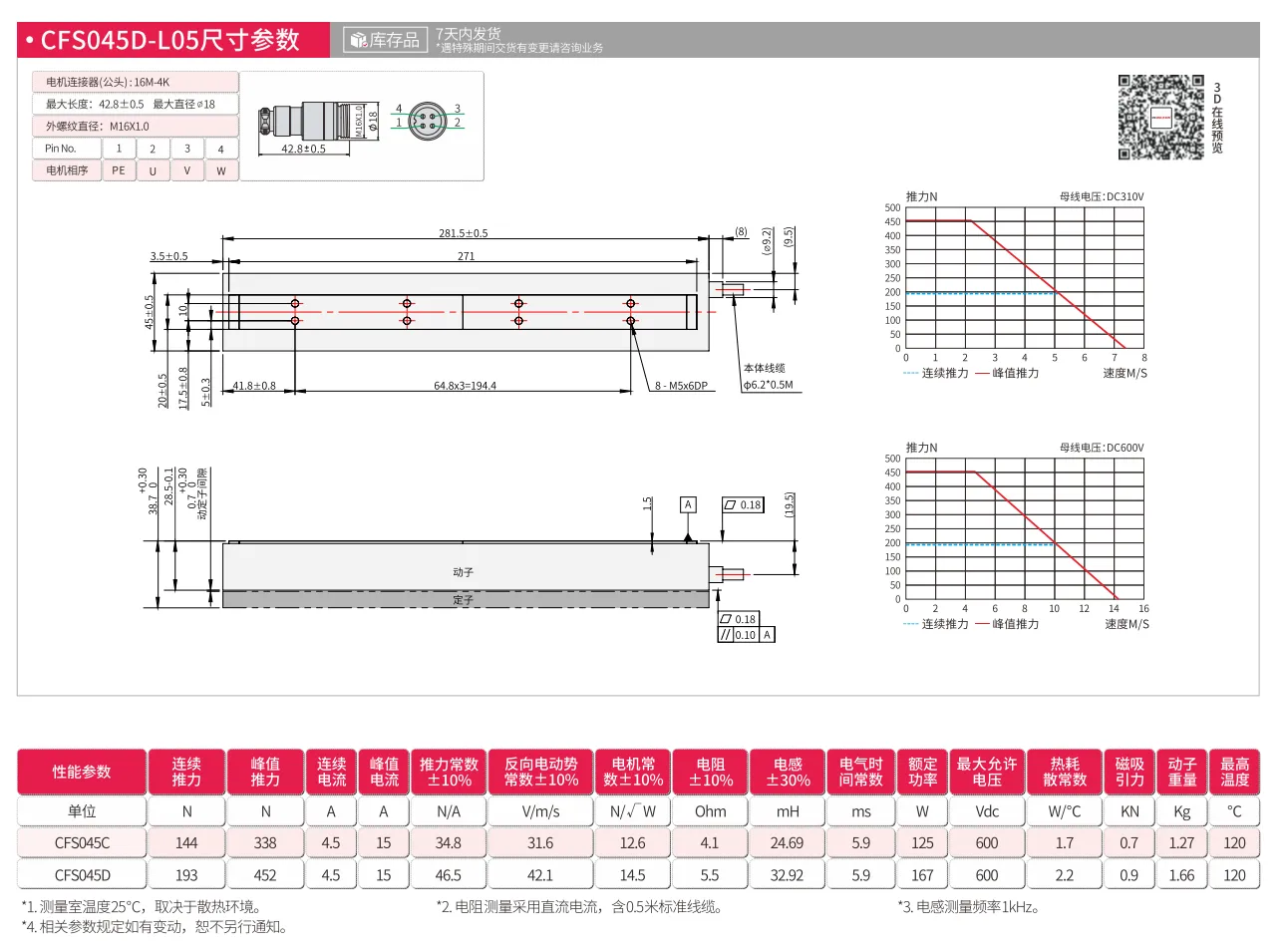

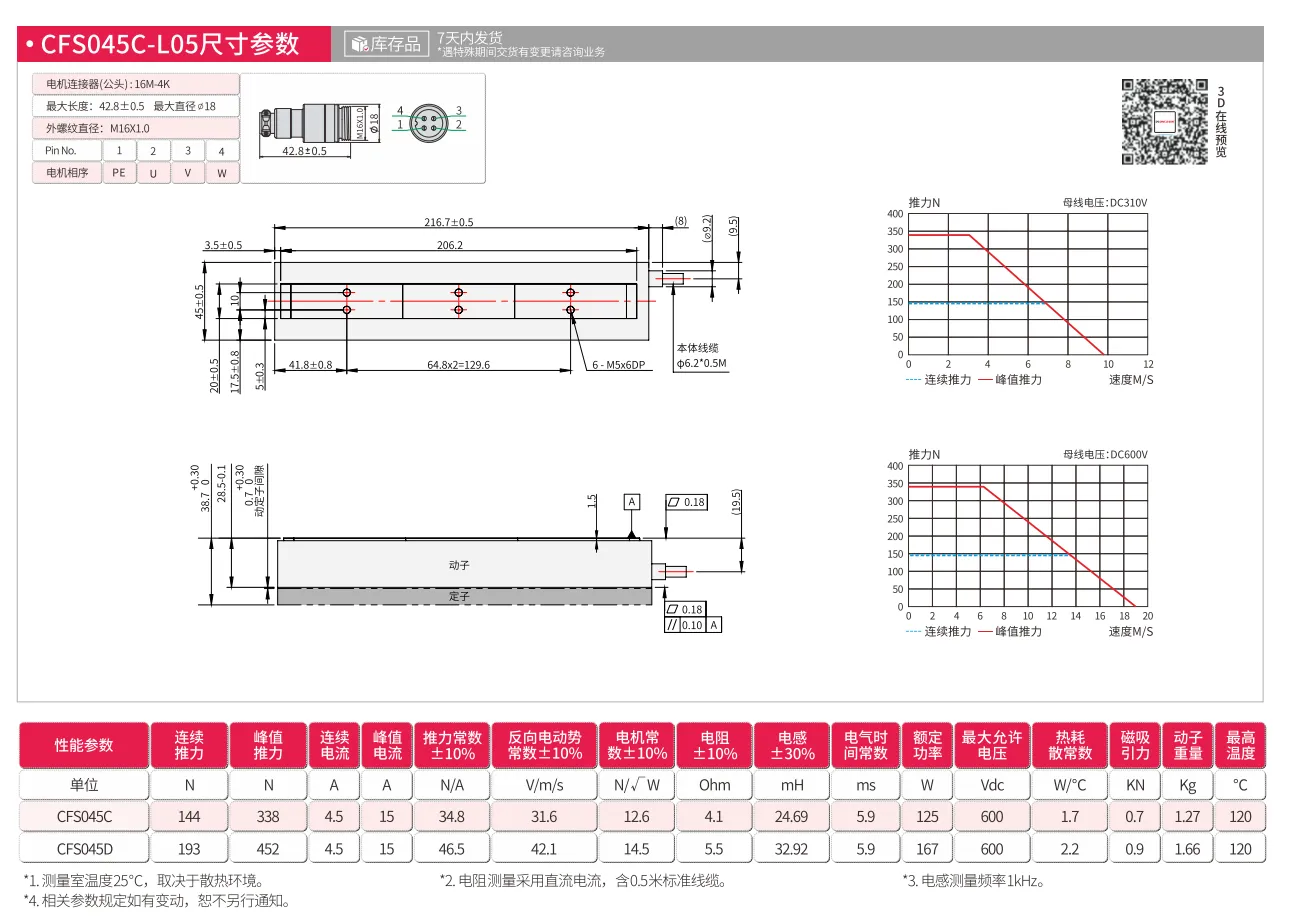

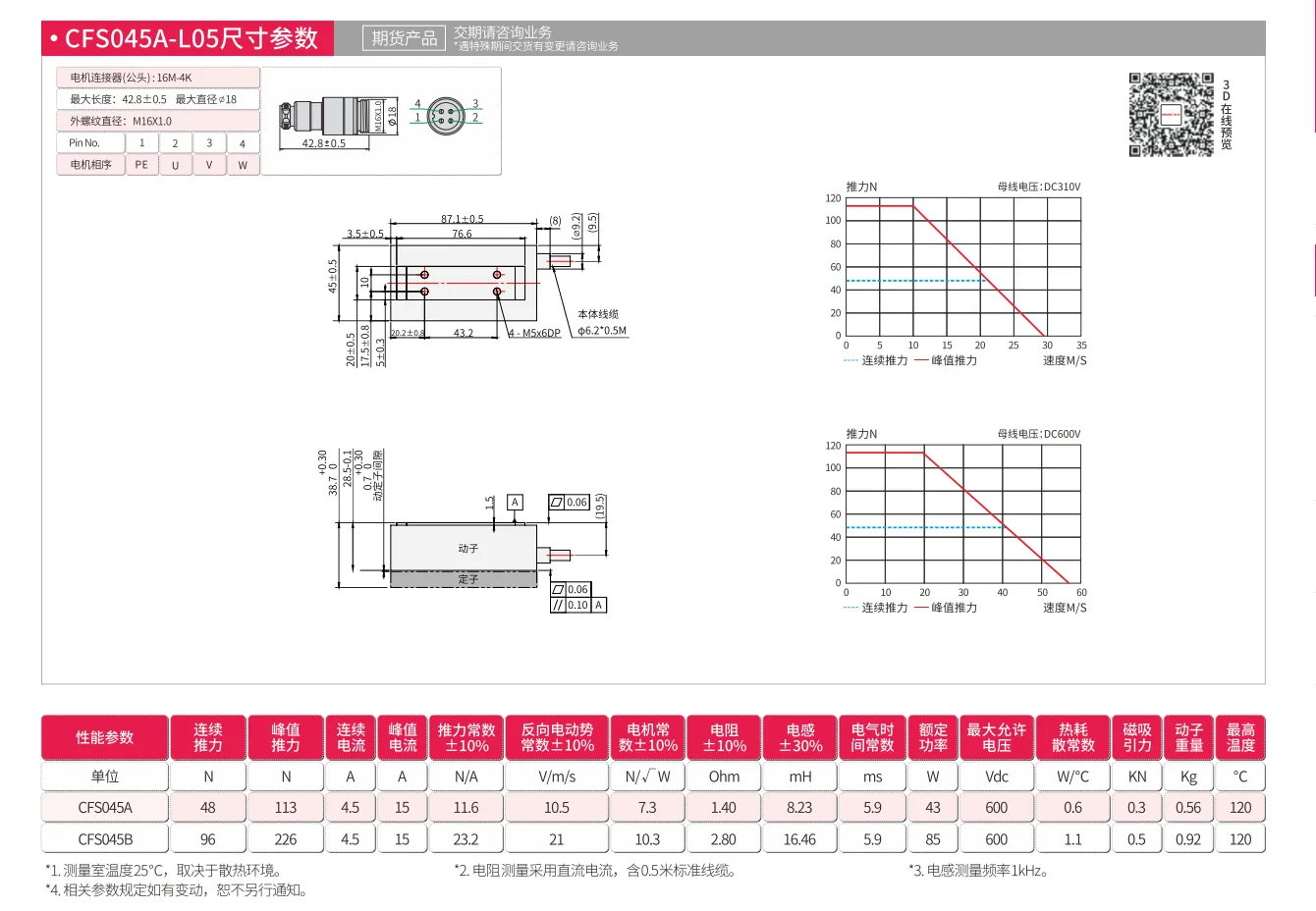

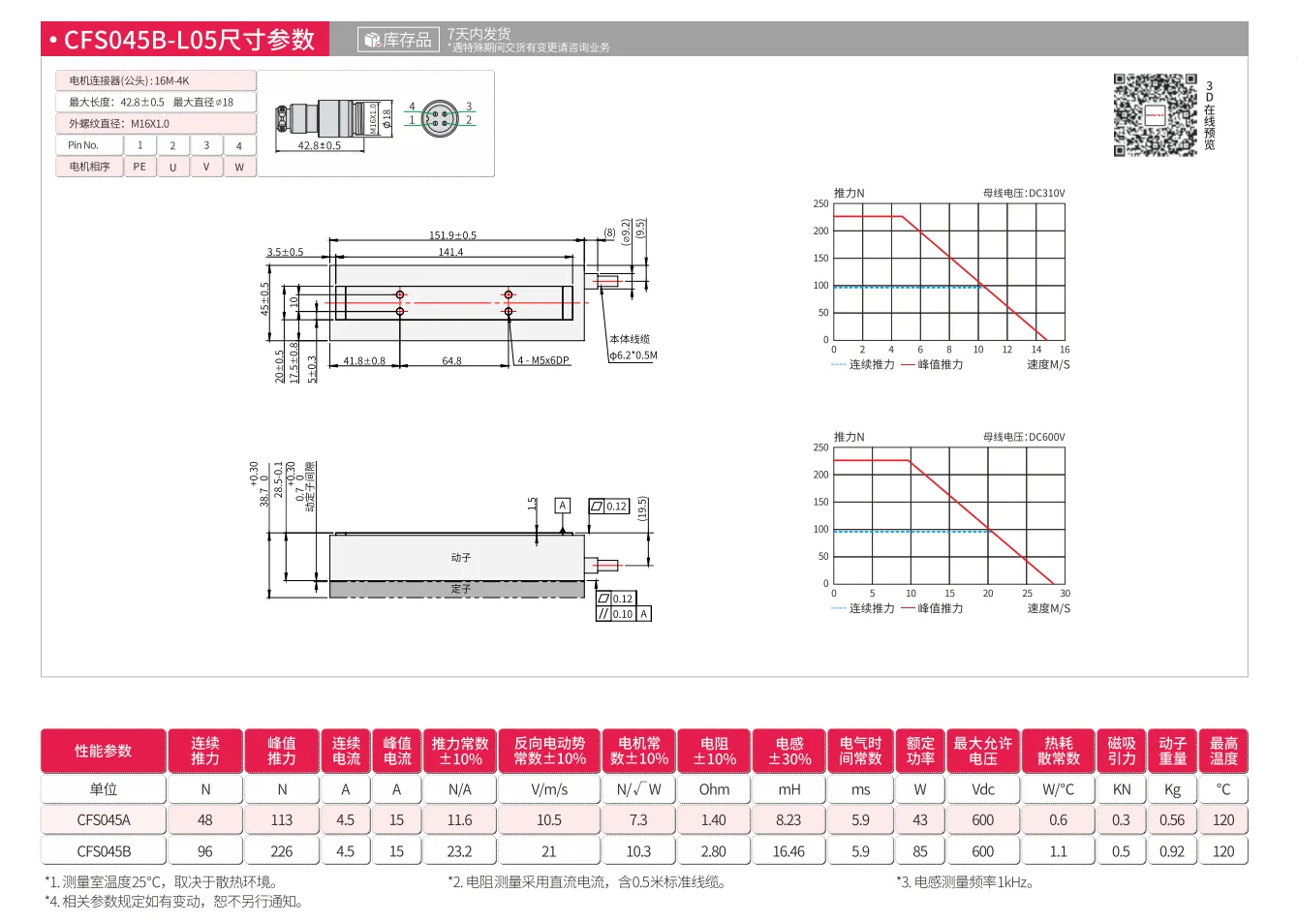

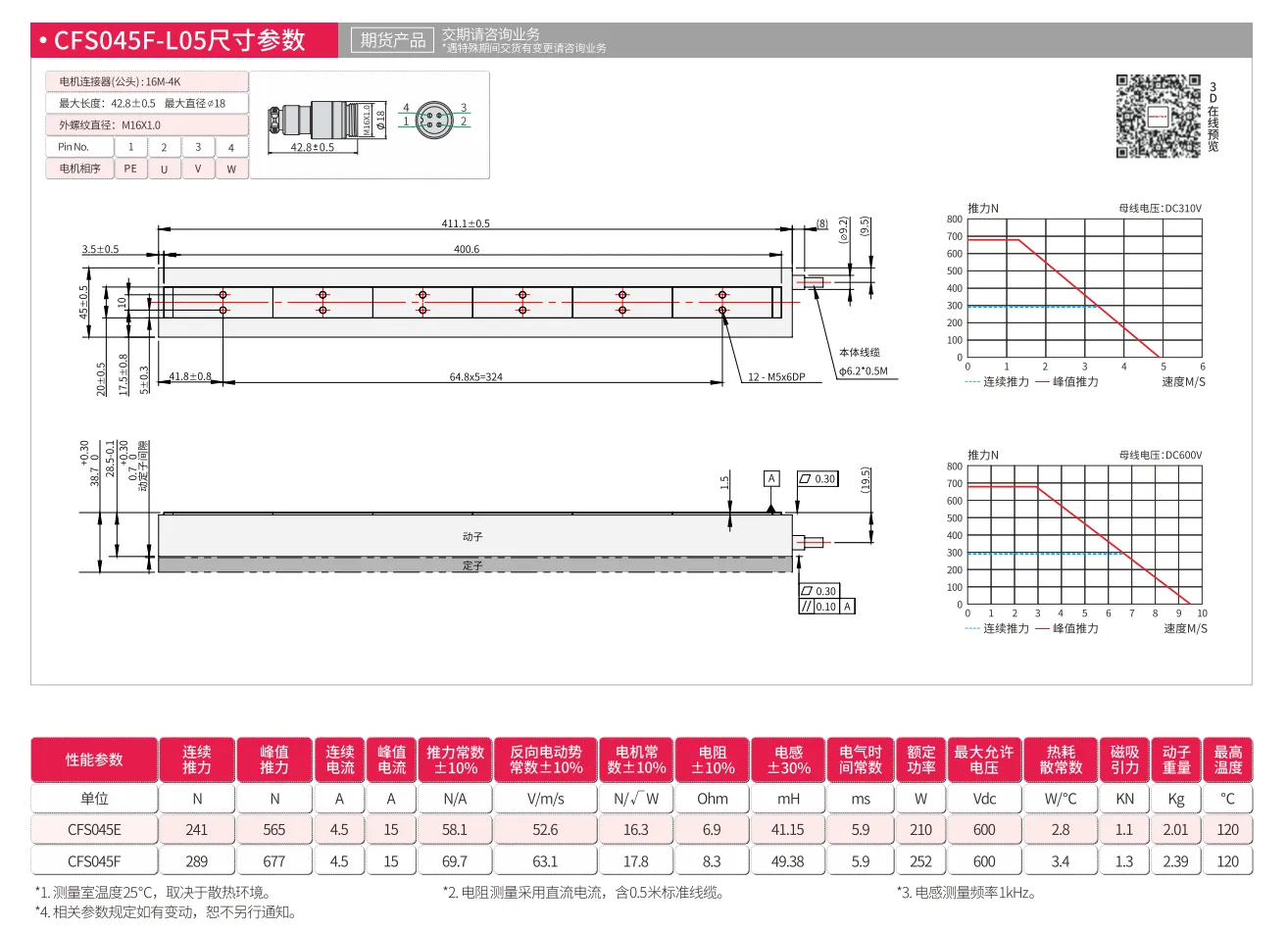

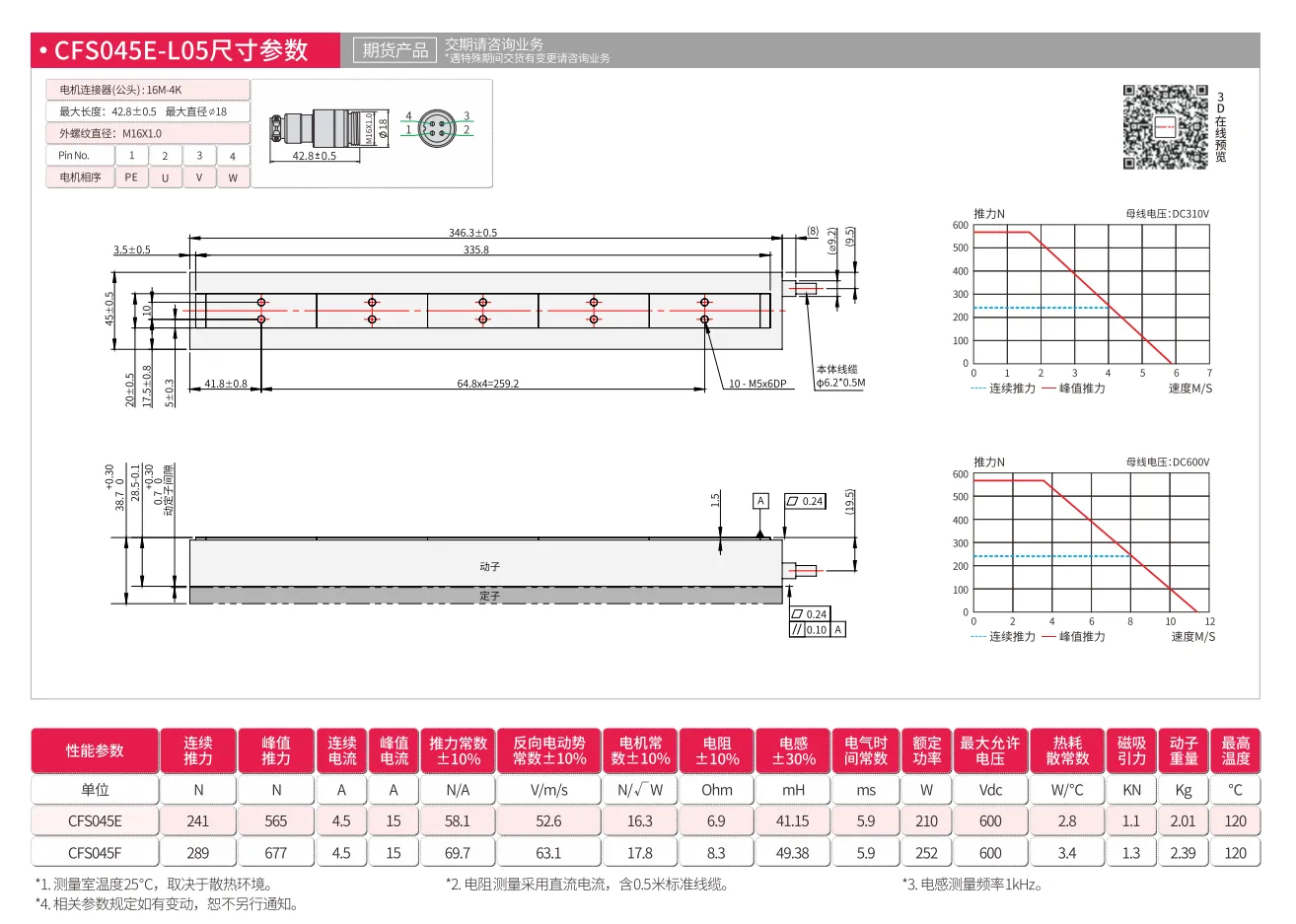

Product Model CFS045A CFS045B CFS045C CFS045D CFS045E CFS045F
Armature Length(mm) 87.1

151.9

 216.7 281.5 346.3 411.1
Continuous Thrust(N) 48 96 144 193 241 289
Peak Thrust(N) 113 226 338 452 565 677
CFS045A
CFS045B
CFS045C
CFS045D
CFS045E
CFS045F
CFS045A
CFS045B
CFS045C
CFS045D
CFS045E
CFS045F
