CFS065 Direct Drive Linear Motor

CFS065 Direct Drive Linear Motor

Features

  • Iron Core Technology
  • Low Cogging Torque
  • High Acceleration
  • Economical

Applicable Industries

Semiconductor Industry Solar PV Industry Lithium Battery New Energy Industry Digital Printing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Online Conversation
Movers order number rules
CFS
Series
  • CFS
065
Armature Width
  • 035: 35mm 045: 45mm
  • 055: 55mm 065: 65mm
  • 075: 75mm 095: 95mm
  • 125: 125mm
A
Armature Length
  • A: 87.1mm D: 281.5mm
  • B: 151.9mm E: 346.3mm
  • C: 216.7mm F: 411.1mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
L05
Armature lead
  • L05:0.5m lead(4x20AWG)，
    with 16M-4K connector
Stator Order No.
MFS
Series
  • MFS
065
Stator Width
  • 065: 60mm
L128
Stator Length
  • L128: 128mm
  • L192: 192mm
Motor ModelLength (LC)WidthHeightAZMagnetic Pole PitchMass
UnitmmmmmmPCSPCSmmkg/m
MFS065-L128128609.514323.2
MFS065-L192192609.516323.2
Parameter configuration
Product ModelCFS065ACFS065BCFS065CCFS065DCFS065ECFS065F
Armature Length(mm)87.1151.9216.7281.5346.3411.4
Continuous Thrust(N)96193289385481577
Peak Thrust(N)22645267790311291355

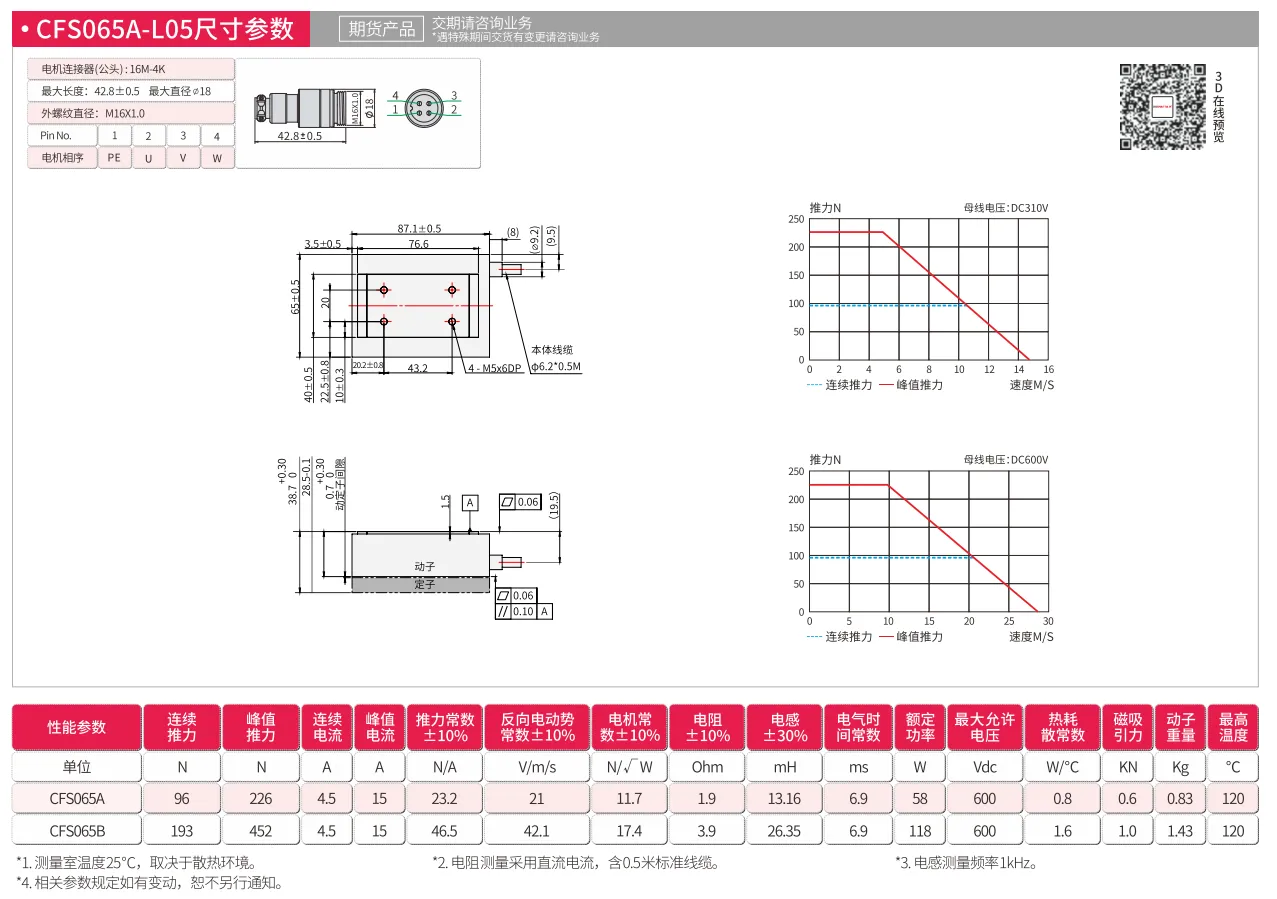

CFS065A

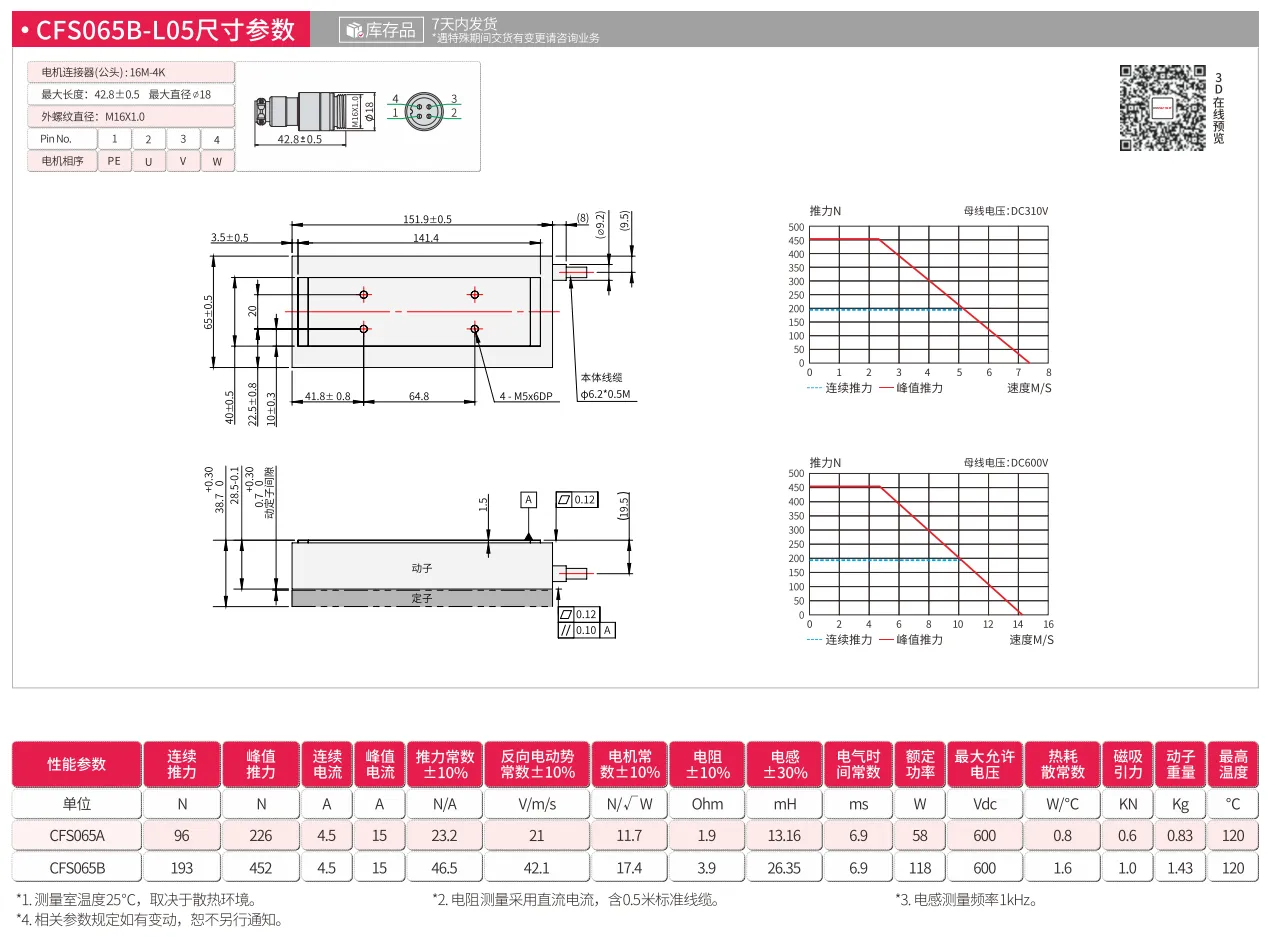

CFS065B

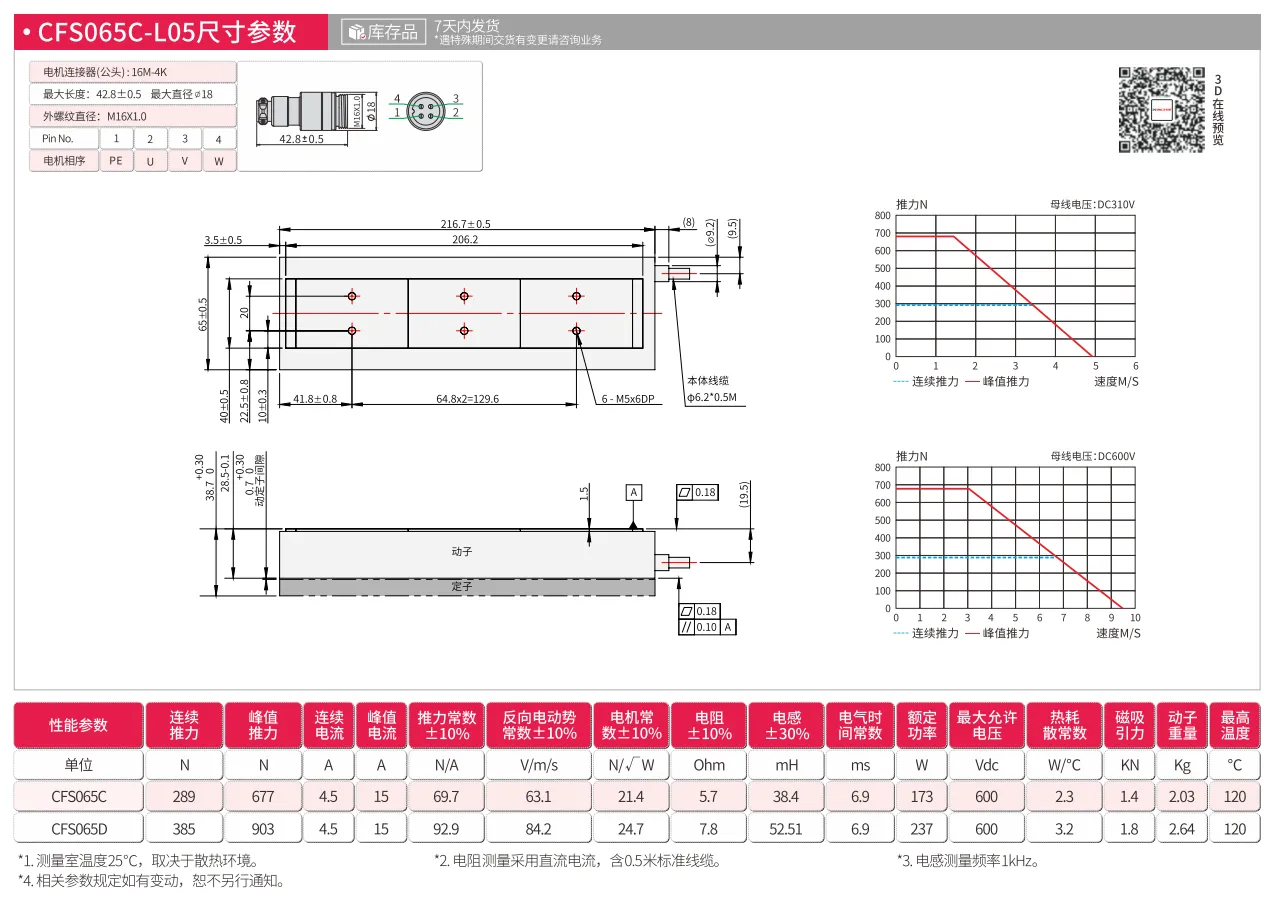

CFS065C

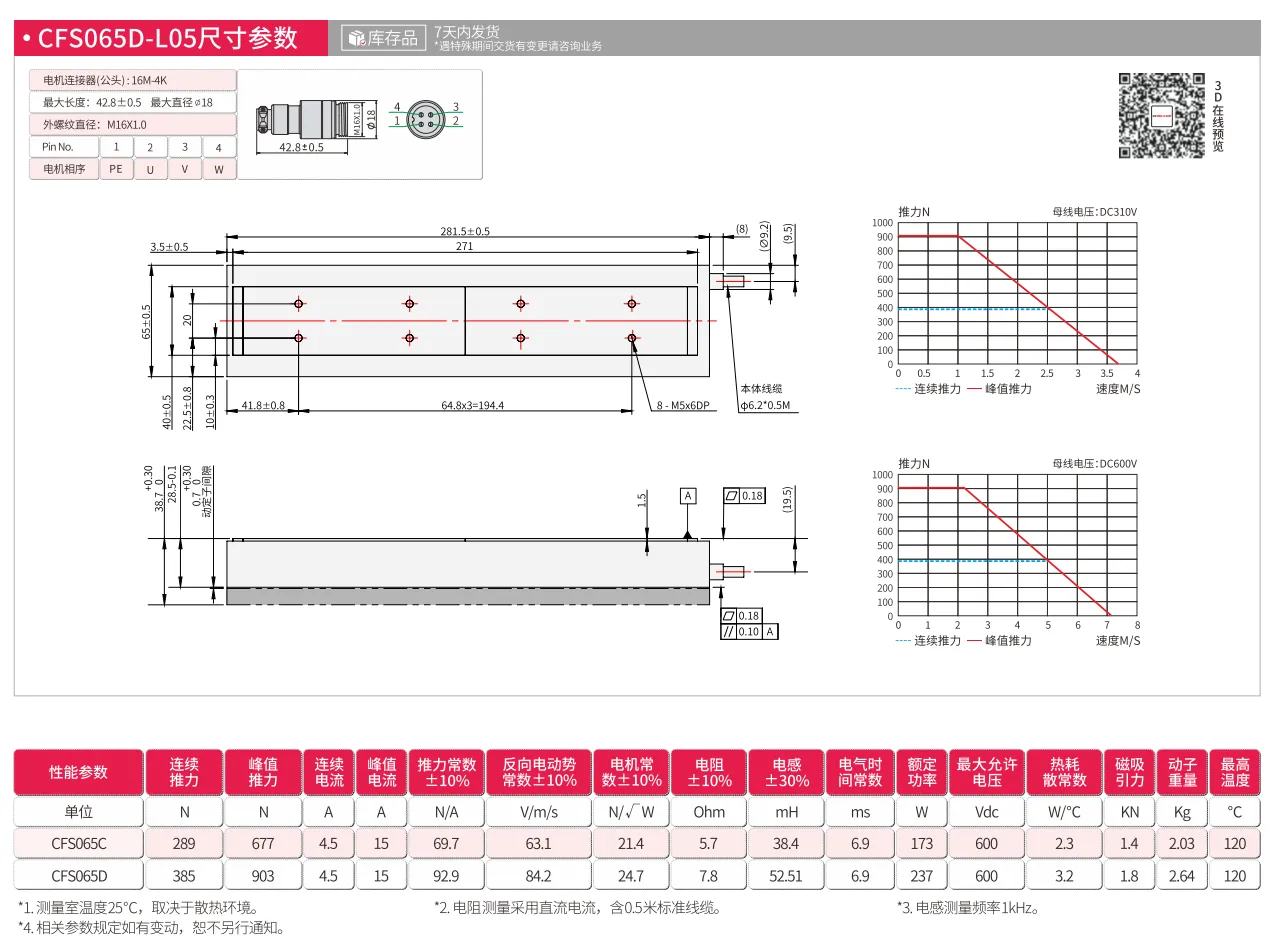

CFS065D

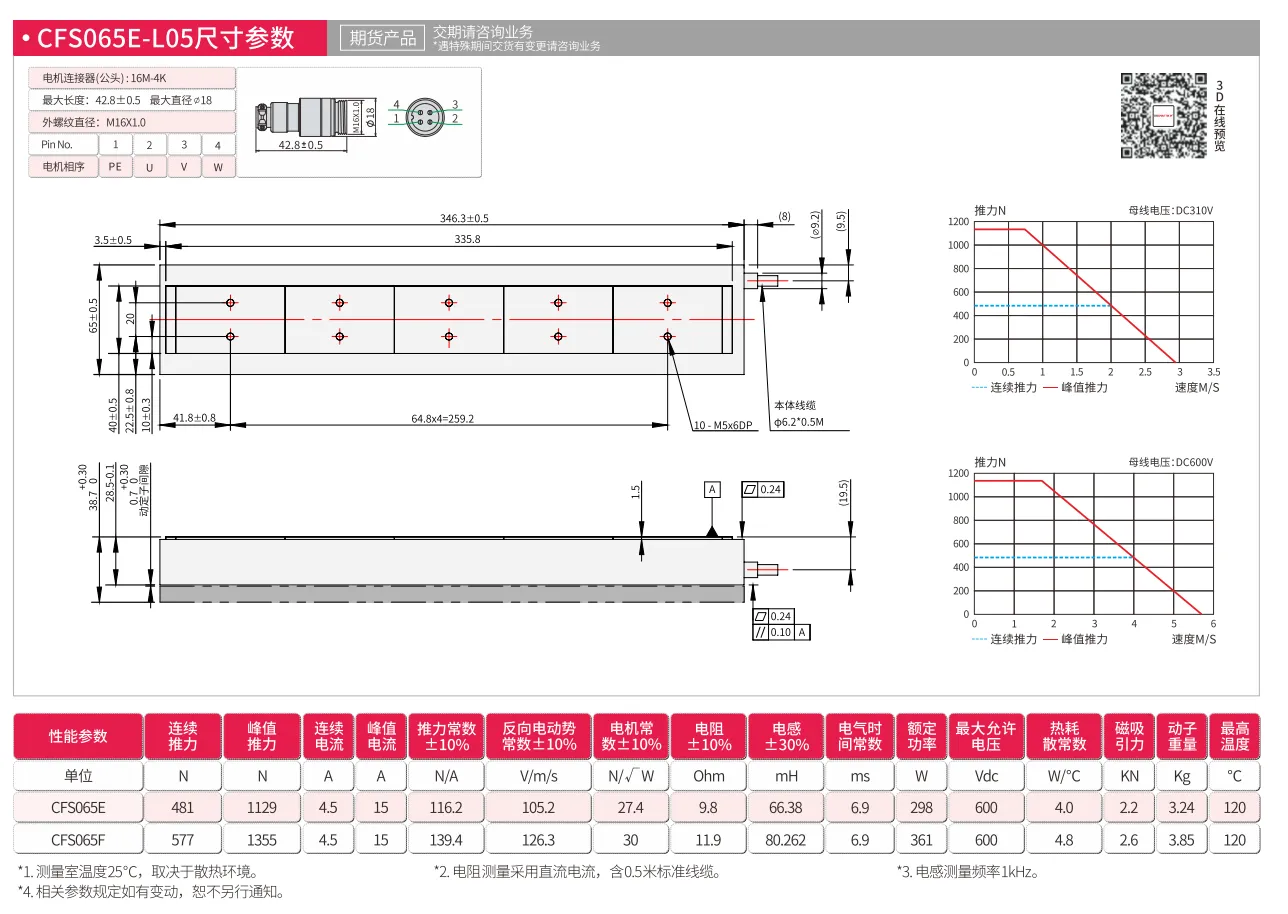

CFS065E

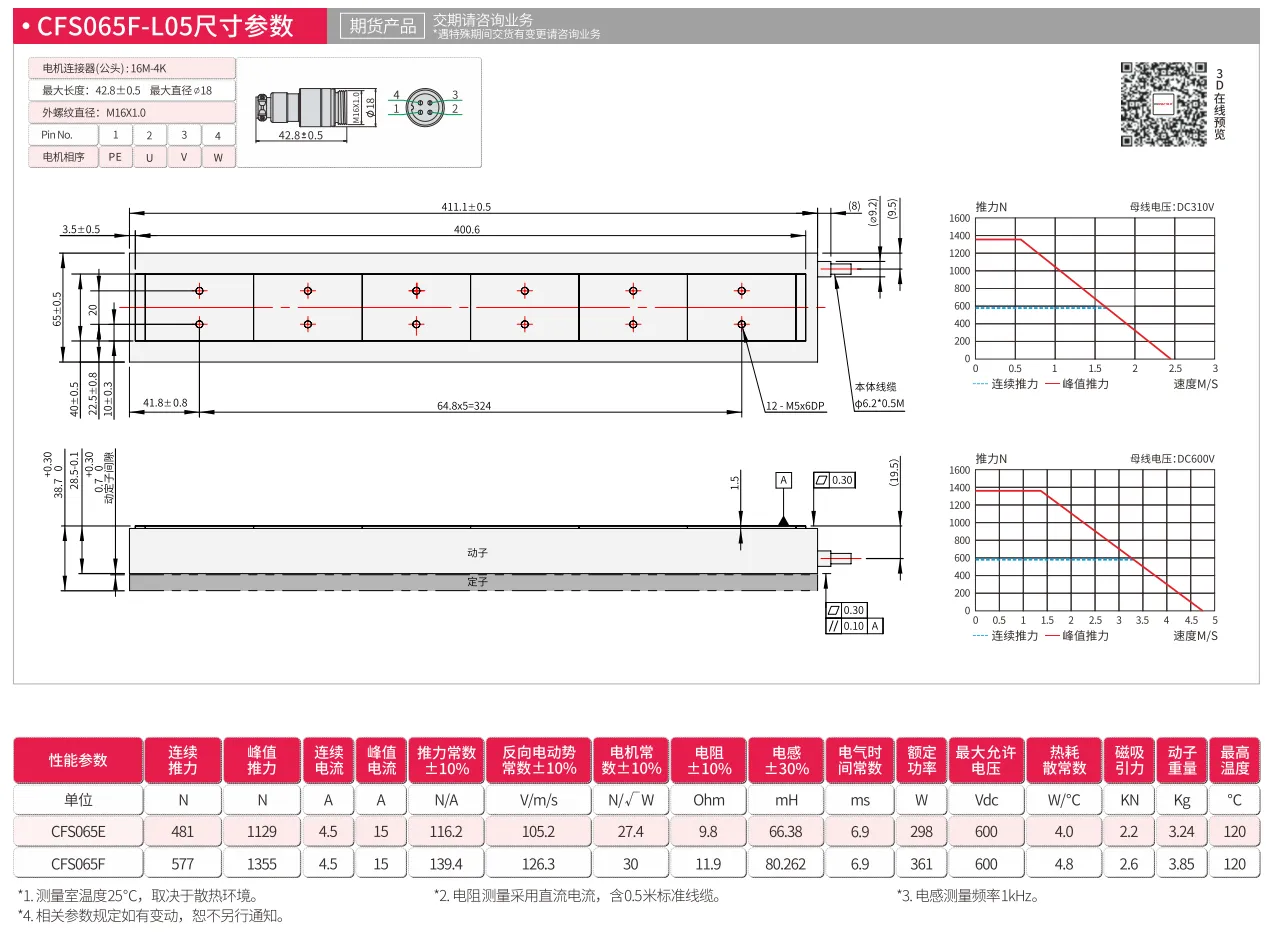

CFS065F
CFS065A
CFS065B
CFS065C
CFS065D
CFS065E
CFS065F
