CH22 Incremental Magnetic Grid Encoder

CH22 Incremental Magnetic Grid Encoder

Features

  • High-performance soft magnetic material
  • The Gap is enlarged
  • Equipped with an LED status indicator light

Applicable Industries

Solar PV Industry SMT Industry Precision Testing Industry Dispensing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Readhead ordering rules
CH
Series
  • CH: Incremental magnetic grid
22
Pole pitch
  • 22：2+2（mm）
A
Output
  • A: ABZ
X
Resolution
  • X: 1.0μm
05
Cable length
  • 05:0.5m
A
Connector
  • A: 9-pin D-type
    Connector

Magnetic Grid Scale Ordering Rules
CH
Series
  • CH: Incremental magnetic grid
22
Pole pitch
  • 22:2+2(mm)
L500
Length
  • L500:500mm
Parameter configuration
Reading head Reading head Voltage and current The fastest response speed Operating temperature Magnetic Grid type Positional accuracy Repeatability accuracy Detect the effective length Coefficient of thermal expansio
CH Series ABZ Differential output

5V±10%，200mA(No-load)

 5m/s 0℃至+65°C linear

±5μm/m(25°C after position compensation)，
±2.5μm (Ideal assembly relationship)
 50m 11±0.5μm/m/℃

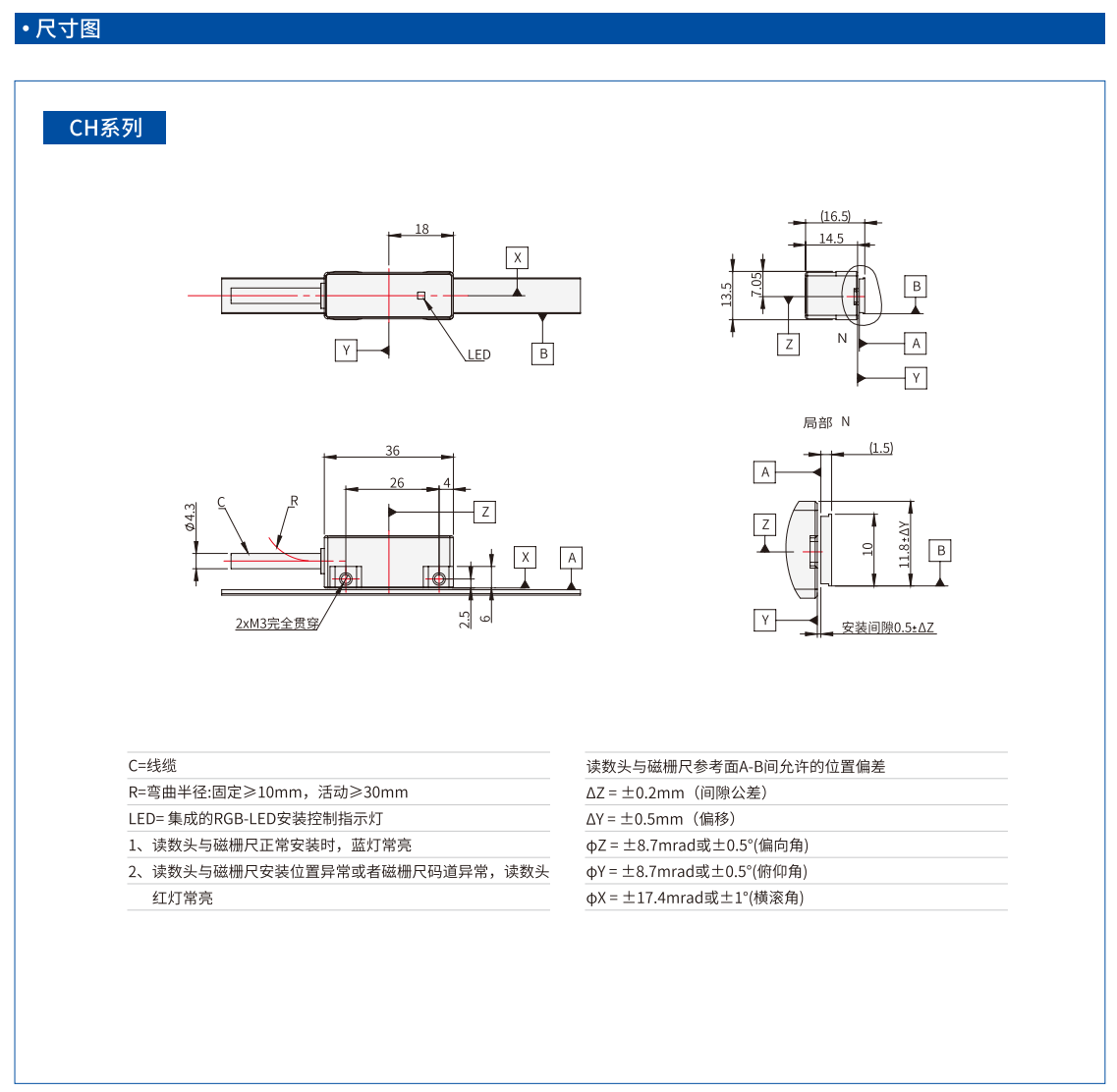

CH22Dimension diagram

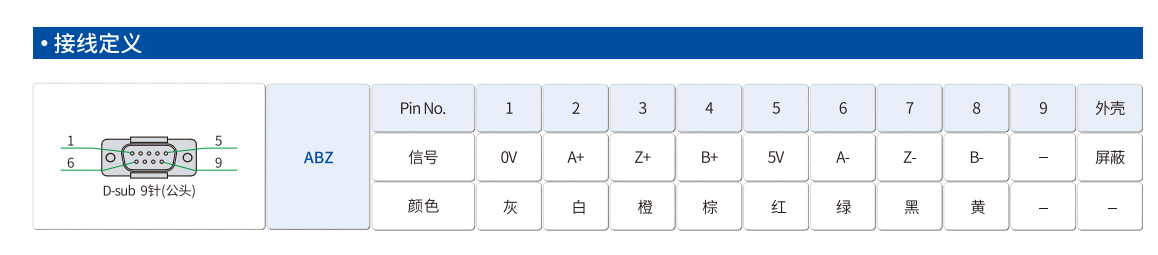

CH22Wiring definition
CH22Dimension diagram
CH22Wiring definition
