CFW135

CFW135

Features

  • Iron Core Technology
  • Ultra-Low Cogging Torque
  • High Acceleration
  • High Speed

Applicable Industries

Semiconductor Industry Display Panel Industry Solar PV Industry Lithium Battery New Energy Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CFW
Series
  • CFW
135
Armature Width
  • 045:69.5mm 090:114.5mm
  • 135:160mm
D
Armature Length
  • D: 384mm  F: 563mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
LD05
Armature Lead
  • L05:0.5m lead(4x13AWG)，
    with 16M-4K connector
Stators order number rules
MFW
Series
  • MFW
135
Stator Width
  • 135: 175mm
L204
Stator Length
  • L204: 204mm
  • L306:306mm
P
Version
  • P：High-Performance Version,
    No Marking, Default Standard Version
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MFW135-L204 204 175 11.2 1 4 51 11.43
MFW135-L306 306 175 11.2 2 6 51 11.43
Parameter configuration
Product Model CFW135A CFW135B CFW135C CFW135D CFW135E CFW135F
Armature Length(mm) 384 563
Continuous Thrust(N) 1680 2520
Peak Thrust(N) 5040 7560

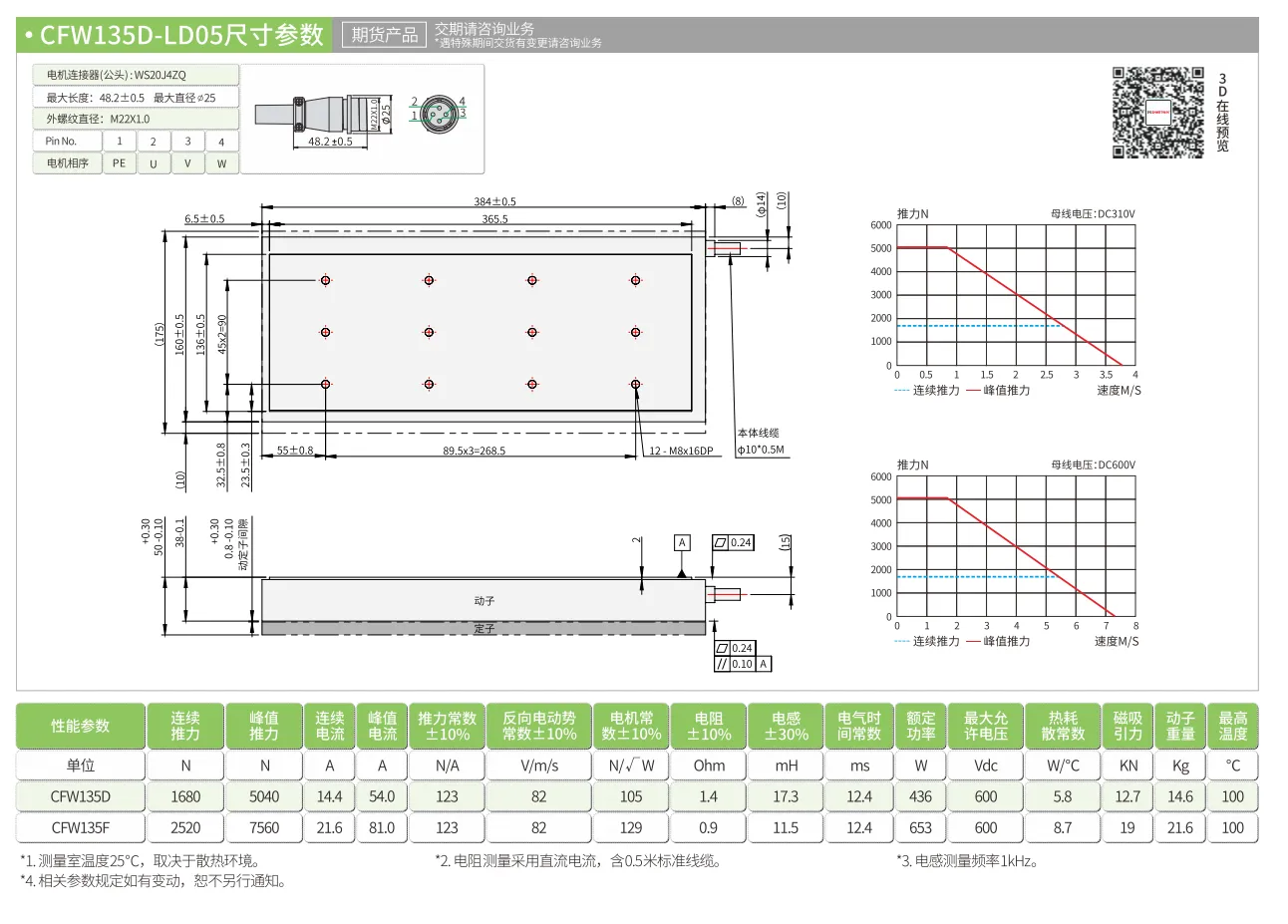

CFW135D

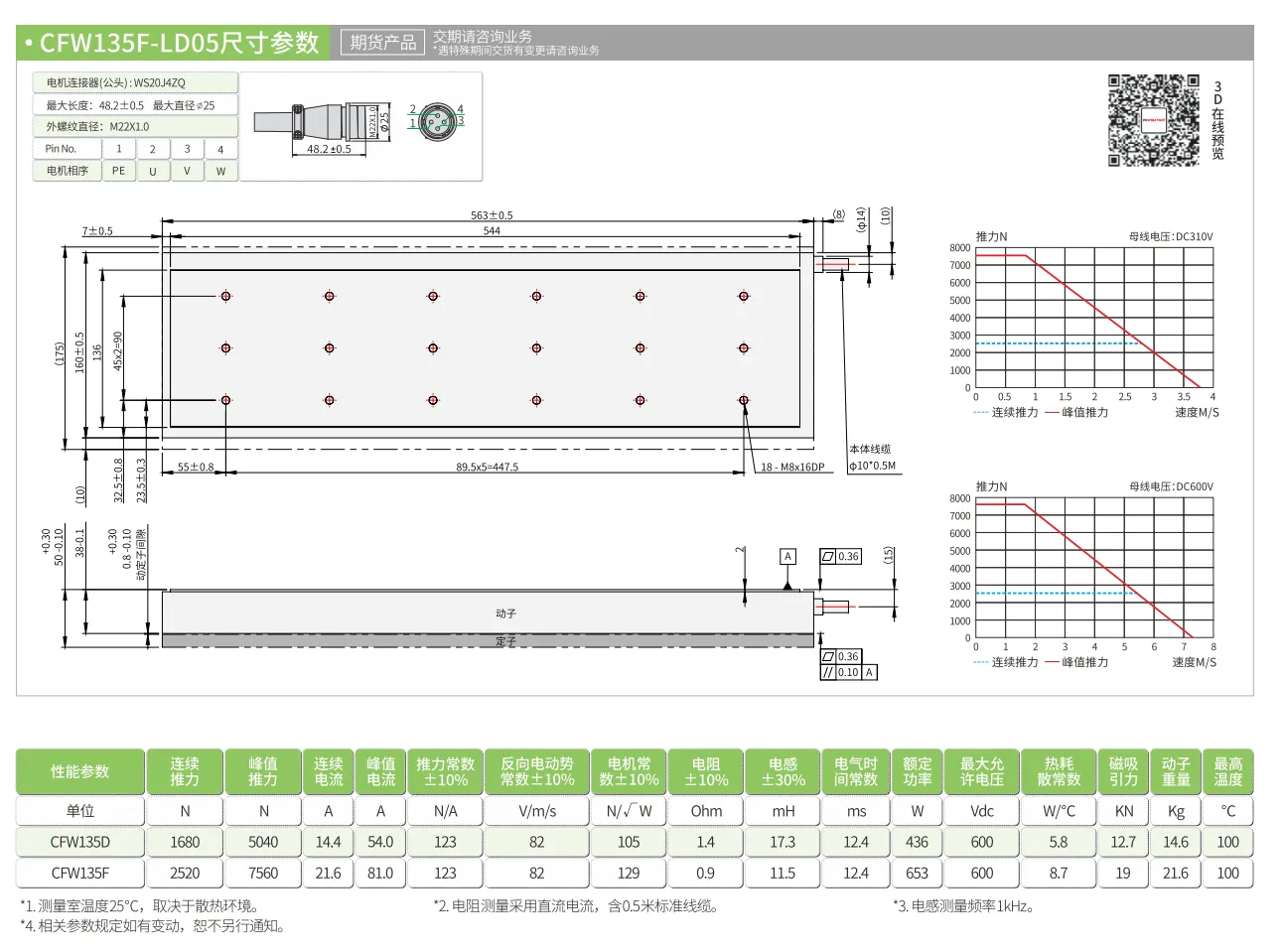

CFW135F
CFW135D
CFW135F
