CFW045

CFW045

Features

  • Iron Core Technology
  • Ultra-Low Cogging Torque
  • High Acceleration
  • High Speed

Applicable Industries

Semiconductor Industry Display Panel Industry SMT Industry Healthcare Industry Digital Printing Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CFW
Series
  • CFW
045
Armature Width
  • 045: 69.5mm090：114.5mm
  • 135:160mm
B
Armature Length
  • B: 205mm  D: 384mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
LC05
Armature Lead
  • LF05:0.5m lead(4x16AWG),
    with WS20J4ZQ connecto
Stators order number rules
MFW
Series
  • MFW
045
Stator Width
  • 045: 75mm
L204
Stator Length
  • L204: 204mm
  • L306:306mm
P
Version
  • P：High-Performance Version，
    No Marking, Default Standard Version
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MFW045-L204 204 75 11.2 1 4 51 4.9
MFW045-L306 306 75 11.2 2 6 51 4.9
Parameter configuration
Product Model CFW045A CFW045B CFW045C CFW045D CFW045E CFW045F
Armature Length(mm) 205 384
Continuous Thrust(N) 280 560
Peak Thrust(N) 840 1680

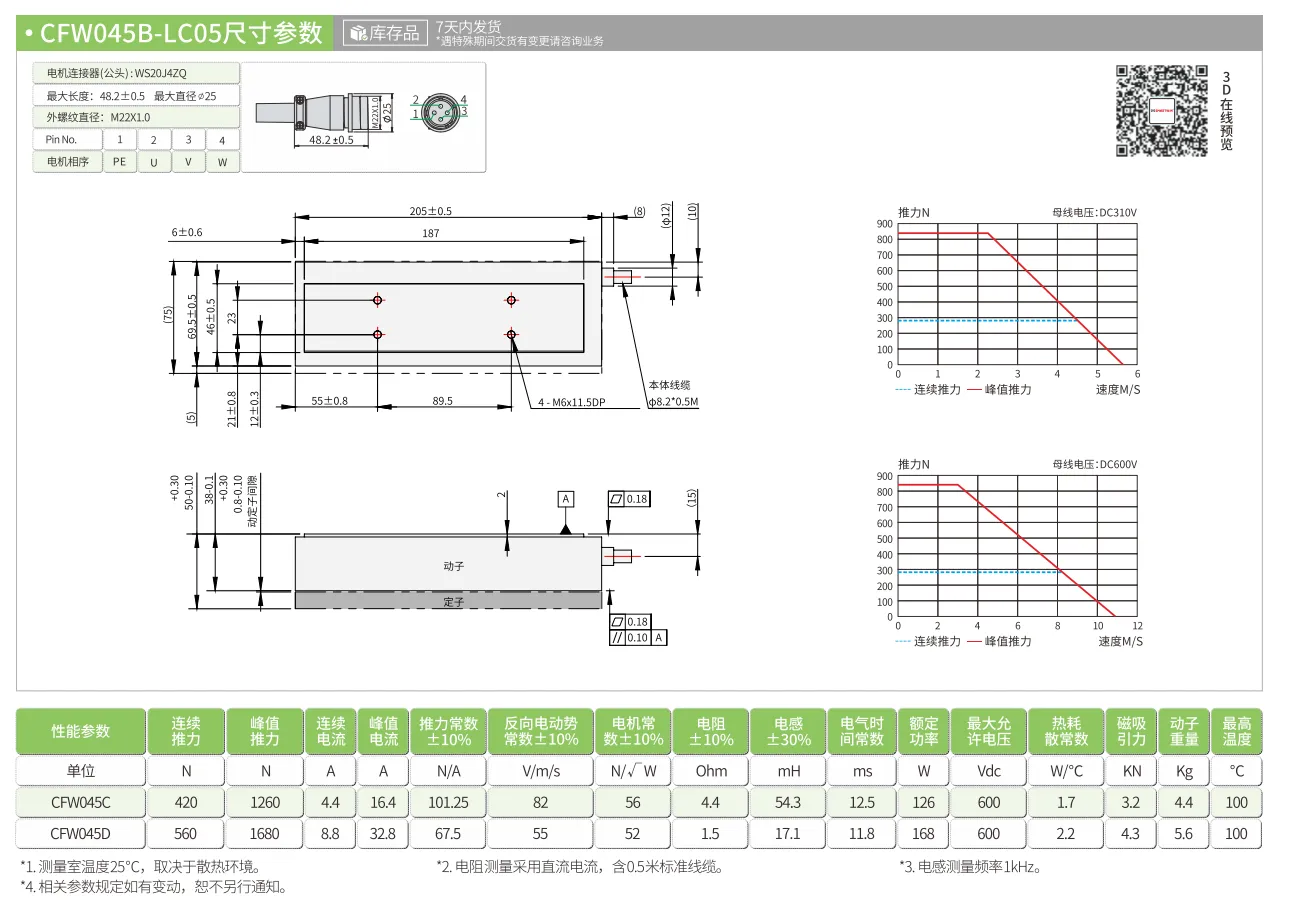

CFW045B

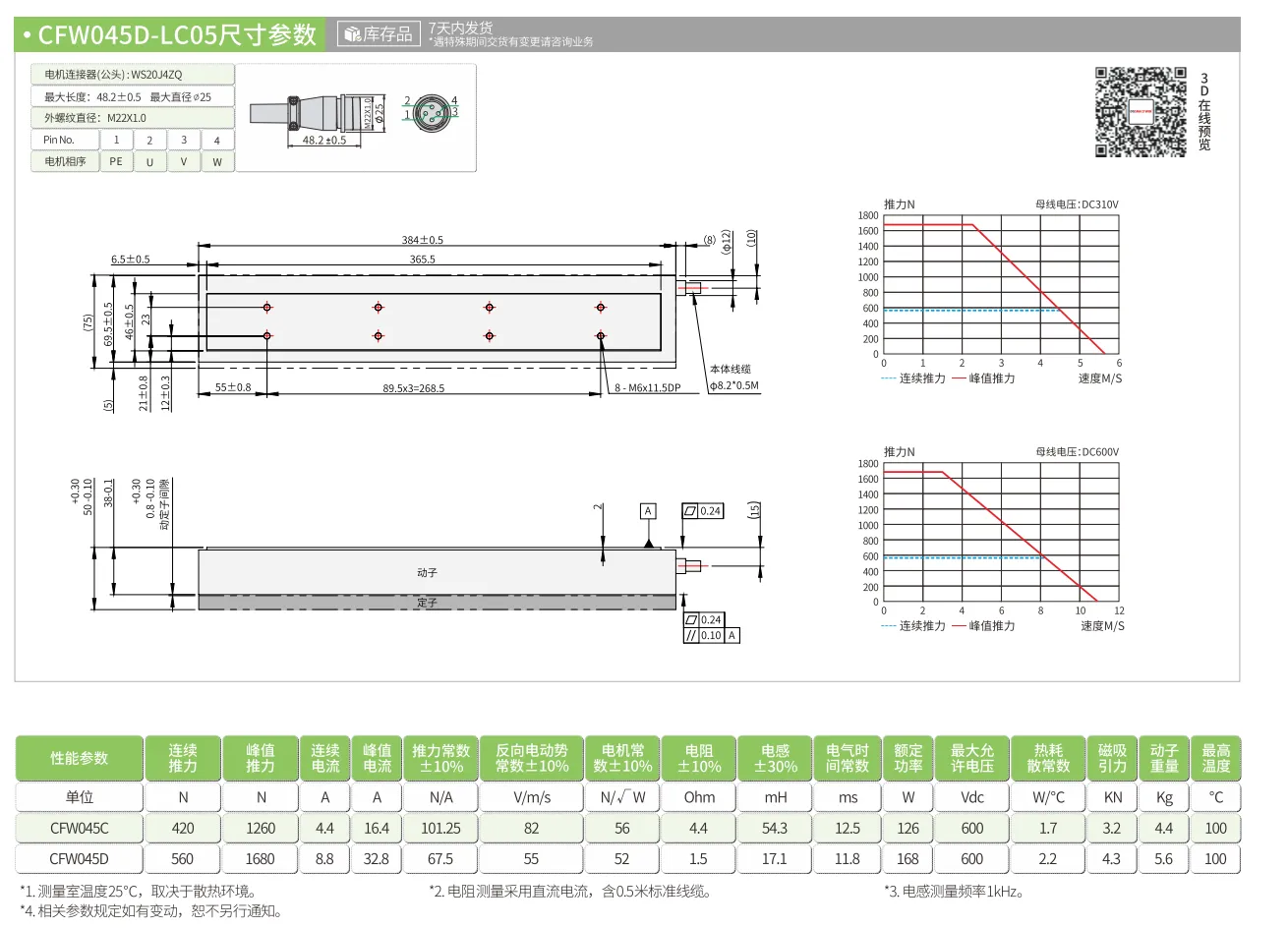

CFW045D
CFW045B
CFW045D
