CMW060 Iron Core Linear Motor

CMW060 Iron Core Linear Motor

Features

  • Iron Core Technology
  • Low Cogging Torque
  • High Acceleration
  • Compact Size

Applicable Industries

Display Panel Industry Solar PV Industry Lithium Battery New Energy Industry Healthcare Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Online Conversation
Movers order number rules
CMW
Series
  • CMW
060
Armature Width
  • 060: 60mm  075: 75mm
  • 095:95mm 120: 120mm
B
Armature Length
  • B: 102mm  D: 188mm
  • F: 270mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A, B, C, D, etc.
L05
Armature Lead
  • L05:0.5m lead(4x20AWG)，
    with 16M-4K connector
Stators order number rules
MMW
Series
  • MMW
060
Stator Width
  • 060: 60mm
L96
Stator Length
  • L96: 96mm
  • L144: 144mm
Motor ModelLength (LC)WidthHeightAZMagnetic Pole PitchMass
UnitmmmmmmPCSPCSmmkg/m
MMW060-L9696608.814243.3
MMW060-L144144608.826243.3
Parameter configuration
Product ModelCMW060ACMW060BCMW060CCMW060DCMW060ECMW060F
Armature Length(mm)102188270
Continuous Thrust(N)106212305
Peak Thrust(N)374649924

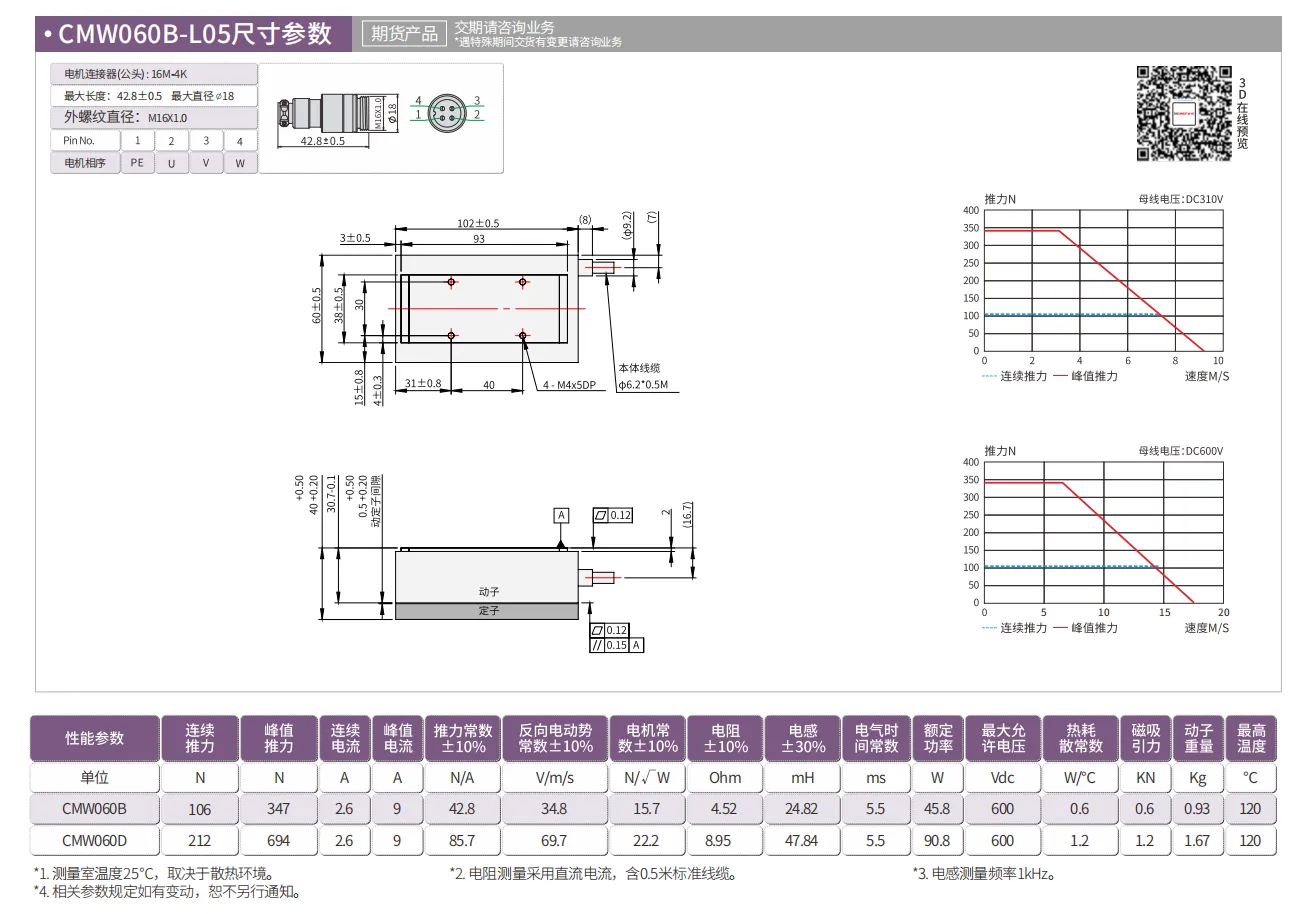

CMW060B

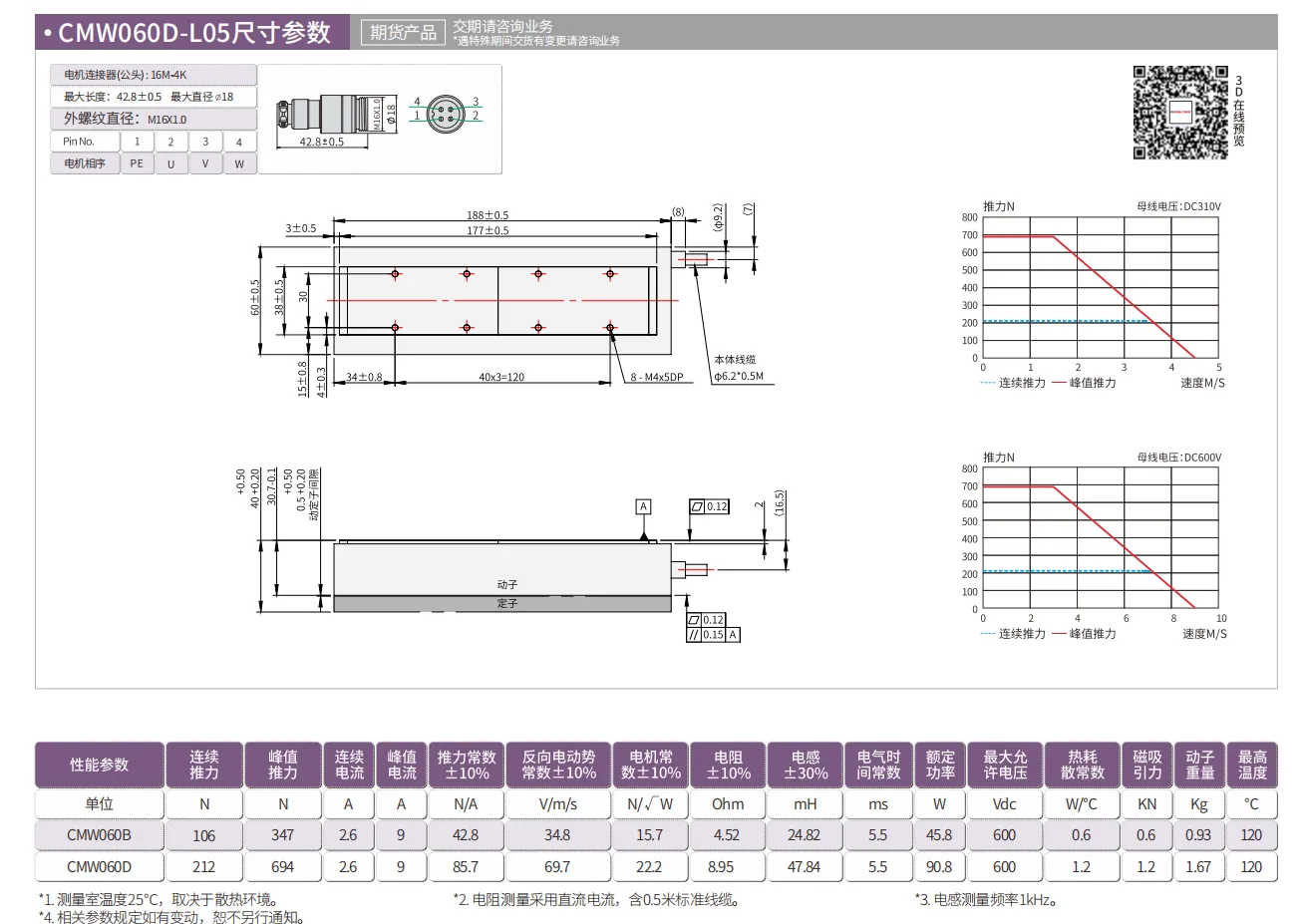

CMW060D

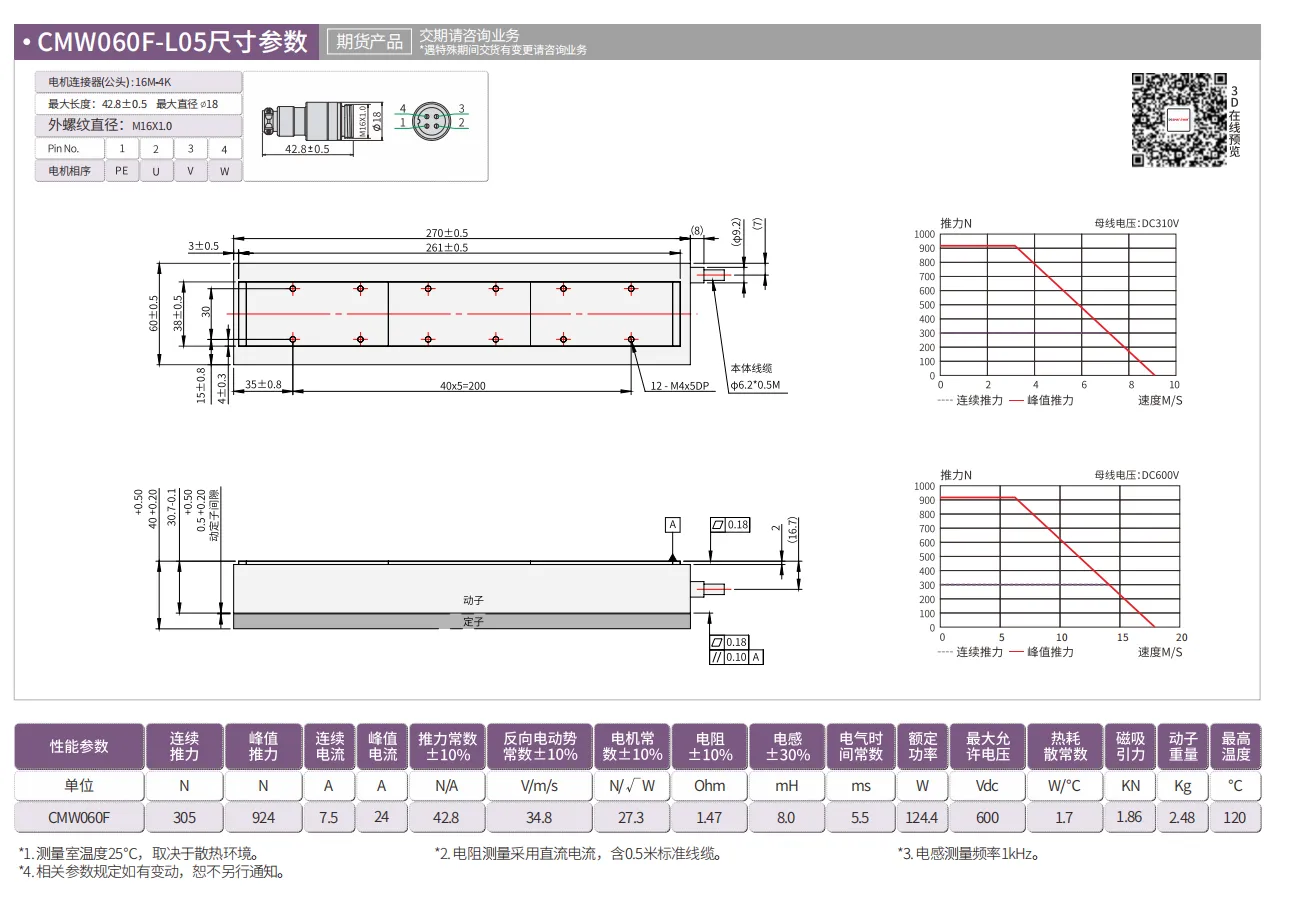

CMW060F
CMW060B
CMW060D
CMW060F
