CMW075

CMW075

Features

  • Coreless Technology
  • Low CoggingHigh
  • Acceleration
  • Compact Size

Applicable Industries

Semiconductor Industry Display Panel Industry Lithium Battery New Energy Industry SMT Industry Healthcare Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CMW
Series
  • CMW
075
Armature Width
  • 060: 60mm  075: 75mm
  • 095:95mm 120: 120mm
B
Armature Length
  • B: 102mm  D: 188mm
  • F: 270mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A、B、C、D etc.
L05
Stator Lead-out
  • L05:0.5m lead-out(4x20AWG)，
    compatible with 16M-4K connector
Stators order number rules
MMW
Series
  • MMW
075
Armature width
  • 075: 75mm
L96
Armature length
  • L96: 96mm
  • L144: 144mm
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MMW075-L96 96 75 8.8 1 4 24 4.2
MMW075-L144 144 75 8.8 2 6 24 4.2
Parameter configuration
Product Model CMW075A CMW075B CMW075C CMW075D CMW075E CMW075F
Armature Length(mm) 102 188 270
Continuous Thrust(N) 154 296 444
Peak Thrust(N) 505 1009 1346

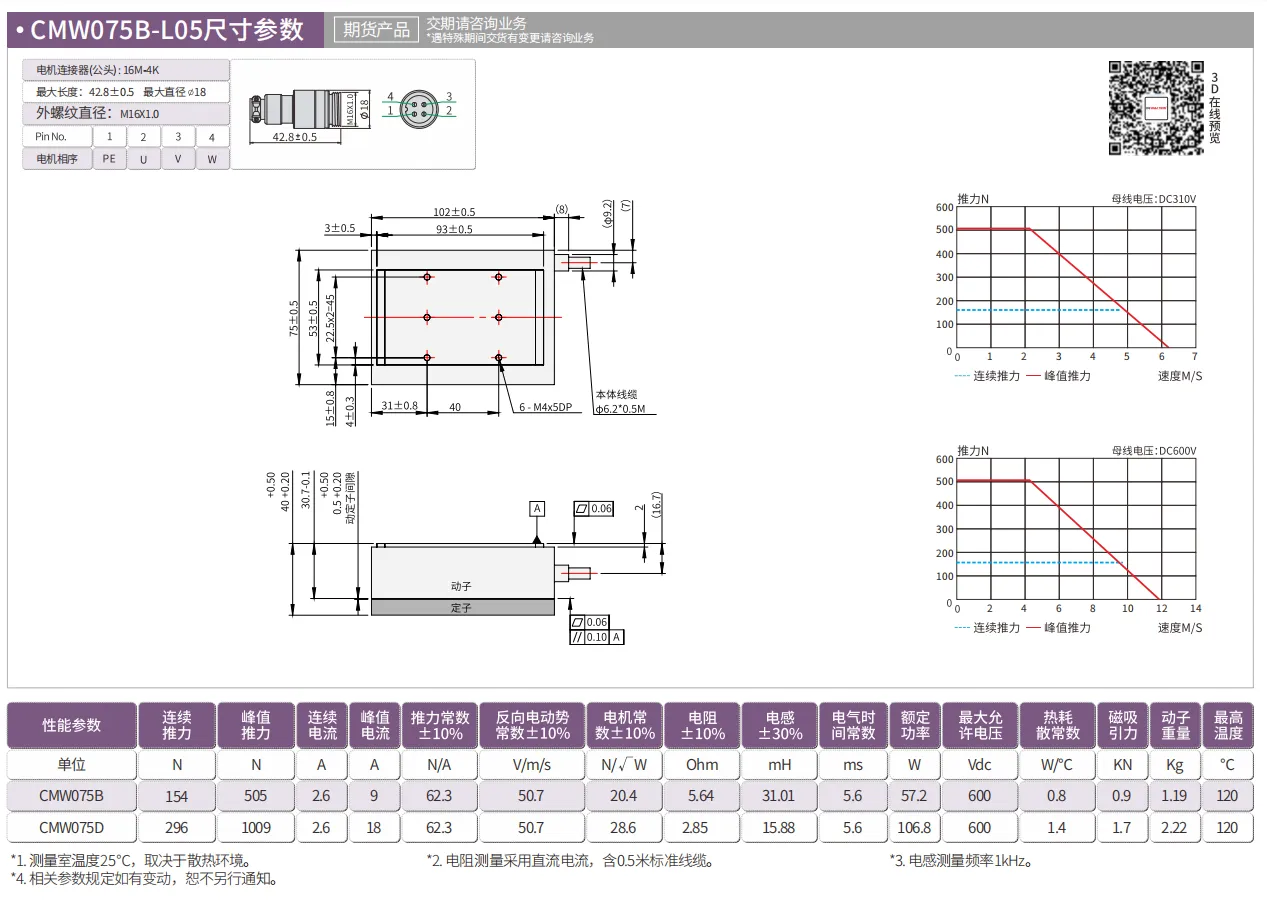

CMW075B

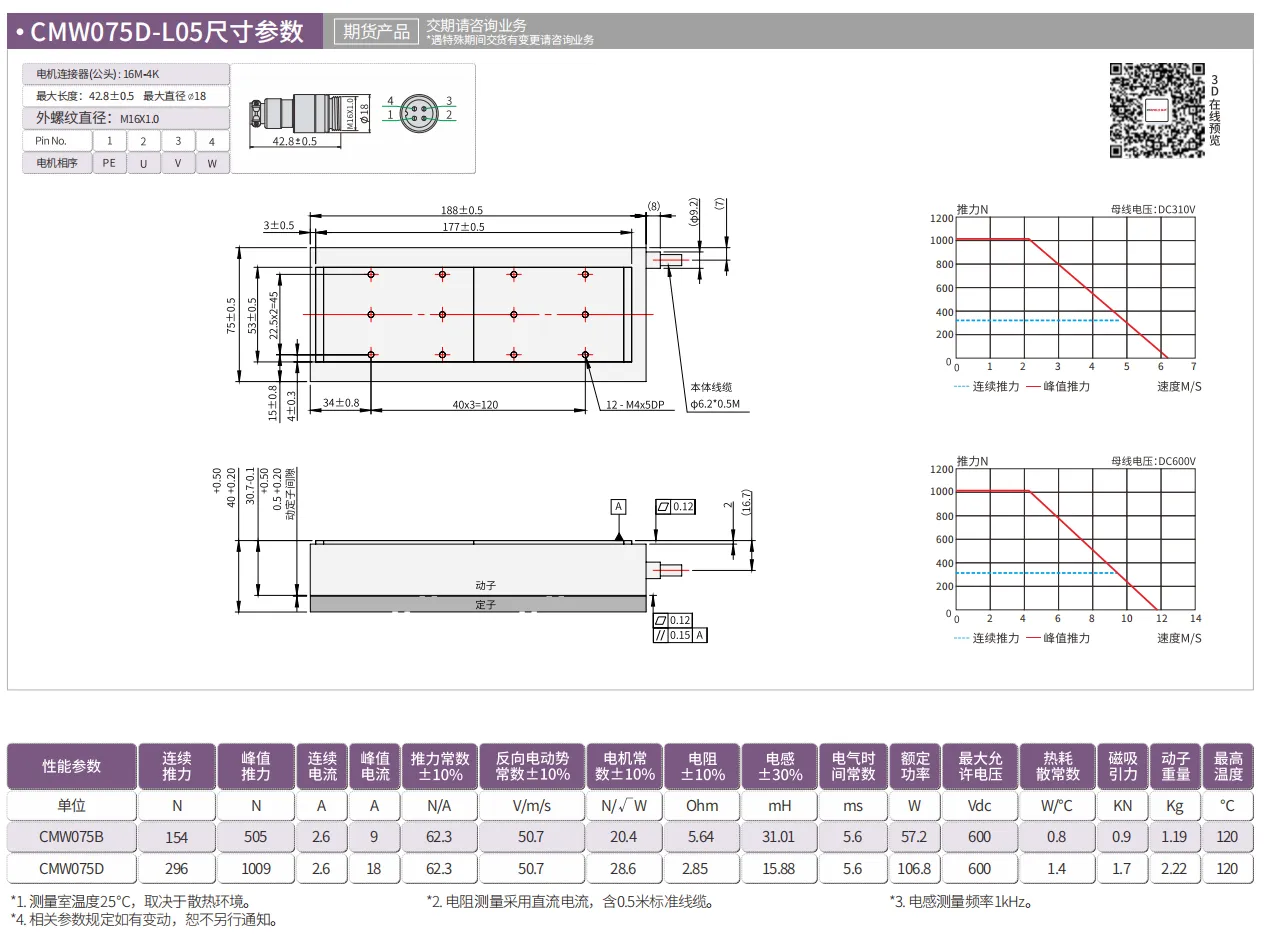

CMW075D

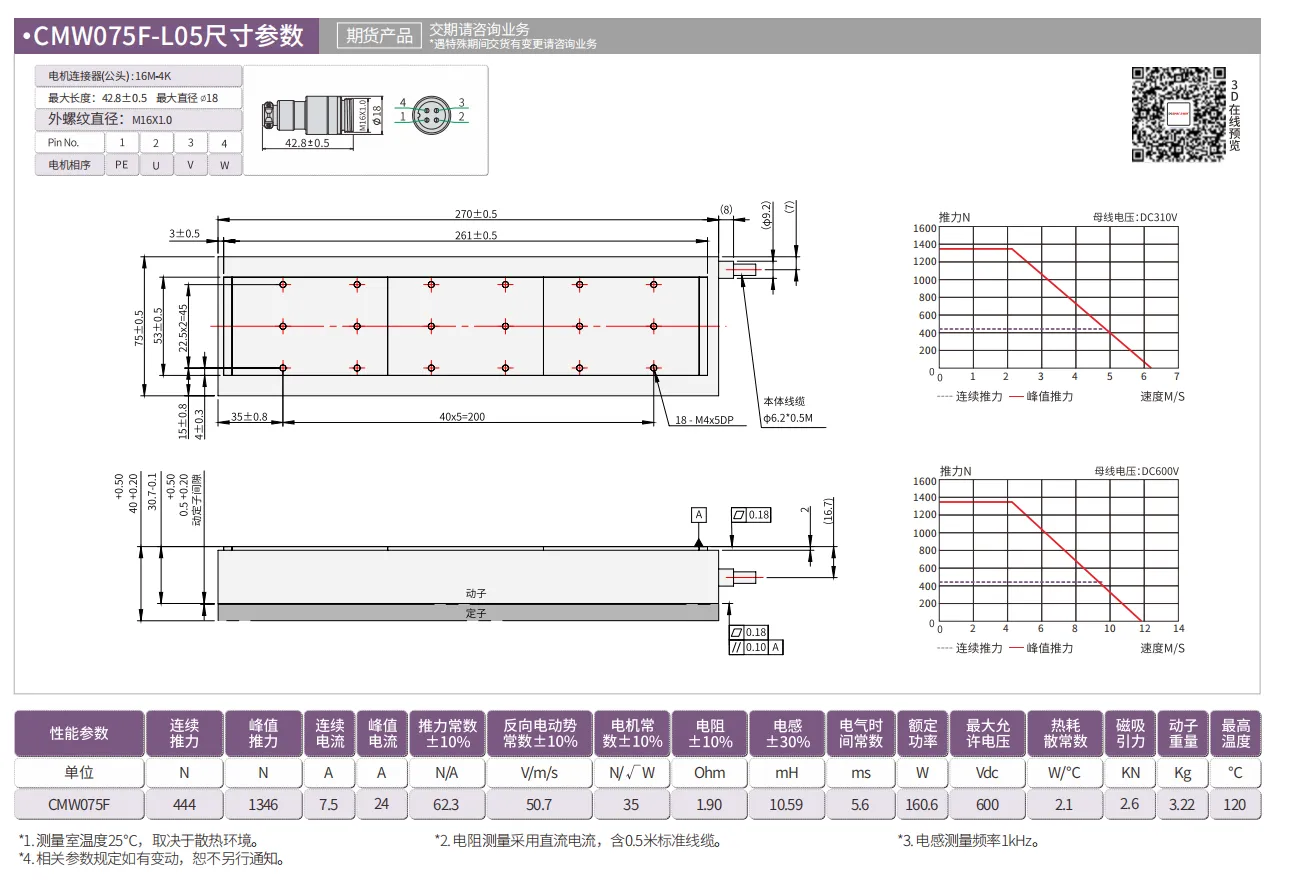

CMW075F
CMW075B
CMW075D
CMW075F
