Home Iron-Core Linear Motor CJM CJM100
CJM100

CJM100

Features

  • Iron Core Technology
  • Low Cogging Torque
  • High Acceleration
  • Compact Size

Applicable Industries

Display Panel Industry Solar PV Industry Lithium Battery New Energy Industry SMT Industry Healthcare Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Movers order number rules
CJM
Series
  • CJM
100
Armature Width
  • 030:50mm 050:75mm
  • 080:100mm 100:125mm
B
Armature Length
  • B: 96mm  D: 176mm
A
Winding Code
  • *standard winding
    "unmarked"
  • A,B,C,D etc.
LA05
Armature Lead
  • L05:0.5m lead
    with 16M-4K connector
Stators order number rules
MJM
Series
  • MJM
100
Stator Width
  • 100: 125mm
L80
Stator Length
  • L80: 80mm
  • L200: 200mm
Motor Model Length (LC) Width Height A Z Magnetic Pole Pitch Mass
Unit mm mm mm PCS PCS mm kg/m
MJM100-L80 80 125 10.3 1 4 20 8.13
MJM100-L200 200 125 10.3 4 10 20 8.13
Parameter configuration
Product Model CJM100A CJM100B CJM100C CJM100D CJM100E CJM100F
Armature Length(mm) 96 176
Continuous Thrust(N) 223.3 446.7
Peak Thrust(N) 704 1410

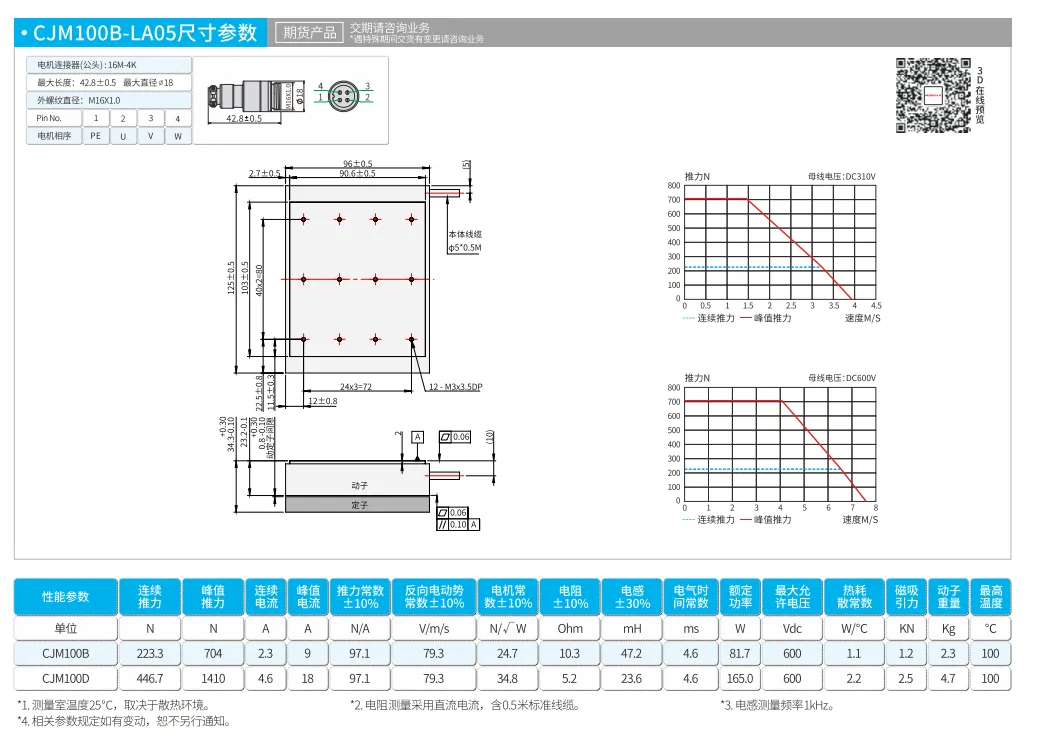

CJM100B

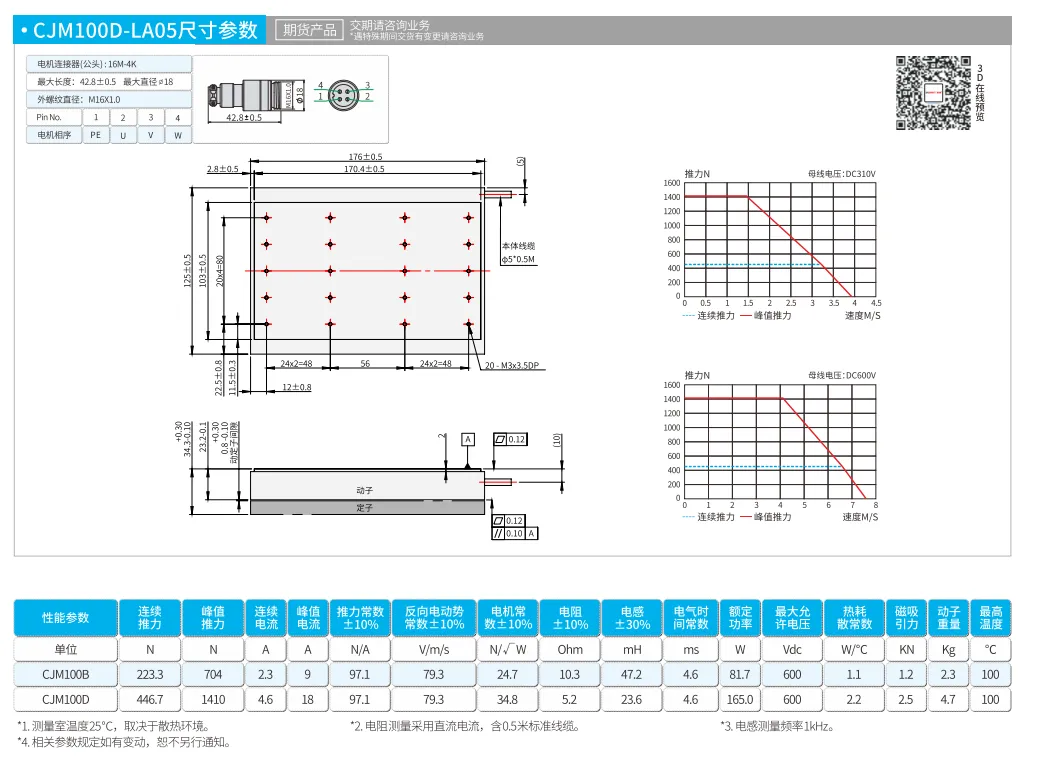

CJM100D
CJM100B
CJM100D
