Invitation | Unlock the 'Energy Efficiency Code' of Photovoltaic Equipment with the Power of Smart Manufacturing

Product Introduction

Linear Motor Modules of Smartwin

Product Categories:

BMS Series Linear Motor Modules

BMW Series Linear Motor Modules

LMS Series Linear Motor Modules

Application Fields:

Suitable for semiconductor chip production and inspection, medical equipment inspection, new energy industry, laser precision machining, liquid crystal panel production and inspection, lithium battery manufacturing, 3C electronics assembly and inspection, assembly lines, etc.

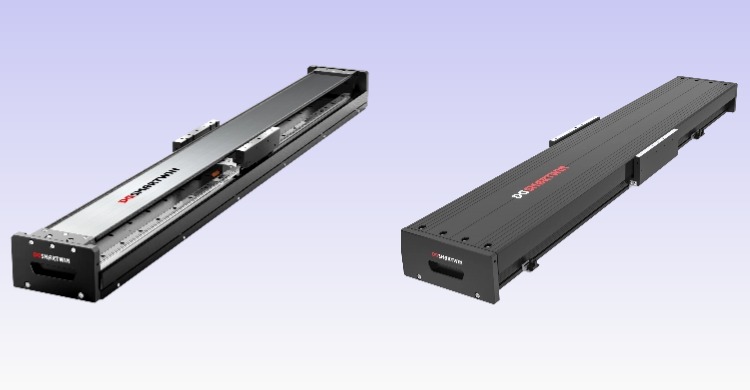

Linear Motor Modules of Smartwin

Product Features:

● High Speed: Maximum speed 5m/s, maximum acceleration  5G;

● High Precision: Full closed-loop control using linear encoders enables high positioning accuracy; optical encoders have a repeatability of ±1μm, and magnetic encoders have a repeatability of ±3μm;

● Low noise and low particle emission;

● Multi-slide operation, enabling independent movement of multiple movers;

● Modular production and assembly, cost-effective;

● Long stroke: Single base can be up to 6 meters long, with unlimited splicing to meet customized long-stroke requirements; high acceleration/deceleration and followability: Slides use aluminum components to reduce the mass of movable parts, enabling 5G high acceleration/deceleration; meanwhile, the lightweight and high rigidity of the slides ensure high followability;

● No noise and no dust generation during operation, achieving clean production;

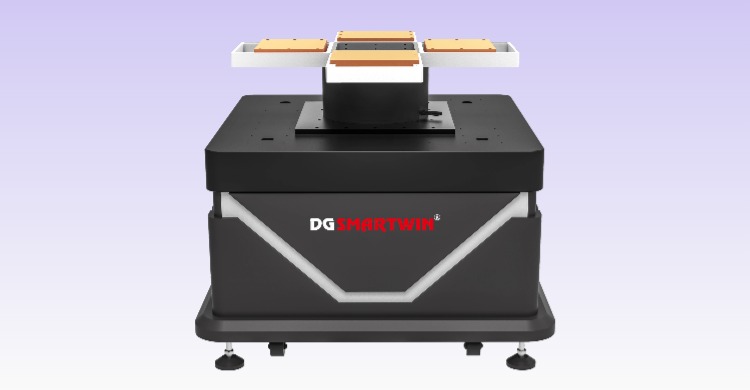

DD Motors of  Smartwin

Product Categories:

DDA Series, AKS High-Voltage Servo Drives

Application Fields:

Silkscreen modules in the photovoltaic industry

Product Features:

● 90° rotation can be achieved in 180ms;

● Repeatability of ±2 Arc.sec;

● No transmission mechanism, fast response;

● Convenient hollow shaft, suitable for design and assembly;

● No gear wear, long service life;

● Maintenance-free, small volume, space-saving;

● High-rigidity cross-roller bearings, stable performance;

● Direct drive, no additional linkage mechanism, high efficiency utilization;

● Simple debugging, strong parameter consistency, saving debugging time;

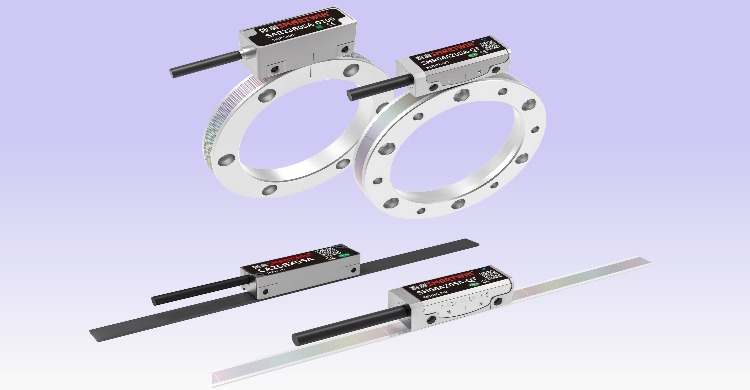

Encoder Measurement System of Smartwin

Application Fields:

Suitable for various automation industries, optical communications, lithium batteries, photovoltaics, laser industry, machine tool industry, medical, precision measurement, etc.

Product Features:

● Compact design;

● High response speed, grating pitch diversity, high precision, multiple resolutions, suitable for various application scenarios;

● Insensitive to temperature changes, no mechanical clearance;

● LED status indicator;

● Easy to install and disassemble;
