DH09 DD Electric Motors

DH09 DD Electric Motors

Features

  • Direct Drive Brushless Motor
  • High Torque Density
  • Low Cogging Effect
  • Smooth Operation at Low Speeds
  • Space-Saving

Applicable Industries

Display Panel Industry Solar PV Industry Lithium Battery New Energy Industry SMT Industry Healthcare Industry
Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Product Manual Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Service Support Dongguan SMARTWIN  Manufacturing Technology Co.,LTD. Call+86 400 807 1566
Online Consultation
Send Email
Order number rules
DH
Series
  • DH
09
Frame Size
  • 09：245mm
2
Rotor Stacking Length
  • 2 = Intermediate Rotor Stacking
  • 3 = Long Rotor Stacking
A
Winding Code
  • *Standard Winding
    "Unmarked"
  • A, B, C, D, etc.
RS20
Encoder Code
  • RS20: Analog Signal (Hengstler)
  • R52N = Analog Signal (Domestic)
  • R52L = Digital Signal (Domestic)
  • E325 = Absolute Value (Heidenhain)
LD05
Lead Length
  • LC05: 0.5 Meter Lead (4x16 AWG)，
    Compatible with WS20J4ZQ Connector
01
Customization
  • 1
    • *Standard Type
      "Unmarked"
Parameter configuration
Motor Model DH092 DH093
Motor Length (L) 245.6 295.6
Center Hole Diameter (mm) 60/70 60/70
Continuous Torque (N·m) 102.6 140.8
Peak Torque (N·m) 246.2 367.2

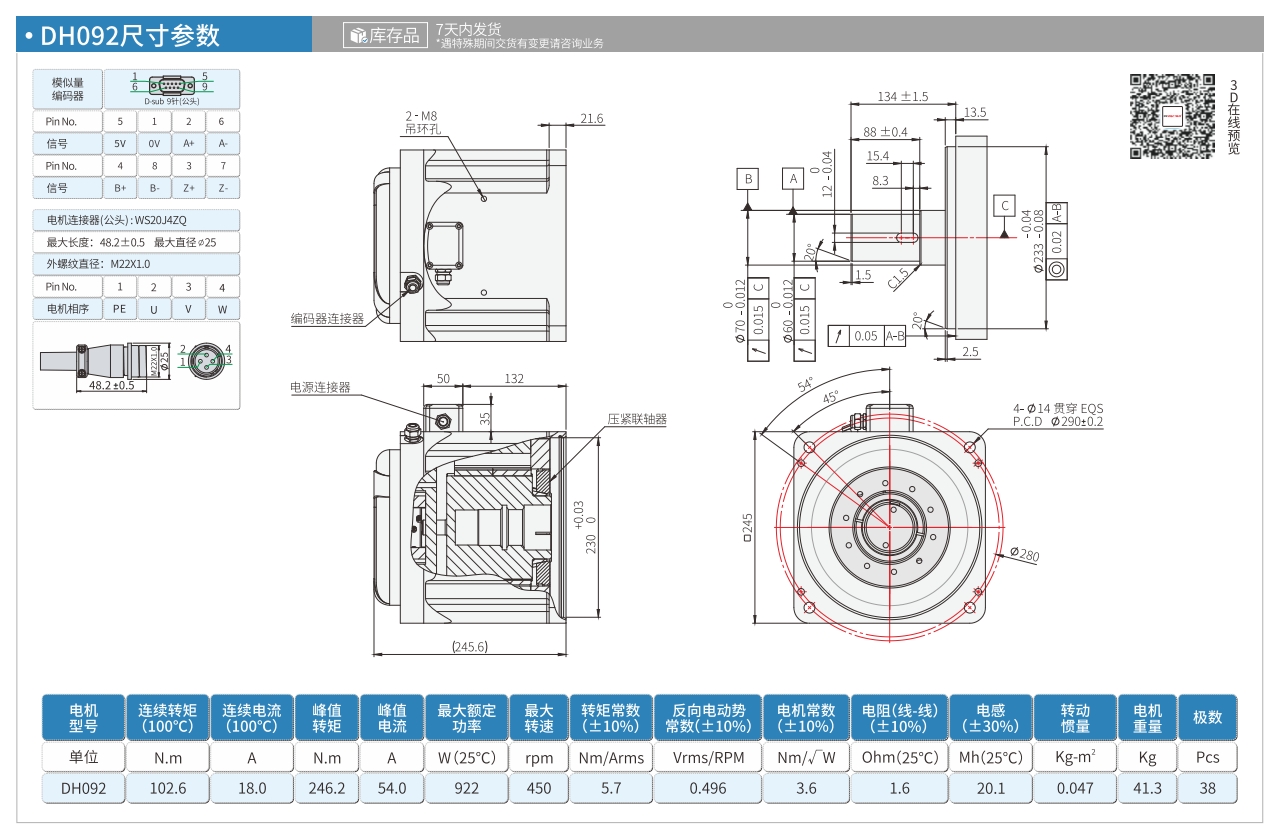

DH092

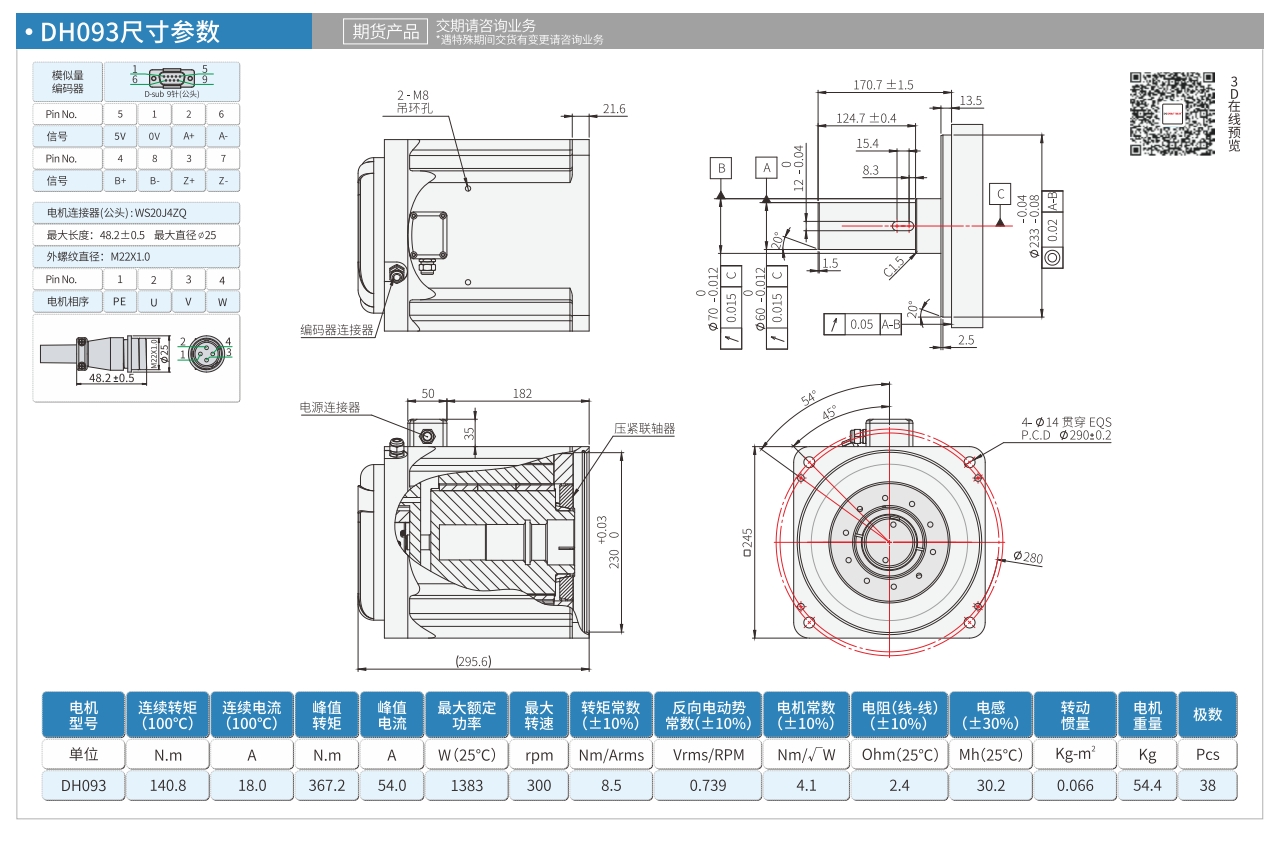

DH093
DH092
DH093
