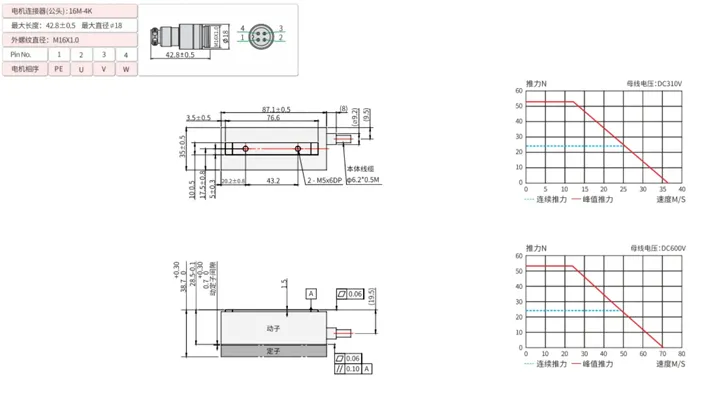

Linear Motor Solutions
We provide iron-core linear motor and ironless linear motor product solutions.
Iron-core
linear motor adopts bilateral iron-core technology; it has the characteristics of
high
speed, high acceleration and deceleration,
corresponding to long stroke, uniform speed, stability, cleanliness, silence,
maintenance-free, etc.The coreless linear motor adopts coreless technology; it has
the
characteristics of ultra-low cogging force, high rigidity,
high thrust, high speed, high acceleration and deceleration, compact size, good
dynamic
curve function, and is suitable for vertical axis.
High speed and high precision
5m/s , ±3um
Directly drives the load, fully closed-loop direct drive, long-stroke design
High acceleration
≥0.2g
Significantly enhanced acceleration with lightweight load, low thermal
conductivity, and high positioning accuracy.
Continuous thrust
24N-1322N
Significantly enhanced acceleration with lightweight load, low thermal
conductivity, and high positioning accuracy.
Peak thrust
54N-3104N
Customized product solutions with configurable specifications and parameters

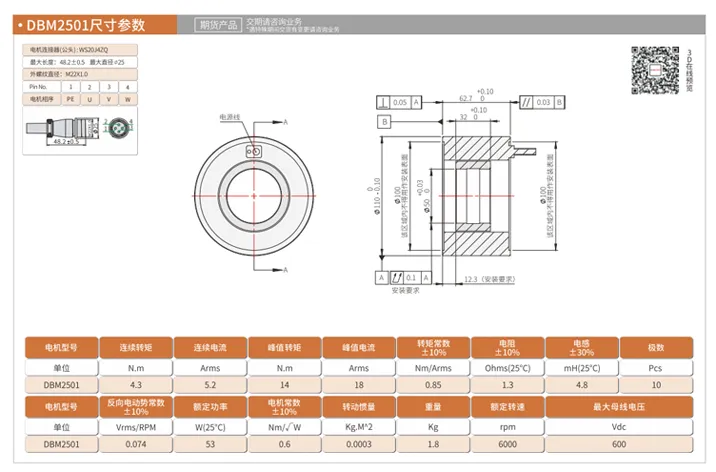

Direct Drive Motor Solutions
We provide frameless direct drive motors, modular direct drive motors, and torque motor
product solutions. Frameless direct drive motors simplify product design complexity,
enabling rapid and efficient customization for tailored designs, and facilitating
straightforward installation in compact spaces.
Modular direct-drive motors feature an advanced electromagnetic design that saves space
and delivers up to 50% higher torque density compared to traditional servo motors of
equivalent size.
Torque motors possess high rigidity. Directly connecting them to the load allows a
greater portion of this rigidity to be effectively transferred to the load, thereby
achieving ideal control precision.
Continuous current
5.2~19.6A
Provides stable and reliable torque output during continuous operation.
Continuous torque
4.3~142.8N.m
Enhance equipment stability, load capacity, and efficiency during extended
operation.
Peak torque
14~442N.m
At a specific rotational speed, it can deliver greater instantaneous rotational
force.
Back EMF constant
1.6V/m/s
Customized product solutions with configurable specifications and parameters

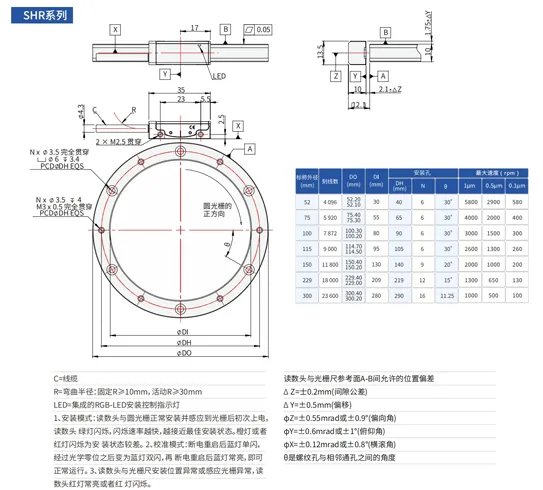

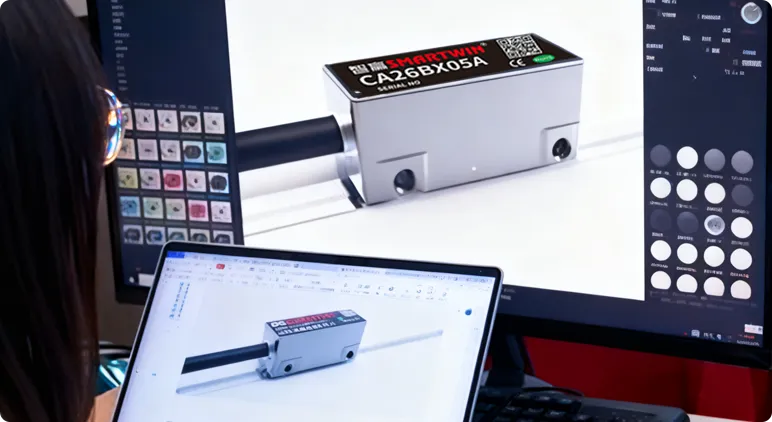

Encoder Solutions
ZhiYing encoders are position sensors used in various mechanical systems and automated
equipment. By providing micrometer-level precision positioning, they enable systems to
achieve more accurate control.
Operating temperature
0℃~+65℃
Ensure stable operation under extreme temperature conditions
The fastest response speed
5m/s
Achieve high dynamic response control, minimizing lag and error.
Positional accuracy
±2.5~±5μm/m
Reduce errors and enhance the precision of machining and motion control.
Repeatability accuracy
±2.5μm
Enhance system stability and consistency
